TX6-DM Big Brake Truck Front Brake Kit
Prod #: 140-17610-R
Price: $2,777.54
Front Brake Kit — 140-17610-R


Kit Contents

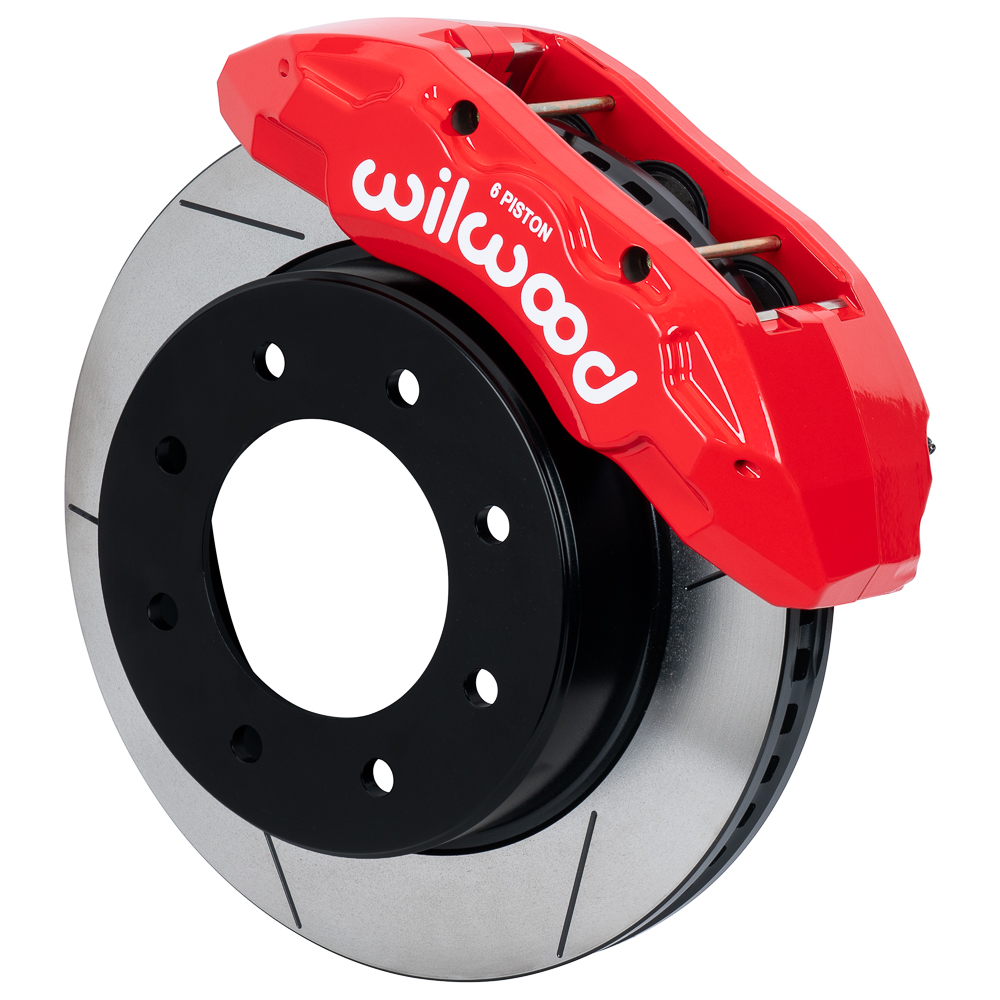

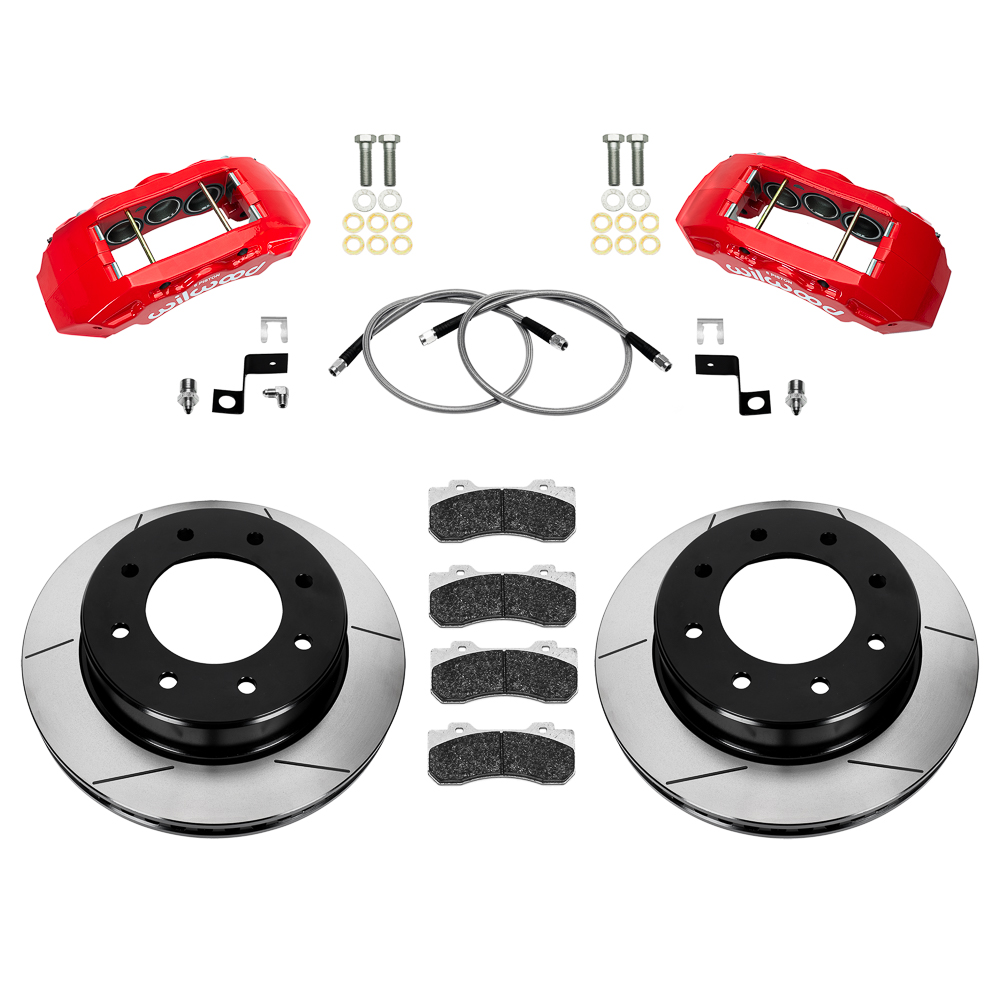

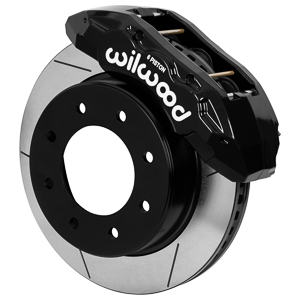

Wilwood TX6-DM Big Brake Truck Front Brake Kit Parts Laid Out - Red Powder Coat Caliper - GT Slotted Rotor Wilwood TX6-DM Big Brake Truck Front Brake Kit Parts Laid Out - Red Powder Coat Caliper - GT Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Lug
Caliper Type: 6 - Red Powder Coat
Rotor Diameter: 15.00
Min Wheel Diameter Req'd*: 20
*This Brake Kit may fit 20-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545115901

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


TX6-DM Big Brake Truck Front Brake Kit

Wilwood’s Tactical Extreme TX6-DM Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6-DM direct mount six-piston calipers and massive 15.00” GT slotted alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include all the necessary hardware to complete the installation. Braided stainless steel flex lines may need to be purchased for some applications if not included in kit.


Fitment & Installation Details


TX6-DM Big Brake Truck Front Brake Kit Assembly Schematic

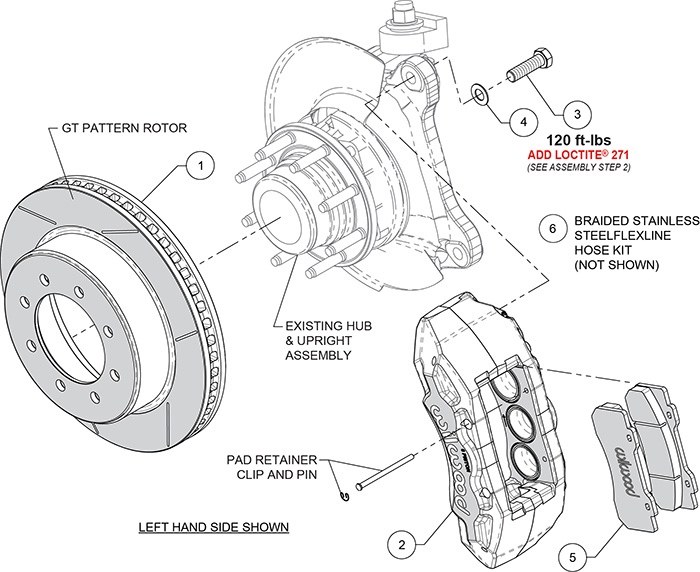

TX6-DM Big Brake Truck Front Brake Kit Assembly Schematic TX6-DM Big Brake Truck Front Brake Kit Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   TX6-DM Big Brake Truck Front Brake Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Ford

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

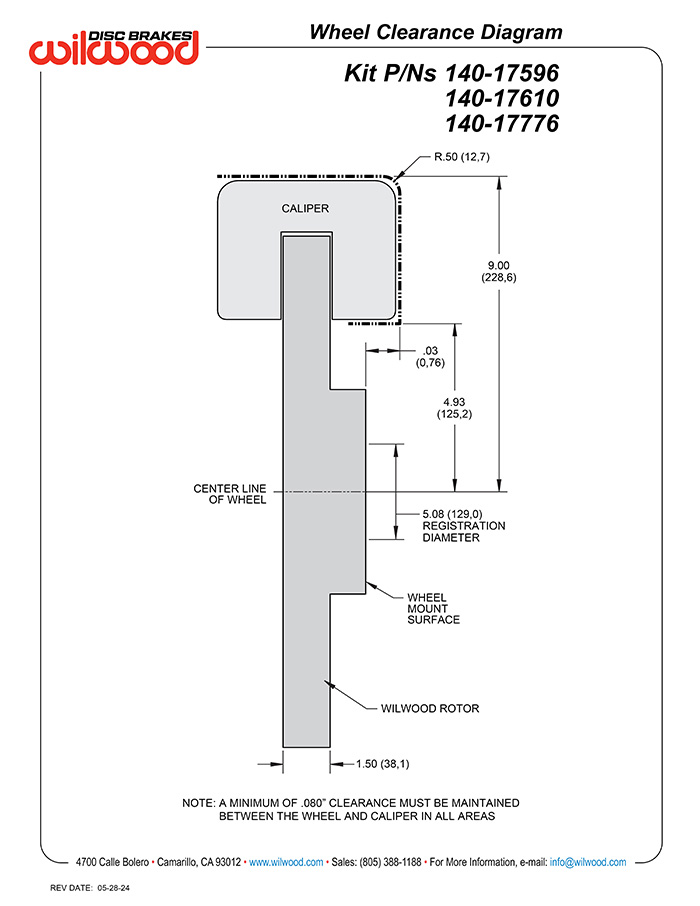

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-17609-RD
Right Hand - Part No: 120-17608-RD
Type: TX6-DM
Finish Color: Red Powder Coat
Piston Count: 6
Piston 1 Bore (in): 2.00
Piston 2 Bore (in): 1.88
Piston 3 Bore (in): 1.88
Piston Area (In²): 8.70
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 10120
Brake Pad Area (In²): 12.69
Brake Pad Volume (In³): 6.81
Pad Compound: BP-Q

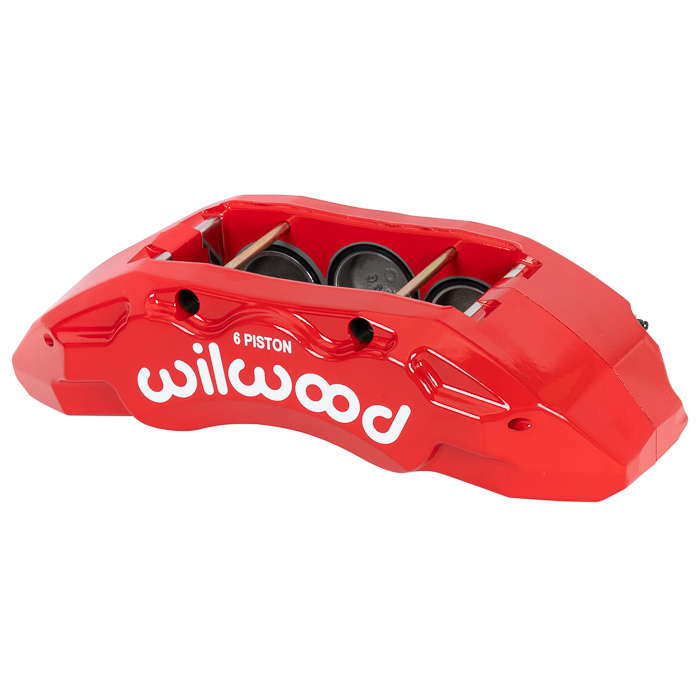

TX6-DM Caliper - Red Powder Coat TX6-DM Caliper - Red Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-17593-GTB
Right Hand - Part No: 160-17593-GTB
Type: GTB Vented Rotor & Hat
Style: GT Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 15.00
Width (in): 1.50
Vane Count: 48 V
Design Type: GT-BLK
Bedded: No
Dynamically Balanced:
GTB Vented Rotor & Hat - Iron - Black Electro Coat GTB Vented Rotor & Hat - Iron - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-14279
Replacement Dustboot: N-A
Replacement Piston 1: 200-13808
Replacement Piston 2: 200-7521
Replacement Piston 3: 200-7521
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5922
Wear Plate - Right Hand: 300-5923
Pad Retainer: 180-9232
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
 		220-14111
Hat
Bolt Kit:
Hub
Bolt Kit:

Additional related products:




More Details
More Details
More Details
More Details
