Residual Pressure Valve

Ordering Information for Residual Pressure Valve
RPV,2lb.,INLINE,BLUE
$22.38
Call (805) 388-1188
RPV,10lb.,INLINE,RED
$22.38
Call (805) 388-1188
KIT,RPV,2LB.,INLINE,BLUE W/FITTING
$24.66
Call (805) 388-1188
KIT,RPV,10LB.,INLINE,RED W/FITTING
$24.66
Call (805) 388-1188
RPV,4lb,INLINE,GOLD
$24.93
Call (805) 388-1188
KIT,RPV,4lb,INLINE,GOLD,W/FITTING
$27.21
Call (805) 388-1188
RPV,2lb.,INLINE,BLUE (OBSOLETE)
$19.38
Call (805) 388-1188
RPV,10lb.,INLINE,RED (OBSOLETE)
$19.38
Call (805) 388-1188
KIT,RPV,2lb.,INLINE,BLUE W/FITTINGS (OBSOLETE)
$21.36
Call (805) 388-1188
KIT,RPV,10lb.,INLINE,RED W/FITTINGS (OBSOLETE)
$21.36
Call (805) 388-1188

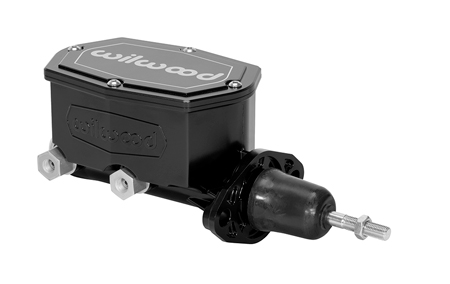

Tandem Manual Master Cylinder for C2 Corvettes

Machined from high-pressure die-cast aluminum, the Compact Tandem Master Cylinder weighs just 3.25 lbs., more than 50% less than the cast-iron factory tandem unit. Despite the compact size, it has a full 1.10” stroke and the fluid volume needed for high-performance multi-piston calipers. Finish options include gloss black e-coat, or a media burnished polished aluminum finish. Fluid outputs (1/2”-20 UNF) are provided on both sides of the bore. Plugs and fittings are included to accommodate 3/8”-24, 1/2”-20, and 9/16”-18 IF brake lines. Slotted mount flanges with 3.22” to 3.40” holes bolt right to the factory studs on the Corvette firewall and fit most other domestic cars and trucks from the era. Residual valves for drum brake cars and adjustable proportioning valves to dial in the brake bias are also available.

Two bore sizes provide the correct output for optimal braking performance on all models with Wilwood big brake kits, retrofits to tandem circuit master cylinders for 1963-64 drum brake cars, and a tuning option to provide a softer pedal feel with reduced effort on factory non-power disc brake equipped 1965-67 models.

NOTE: Due to space constraints, the optional proportioning valve mounting kit (P/N 260-14248) will not work with these C2 Corvette tandem master cylinders.

Ordering Information for Tandem Manual Master Cylinder for C2 Corvettes
M/C,TANDEM,COMPACT,INTEGRAL,7/8 DIA,DIE CAST,DUALOUTLET,W/PUSHROD,C2VETT,POWBLK
$369.30
Call (805) 388-1188
M/C,TANDEM,COMPACT,INTEGRAL,7/8 DIA,DIE CAST,DUAL OUTLET,W/PUSHROD,C2 VETTE,CHRM
$369.30
Call (805) 388-1188
M/C,TANDEM,COMPACT,INTEGRAL15/16 DIA,DIE CAST,DUALOUTLET,W/PUSHROD,C2 VETT,PWDBLK
$369.30
Call (805) 388-1188
M/C,TANDEM,COMPACT,INTEGRAL15/16 DIA,DIE CAST,DUAL OUTLET,W/PUSHROD,C2 VETTE,CHR
$369.30
Call (805) 388-1188



PDFs found: 3

Wilwood’s next generation Residual Pressure Valves (RPV) deliver the same outstanding performance and reliability as their previous versions but in a sleek new, fully detail-machined design. The valves are available with 2 or 10 pound pressure ratings to maintain minimal line pressure and prevent excessive pedal travel during initial engagement on disc or drum brake systems. Valves with 1/8”-27 NPT female ports are available individually, or packaged with two 3/8”-24 inverted flare female adapter fittings to accommodate 3/16” double flared hard lines. The valves are precision machined from billet aluminum and color coded with red or blue bright anodizing for easy identification.

Wilwood is excited to introduce a new 4 PSI-rated Residual Pressure Valve (RPV) to their line of pressure and flow controls. The 4 PSI Gold valve adds an option between the existing 2 PSI Blue and 10 PSI Red valves on disc brake systems where extreme shock loads, hard vibration, and suspension component flex can contribute to excessive caliper piston retraction and pad knock back.

RESIDUAL PRESSURE VALVE
