Steering & Spindles

AFX ProSpindles

AFX ProSpindles AFX ProSpindles Zoom Image

AFX ProSpindles Description

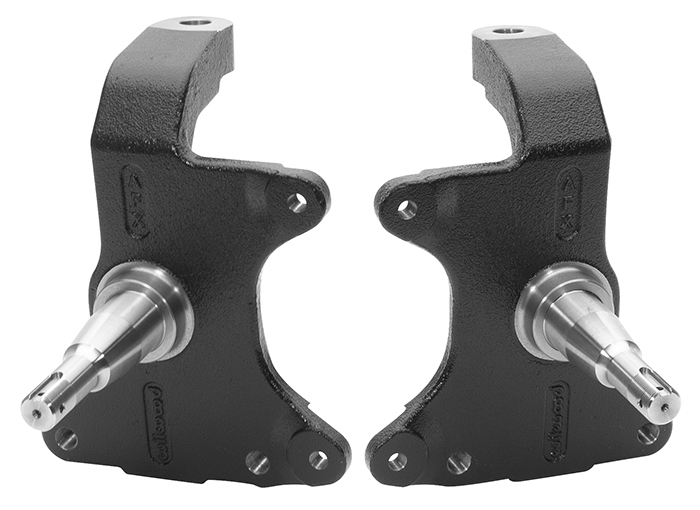

Wilwood’s AFX ProSpindle Kits contain a pair of high strength steel spindles for 1964-1972 GM A Body, 1967-1969 GM F Body, 1968-1974 GM X Body vehicles that use the original bolt on steering arms. Specifically designed for use with Wilwood’s disc brake kits, with a 2.00” drop for a more aggressive stance without affecting steering geometry. With the added benefits of providing a lower center of gravity, raised front roll center and a decreased camber change also improve handling with less body roll. Installs using the OE ball joints using original or aftermarket control arms. Kit includes four steering arm bolts, two for each spindle.



Ordering Information for AFX ProSpindles
Item No 831-15890
Info Details
Use 1964-72 GM A Body, 1967-69 GM F Body, 1968-74 GM X Body
Style Drop
Drop Dim 2 Inch
Price $269.94
Purchase
Call (805) 388-1188

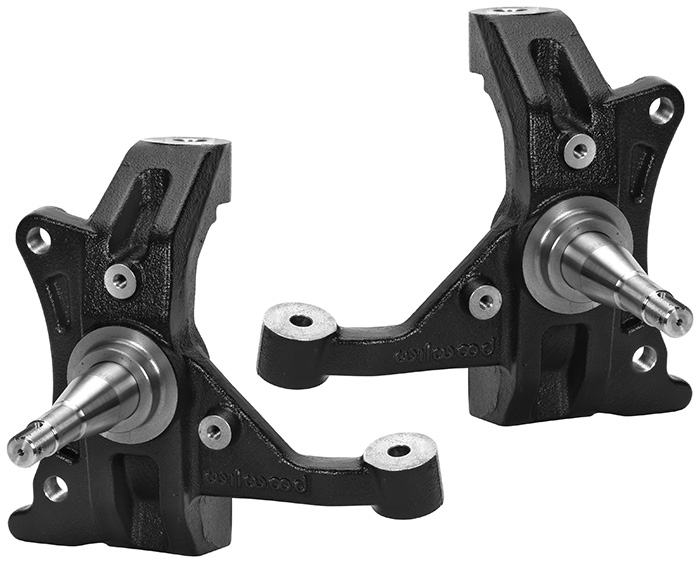

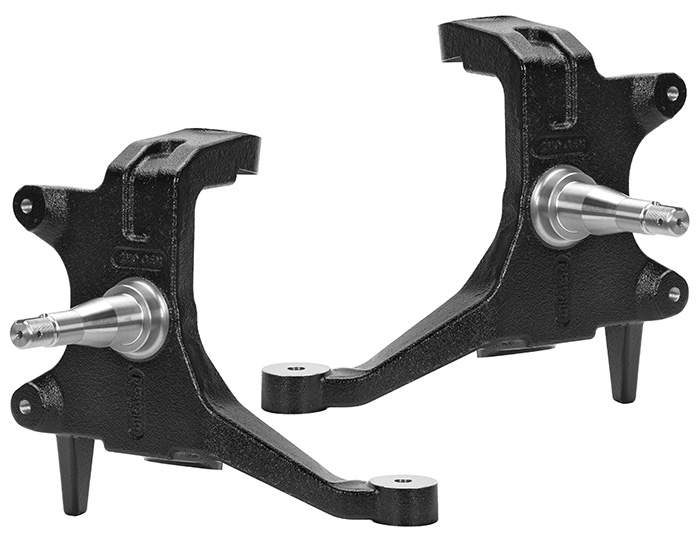

Chevrolet C10 Iron ProSpindles

Chevrolet C10 Iron ProSpindles Chevrolet C10 Iron ProSpindles Zoom Image

Chevrolet C10 Iron ProSpindles Description

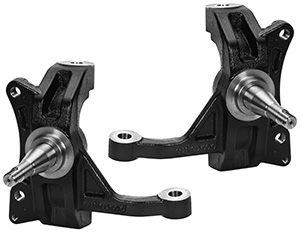

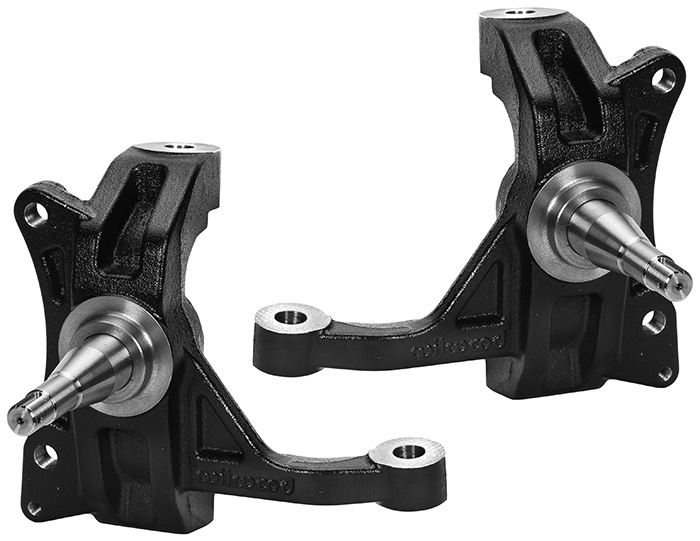

Wilwood’s C10 Iron ProSpindle Kits contain a pair of one piece spindles and integrated steering arms for 63-87 Chevrolet & GMC 2WD C10/C15 Pickups, Blazers and Suburban’s, dependent on part number. Specifically designed for use with Wilwood’s disc brake kits and with a 2.50” drop for a more aggressive stance without affecting steering geometry. Constructed from a proprietary grade of iron with a traditional bearing snout that supports Wilwood kit specific hubs in both 5 x 4.75” and 5 x 5.00” or 6 x 5.50" wheel bolt circles.



Ordering Information for Chevrolet C10 Iron ProSpindles
Item No 831-15932
Info Details
Use 1971-1987 Chevrolet C10 / GMC C15
Style Drop
Drop Dim 2.5 Inch
Price $356.34
Purchase
Call (805) 388-1188
Item No 831-15931
Info Details
Use 1963-1970 Chevrolet C10 / GMC C15
Style Drop
Drop Dim 2.5 Inch
Price $356.34
Purchase
Call (805) 388-1188

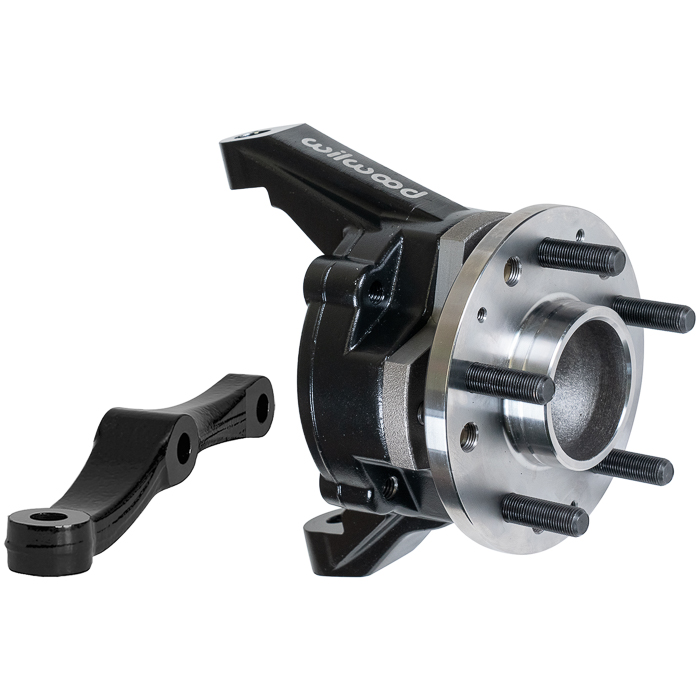

Chevrolet C10 ProSpindles

Chevrolet C10 ProSpindles Chevrolet C10 ProSpindles Zoom Image

Chevrolet C10 ProSpindles Description

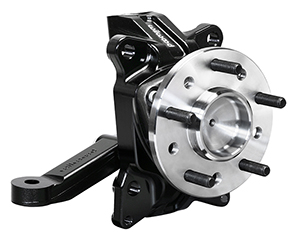

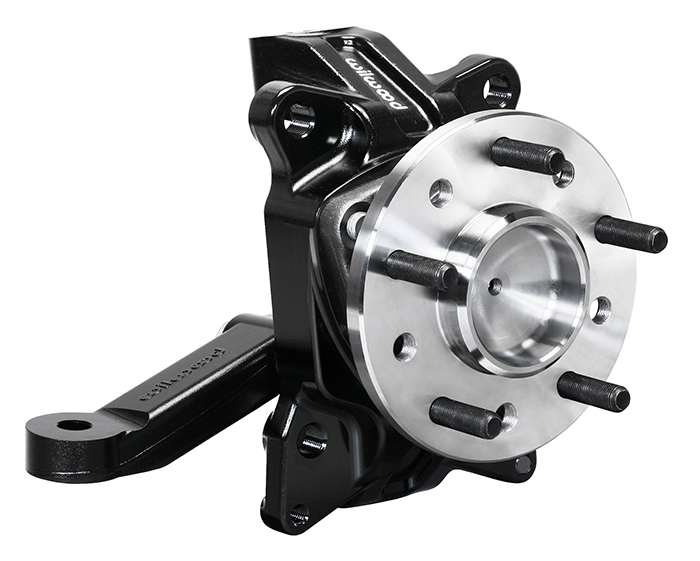

Wilwood’s ProSpindle Kits contain a pair of Modular Spindles, steering arms and hubs assemblies for either 63-70 or 71-87 Chevrolet & GMC 2WD C10/C15 Pickups and Suburban’s. Specifically designed for use with Wilwood’s disc brake kits, with a 2.50” drop for a more aggressive stance without affecting steering geometry. Constructed from a proprietary grade of forged aluminum with an integrated modular bearing hub assembly that supports both 5 x 4.75” and 5 x 5.00” wheel bolt circles. Direct mounting for radial caliper brackets create strong, zero flex platform for brake mounting.



Ordering Information for Chevrolet C10 ProSpindles
Item No 831-14202
Info Details
Use 1971-1987 Chevrolet C10 / GMC C15
Style Drop
Drop Dim 2.5 Inch
Price $755.99
Purchase
Call (805) 388-1188
Item No 831-14201
Info Details
Use 1963-1970 Chevrolet C10 / GMC C15
Style Drop
Drop Dim 2.5 Inch
Price $755.99
Purchase
Call (805) 388-1188
Mustang II ProSpindles

Mustang II ProSpindles Mustang II ProSpindles Zoom Image

Mustang II ProSpindles Description

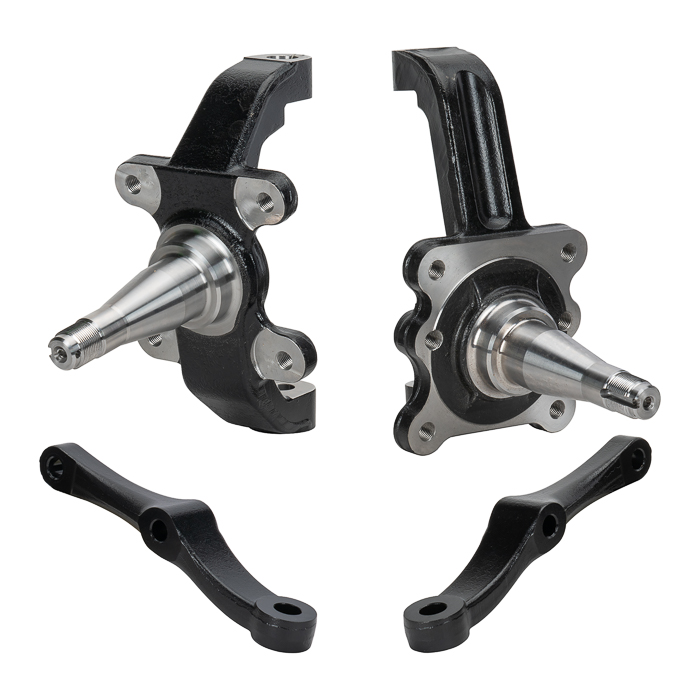

Wilwood’s ProSpindle is specifically designed for use in fabricated A-arm suspensions on kit cars, street rods, drag cars and other custom or race applications configured around Pinto/Mustang ll suspension geometry. A redesigned one-piece forged steel body uses common Pinto and Mustang ll tie rod ends, ball joints, wheel bearings and seals. It is lightweight yet nearly three times stronger than OE or aftermarket two-piece cast iron and steel replacement spindles.


The 2" dropped spindle pin provides the desired lowered ride height without disturbing the suspension geometry. Bolt-on steering arms are strong and can be reversed to accommodate rear steer configurations. They also allow the same spindle to be used on either side of a vehicle. Bolt-on caliper brackets attach to substantially reinforced mounting bosses on the spindle body for secure, deflection-free mounting of four or six piston calipers.


Ordering Information for Mustang II ProSpindles
Item No 830-9807
Info Details
Use 74-78 Mustang II / 74-80 Pinto
Style Drop
Drop Dim 2 Inch
Price $188.97
Purchase
Call (805) 388-1188
Item No 830-10832
Info Details
Use 74-78 Mustang II / 74-80 Pinto
Style Stock Height
Drop Dim Stock Height
Price $188.97
Purchase
Call (805) 388-1188

All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
