Name: Forged DPHA Front Caliper and Rotor Kit
Brand: Wilwood
Availability: InStock

Front Brake Kit – Part No: 140-12996-D

Call (805) 388-1188

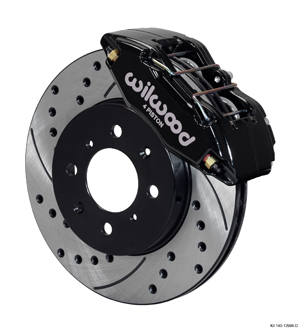

Forged DPHA Front Caliper and Rotor Kit

Prod #: 140-12996-D

Price: $703.20

Available Brake Kit #140-12996 Configurations

140-12996
Black Calipers
10.32-inch Rotors
Undrilled Rotors

140-12996-CB
Comp Blue Calipers
10.32-inch Rotors
Undrilled Rotors

140-12996-D
Black Calipers
10.32-inch Rotors
Drilled & Slotted Rotors

140-12996-DCB
Comp Blue Calipers
10.32-inch Rotors
Drilled & Slotted Rotors

140-12996-DR
Red Calipers
10.32-inch Rotors
Drilled & Slotted Rotors

140-12996-R
Red Calipers
10.32-inch Rotors
Undrilled Rotors

Available Brake Kit #140-12996 Configurations

140-12996
Black Calipers
10.32-inch Rotors
Undrilled Rotors

140-12996-CB
Comp Blue Calipers
10.32-inch Rotors
Undrilled Rotors

140-12996-D
Black Calipers
10.32-inch Rotors
Drilled & Slotted Rotors

140-12996-DCB
Comp Blue Calipers
10.32-inch Rotors
Drilled & Slotted Rotors

140-12996-DR
Red Calipers
10.32-inch Rotors
Drilled & Slotted Rotors

140-12996-R
Red Calipers
10.32-inch Rotors
Undrilled Rotors

Front Brake Kit — 140-12996-D

Kit Contents
Wilwood Forged DPHA Front Caliper and Rotor Kit Parts Laid Out - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Click Image to Close
View Custom Caliper Colors

Kit Summary
OE Hub Offset:	.00
(Increase / Decrease Track Width)
Spindle Type:	Factory Disc Spindle
Mount Type:	Lug
Caliper Type:	4 - Black Powder Coat
Rotor Diameter:	10.32
Min Wheel Diameter Req'd*:	15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

UPC Number
UPC	889545018462

	WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
	Applicable to Brake Pads Only

Forged DPHA Front Caliper and Rotor Kit

Wilwood’s new DynaPro Honda/Acura Caliper (DPHA) for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels including the EM1 Si 15” wheel. Designed around Wilwood’s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with the OE master cylinder and ABS functions, and are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood’s signature logo.

Watch more videos!

Civic DPHA Caliper Install

Fitment & Installation Details

Forged DPHA Front Caliper and Rotor Kit Assembly Schematic

Forged DPHA Front Caliper and Rotor Kit Assembly Schematic Zoom Image

Compatible Vehicles for this Brake Kit

BRAKE KIT: Forged DPHA Front Caliper and Rotor Kit

SPINDLE TYPE:

Factory Disc Spindle;

This Brake Kit is Compatible with the Following Vehicle Makes: Acura Honda

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles

Caution
	THIS BRAKE KIT HAS A HUB OFFSET OF: .00 This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance	Assembly Instructions
Wheel Clearance Diagram Click Image to Close	Assembly Instructions

Notes
1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. 2. This kit requires spindles from vehicles originally equipped with 262mm (10.32") diameter rotors.

Kit Components & Specifications

Calipers
Left Hand - Part No:	120-12949-BK
Right Hand - Part No:	120-12949-BK
Type:	Forged DPHA
Finish Color:	Black Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.62
Piston 2 Bore (in):	1.62
Piston Area (In²):	4.12
Piston Type:	Stainless
Mount Type:	Lug
Brake Pad Plate:	7812
Brake Pad Area (In²):	6.36
Brake Pad Volume (In³):	2.1
Pad Compound:	BP-10
Forged DPHA Caliper - Black Powder Coat Click Image to Close

Rotors
Left Hand - Part No:	160-12839-BK
Right Hand - Part No:	160-12838-BK
Type:	SRP Drilled Rotor
Style:	SRP Drilled & Slotted
Surface Finish:	Black Electro Coat
Material:	Iron
Outside Diameter (in):	10.32
Width (in):	0.83
Vane Count:	Vented
Design Type:	SRP-BLK
Bedded:	No
Dynamically Balanced:	No
SRP Drilled Rotor - Iron - Black Electro Coat Click Image to Close

Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories

Caliper Parts
O-ring Kit:	130-4346
Replacement Dustboot:	N-A
Replacement Piston 1:	200-7520
Replacement Piston 2:	200-7520
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	130-10540
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-5875
Wear Plate - Right Hand:	300-5875
Pad Retainer:	300-9635
Bleed Screw Kit:	220-0627

*Brake Lines Needed
