Rear Brake Kit – Part No: 140-17670-DR
Call (805) 388-1188
DPC56 Rear Replacement Caliper and Rotor Kit
Prod #: 140-17670-DR
Price: $1,114.33
Rear Brake Kit - Rear Kit


Kit Contents

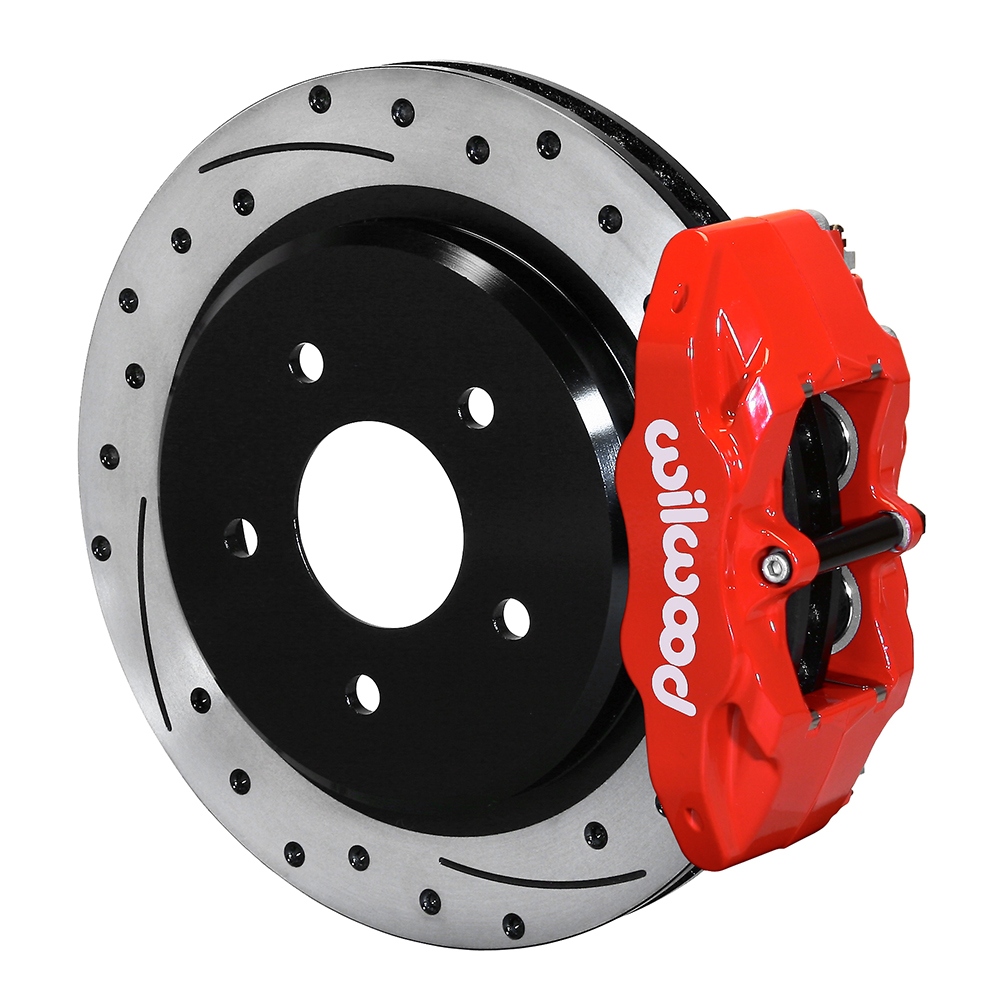

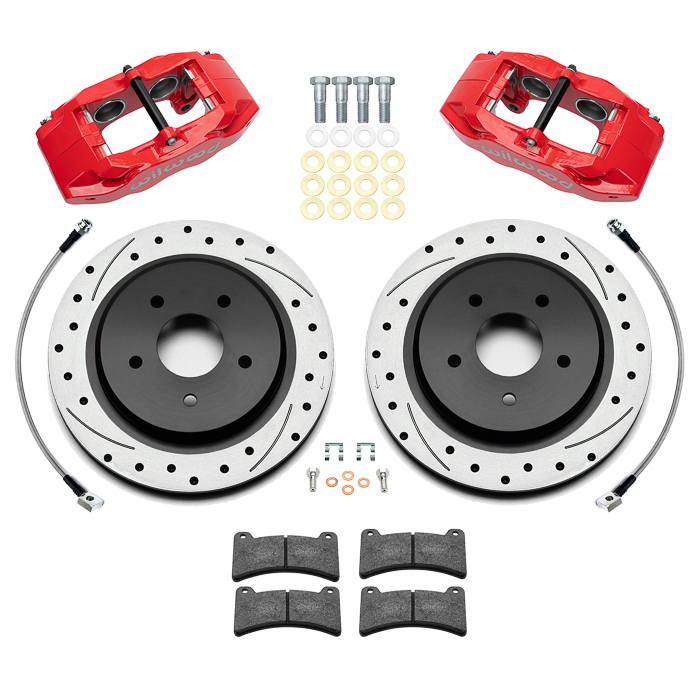

Wilwood DPC56 Rear Replacement Caliper and Rotor Kit Parts Laid Out - Red Powder Coat Caliper - SRP Dimpled & Slotted Rotor Wilwood DPC56 Rear Replacement Caliper and Rotor Kit Parts Laid Out - Red Powder Coat Caliper - SRP Dimpled & Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Rear End Axle: OEM
Axle Offset: 0.00
Mount Type: Lug
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 12.01
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545116502

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


DPC56 Rear Replacement Caliper and Rotor Kit

DPC56 rear caliper, pad, and rotor kits are engineered as high performance street and custom show replacements for Corvettes and hot rods using Corvette suspension. These kits combine the high-tech styling and superior performance of the DPC56 calipers, 12.00” diameter SRP series drilled and slotted e-coat rotors, and the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits bolt directly to the rear spindle of any model C5 or C6 from 1997-2013, without the need for additional brackets or adapters.


Fitment & Installation Details

DPC56 Rear Replacement Caliper and Rotor Kit Assembly Schematic

DPC56 Rear Replacement Caliper and Rotor Kit Assembly Schematic DPC56 Rear Replacement Caliper and Rotor Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange 		Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0.00
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image
Part 1
Notes
1. Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.00" diameter rear rotor.
2. DPC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.

Compatible Vehicles for this Brake Kit

BRAKE KIT:   DPC56 Rear Replacement Caliper and Rotor Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   Chevrolet

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
fitment 1
Offset: 0.00


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13916-RD
Right Hand - Part No: 120-13916-RD
Type: DPC56
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.25
Piston 2 Bore (in): 1.25
Piston Area (In²): 2.46
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 4812
Brake Pad Area (In²): 5.1
Brake Pad Volume (In³): 1.71
Pad Compound: BP-10
DPC56 Caliper - Red Powder Coat DPC56 Caliper - Red Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-14041-BK
Right Hand - Part No: 160-14040-BK
Type: SRP Drilled Rotor & Hat
Style: SRP Dimpled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 12.01
Width (in): 1.03
Vane Count: Vented
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
SRP Drilled Rotor & Hat - Iron - Black Electro Coat SRP Drilled Rotor & Hat - Iron - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2479
Replacement Dustboot: N-A
Replacement Piston 1: 200-7515
Replacement Piston 2: 200-7515
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
 		220-8072
Hat
Bolt Kit:
Hub
Bolt Kit:

Additional related products:




More Details
More Details
More Details
More Details






All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
