Forged Narrow Dynapro Big Brake Front Brake Kit (Race)
Prod #: 140-17362
Price: $1,716.06

Front Brake Kit — 140-17362


Kit Contents

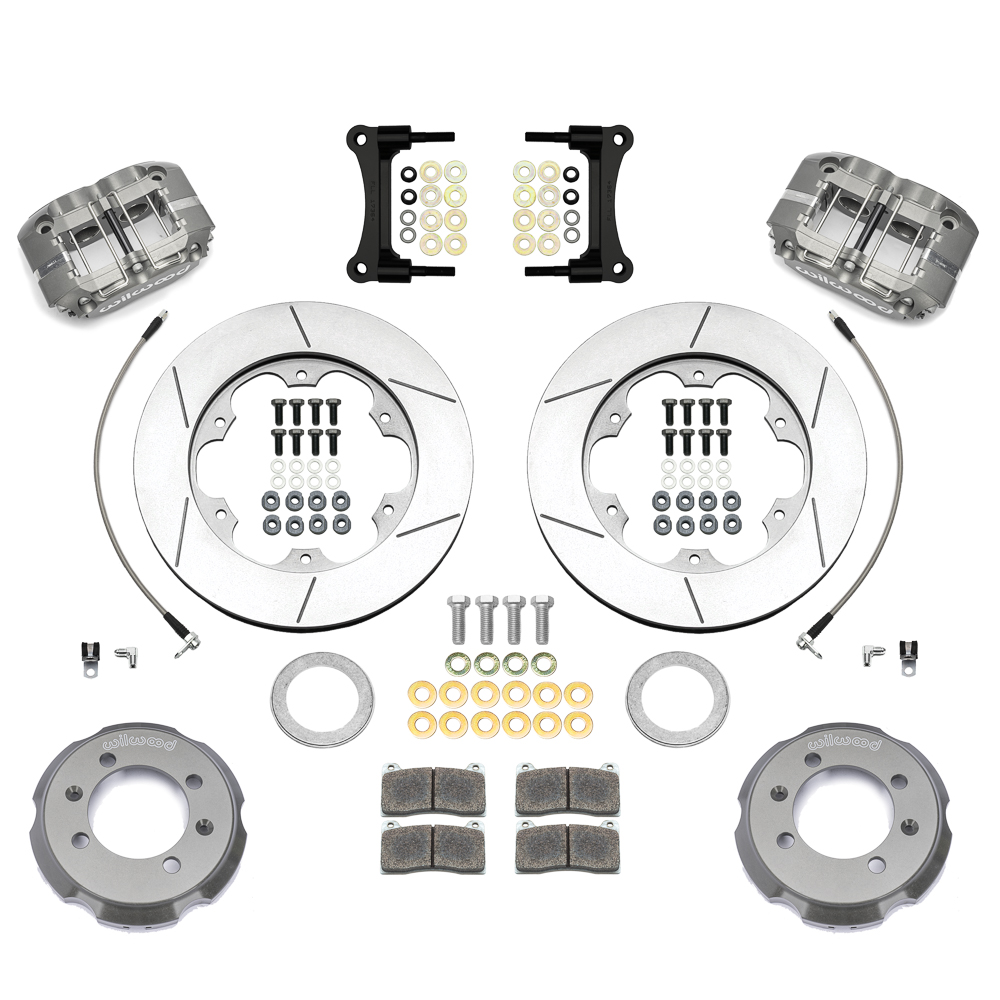

Wilwood Forged Narrow Dynapro Big Brake Front Brake Kit (Race) Parts Laid Out - Type III Anodize Caliper - GT Slotted Rotor Wilwood Forged Narrow Dynapro Big Brake Front Brake Kit (Race) Parts Laid Out - Type III Anodize Caliper - GT Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 11.00
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545111668

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Narrow Dynapro Big Brake Front Brake Kit (Race)

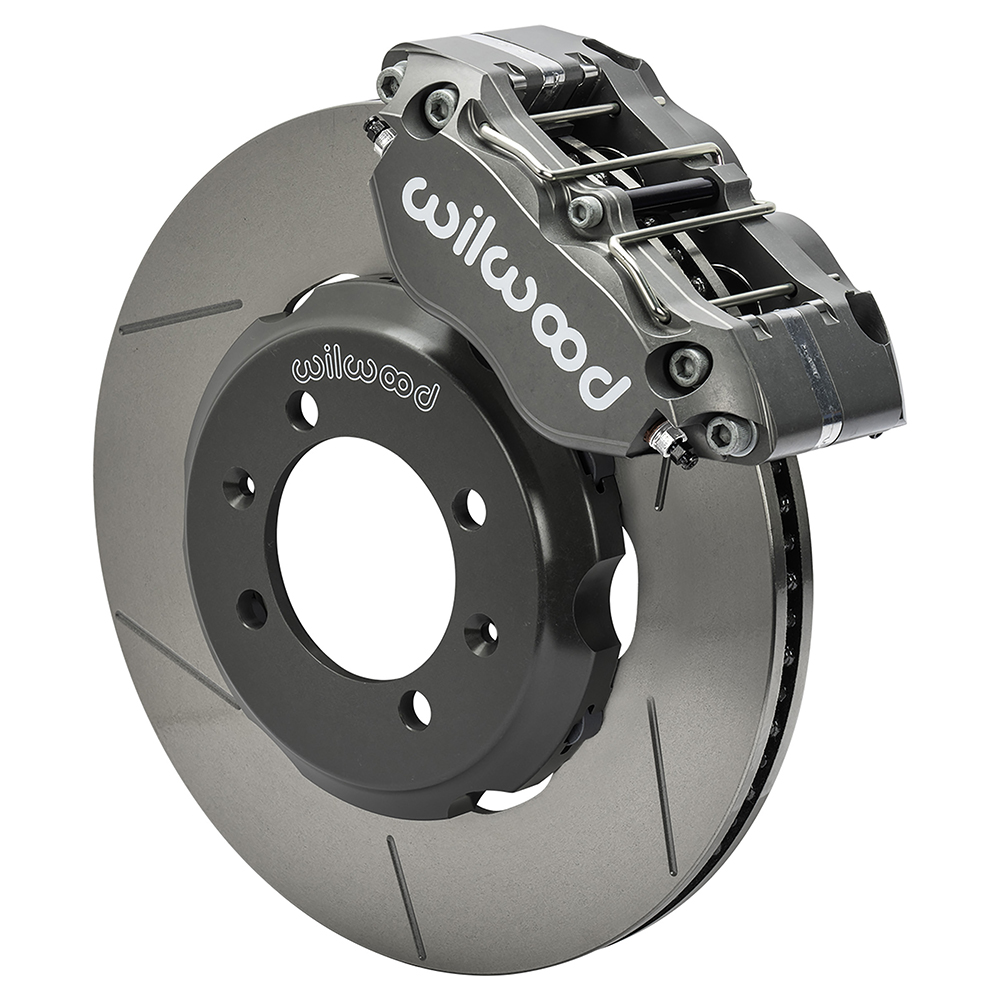

Forged Narrow Dynapro 4 piston radial mount calipers are coupled with the high cooling capacity of Wilwood’s proprietary Spec-37 material 11.00" diameter GT 36 directional vane rotors dynamically mounted to lightweight aluminum hats to provide the ultimate brake package for unrestricted road race competition. High temperature, fluid and abrasion resistant proprietary type III anodize finish is standard with Narrow Dynapro calipers.


Fitment & Installation Details


Forged Narrow Dynapro Big Brake Front Brake Kit (Race) Assembly Schematic

Forged Narrow Dynapro Big Brake Front Brake Kit (Race) Assembly Schematic Forged Narrow Dynapro Big Brake Front Brake Kit (Race) Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Narrow Dynapro Big Brake Front Brake Kit (Race)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Fiat Mazda

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.

Kit Components & Specifications
Calipers
Left Hand - Part No: 120-17192
Right Hand - Part No: 120-17192
Type: Narrow Dynapro Radial Mount
Finish Color: Type III Anodize
Piston Count: 4
Piston 1 Bore (in): 1.38
Piston 2 Bore (in): 1.38
Piston Area (In²): 3.00
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7812
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-40
Narrow Dynapro Radial Mount Caliper - Type III Anodize Narrow Dynapro Radial Mount Caliper - Type III Anodize Zoom Image
Rotors
Left Hand - Part No: 160-12892
Right Hand - Part No: 160-12892
Type: GT 72 Straight Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 11.00
Width (in): 0.81
Vane Count: 72 V
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
GT 72 Straight Vane - Spec-37 Iron - Plain GT 72 Straight Vane - Spec-37 Iron - Plain Zoom Image
Rotor Hats
Hat - Part No: 170-17131
Type: Big Brake Dynamic Hat - Short Offset
Material: Aluminum
Finish Color: Type III Anodize
Hat Offset Dimension (in): 0.750
Bolt Circle 1: 4 x 3.93
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.500
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000
Big Brake Dynamic Hat - Short Offset - Aluminum - Type III Anodize Big Brake Dynamic Hat - Short Offset - Aluminum - Type III Anodize Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2658
Replacement Dustboot: N-A
Replacement Piston 1: 200-7518
Replacement Piston 2: 200-7518
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 230-10118
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: 300-9636
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
 		220-12948
Hat
Bolt Kit:
Hub
Bolt Kit:
