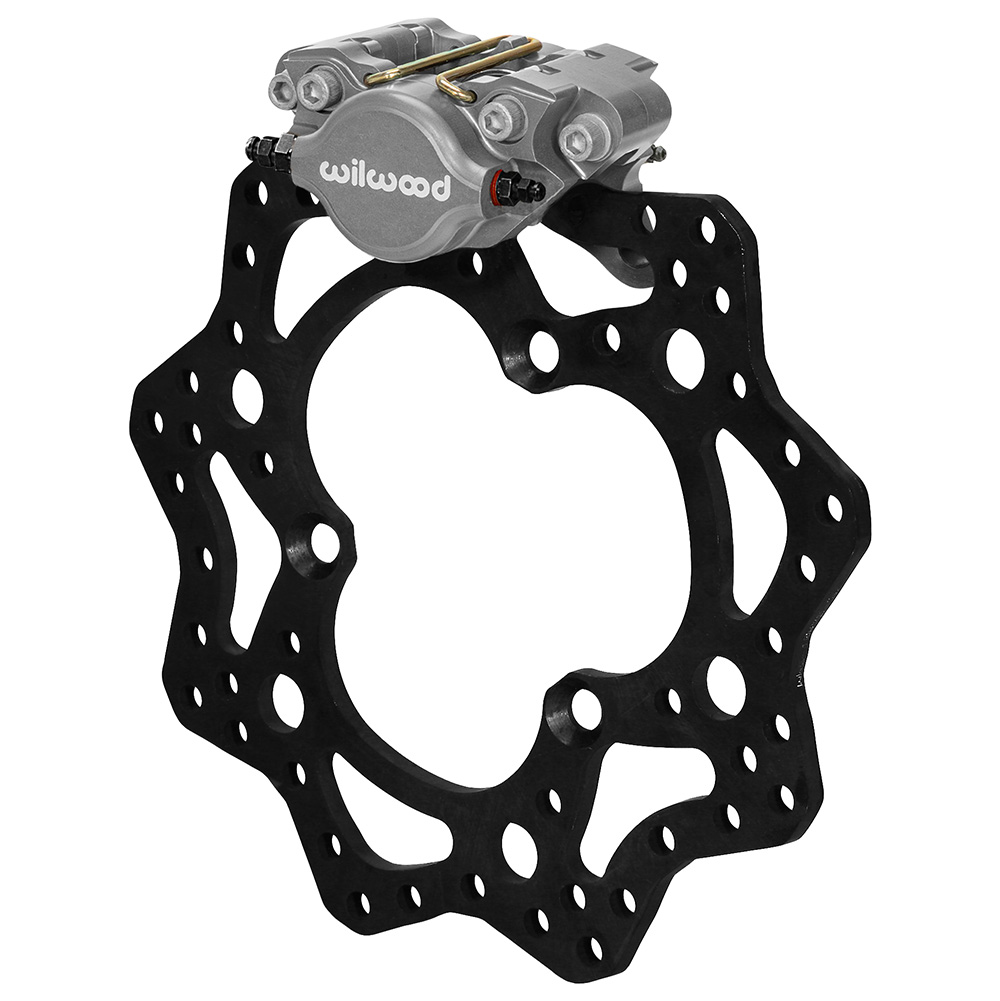

Front Brake Kit – Part No: 140-12957
Dynapro Single Left Front Sprint Brake Kit
Prod #:
140-12957
Price:
$319.13
Front Brake Kit — 140-12957
|
Kit Contents
|

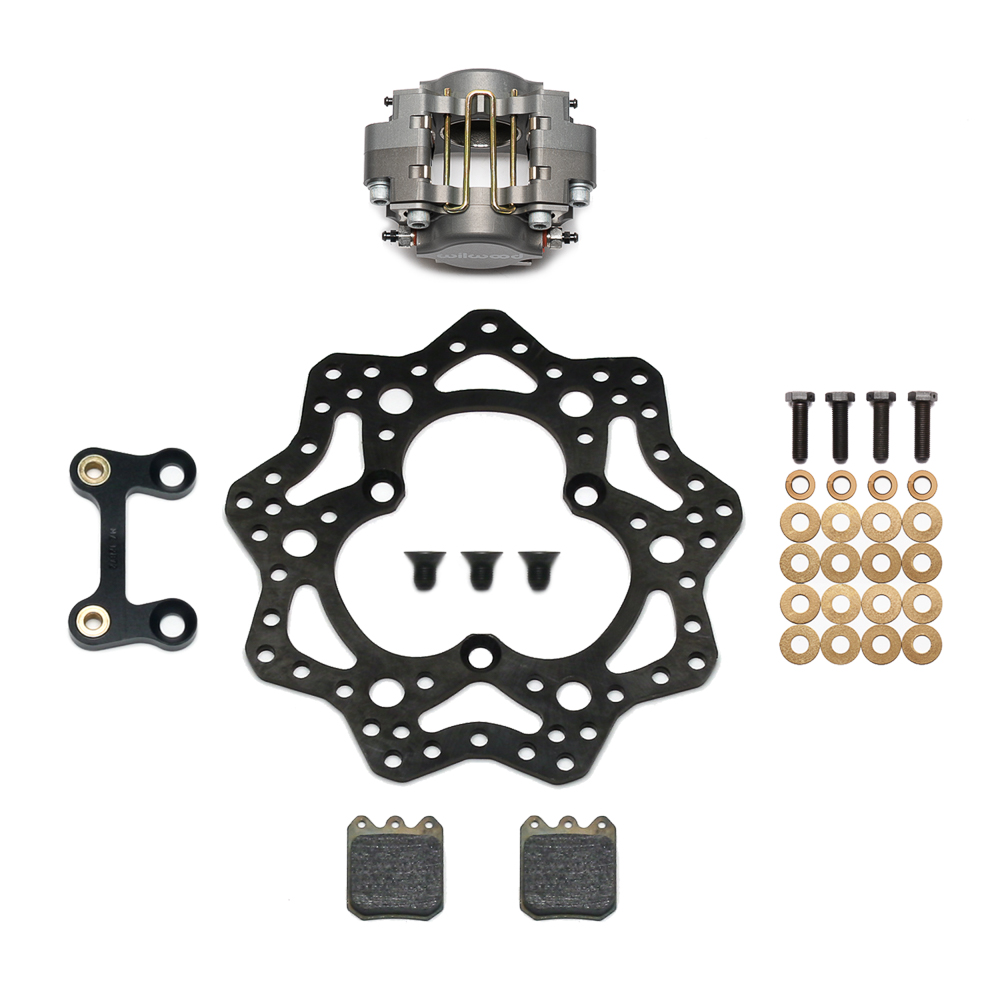

Wilwood Dynapro Single Left Front Sprint Brake Kit Parts Laid Out - Type III Anodize Caliper - Drilled Rotor
Click Image to Close
|
|
|
Kit Summary
|
|
|
|
|
|
|
Spindle Type:
|
|
|
Mount Type:
|
Lug
|
|
Caliper Type:
|
2 - Type III Anodize
|
|
Rotor Diameter:
|
11.00
|
|
Min Wheel Diameter Req'd*:
|
|
|
*This Brake Kit may fit -inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Wheel Clearance Diagram
|
| UPC Number |
| UPC |
889545018394 |
Dynapro Single Left Front Sprint Brake Kit
The Dynapro Single Left Front Sprint kits are a further evolution of a proven design from Wilwood's 35+ years of engineering and producing the best open wheel braking systems. Dynapro single calipers have full 2.40 square inches of area for increased clamping force. Kits are offered with either Slotted Titanium or Scalloped Alloy Steel Rotors for high-heat or Aluminum rotors for maximizing weight saving on light braking tracks. The kit comes complete with caliper, brake pads, caliper mounting brackets, caliper mount bolt kit, rotor and rotor mounting hardware.
Fitment & Installation Details
Dynapro Single Left Front Sprint Brake Kit Assembly Schematic
Dynapro Single Left Front Sprint Brake Kit Assembly Schematic
Click Image to Close
|
Compatible Vehicles for this Brake Kit
|
|
BRAKE KIT:
Dynapro Single Left Front Sprint Brake Kit
|
|
SPINDLE TYPE:
|
This Brake Kit is Compatible with the Following Vehicle Makes:
Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
|
View All Vehicles
|
|
Caution
|
|
THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
|
|
NOTE:
Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.
|
Kit Components & Specifications
|
Calipers
|
|
Left Hand - Part No:
|
120-10188
|
|
Right Hand - Part No:
|
|
|
Type:
|
Dynapro Single
|
|
Finish Color:
|
Type III Anodize
|
|
Piston Count:
|
2
|
|
Piston 1 Bore (in):
|
1.75
|
|
Piston Area (In²):
|
2.40
|
|
Piston Type:
|
Stainless
|
|
Mount Type:
|
Lug
|
|
Brake Pad Plate:
|
6812
|
|
Brake Pad Area (In²):
|
3
|
|
Brake Pad Volume (In³):
|
1.1
|
|
Pad Compound:
|
BP-40
|
Dynapro Single Caliper - Type III Anodize
Click Image to Close
|
|
Rotors
|
|
Left Hand - Part No:
|
160-10475
|
|
Right Hand - Part No:
|
|
|
Type:
|
Drilled Steel
|
|
Style:
|
Drilled
|
|
Surface Finish:
|
Black Electro Coat
|
|
Material:
|
Steel
|
|
Outside Diameter (in):
|
11.00
|
|
Width (in):
|
0.31
|
|
Vane Count:
|
Solid
|
|
Design Type:
|
Steel Scalloped
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
No
|
Drilled Steel - Steel - Black Electro Coat
Click Image to Close
|
|
Rotor Hats
|
|
Hat - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Hat Offset Dimension (in):
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
|
Hubs
|
|
Hub - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Mount Style:
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
