Hub - Road Race
Prod #: 270-15624
Price: $314.92


Hub - Road Race - Product Description

Wilwood’s forged aluminum ProHub for the 1990-2005 Mazda MX-5 Miata provides a lightweight and fully user-serviceable option, with measurably increased strength and durability over aftermarket OE-type steel replacement hubs.The innovative ProHub design is a direct bolt-on and accommodates any brake package configured for the stock spindle and hub. ProHubs eliminate the one-piece, sealed ball hub bearing design. A uniquely designed spindle collar and lock-nut system incorporates separate and wider spaced inner and outer tapered roller bearings for added hub support and increased load carrying capacity. Regular bearing lubrication and maintenance is simplified, while providing fully manual and infinite adjustment to the bearing preload.


Material & Finish
Material Aluminum
Finish Bare
Weight (lbs) 2.36
UPC Number
UPC 889545090192
Rotor Compatibility
Rotor Mount Bolt Circle (in)
Rotor Offset Type
Rotor Offset Dimension (in)
Mount Type & Dimensions
Mount Type Hat
Adapter Bolt Circle(s) 6-Bolt Type
8-Bolt Type
Hub Bolt Circles
Bolt Circle 1 (in) 4 x 3.93
Bolt Circle 2 (in)
Bolt Circle 3 (in)
Hub Stud Diameters
Stud Dia 1 (in) 12mm x 1.5
Stud Dia 2 (in)
Stud Dia 3 (in)

Hub Characteristics

  • 1990 - 2015 MX5 Miata


    • Hub Dimensions

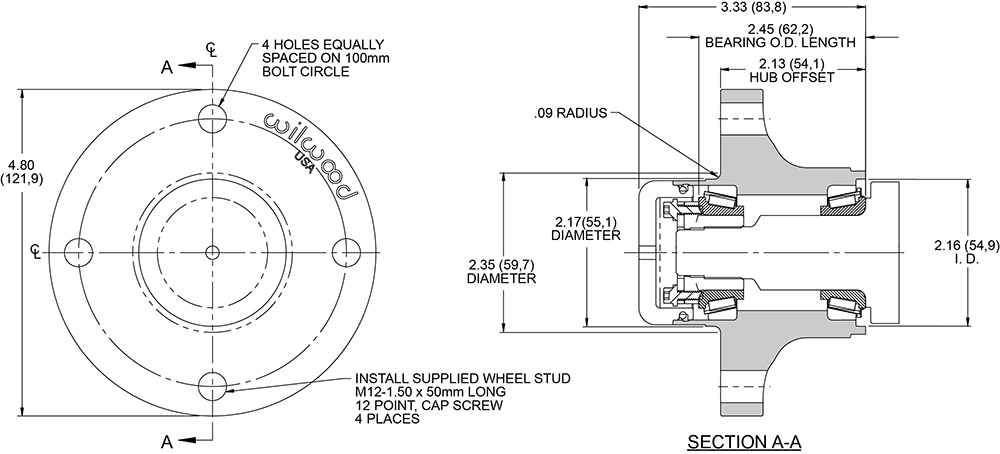

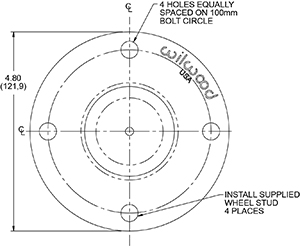

    Hub - Road Race Drawing Hub - Road Race Drawing Zoom Image
    Hub Dimensions (in)
    Dim A Dim N
    Dim D Dim P
    Dim H Dim Q
    Dim M

    Product Documents

    Product Line Sheet
    Product Sheet
    Dimensions Sheet

    Parts & Accessories

    6 Bolt Adapter:
    8 Bolt Adapter
    Inner Bearing 370-15629
    Inner Bearing Set - BCA#:
    Outer Bearing 370-15629
    Outer Bearing Set - BCA#:
    Inner Hub Bearing - Race 370-15628
    Outer Hub Bearing - Race 370-15628
