Name: D31 Rear Brake Kit
Brand: Wilwood
Availability: InStock

Rear Brake Kit – Part No: 140-17656-DR

Call (805) 388-1188

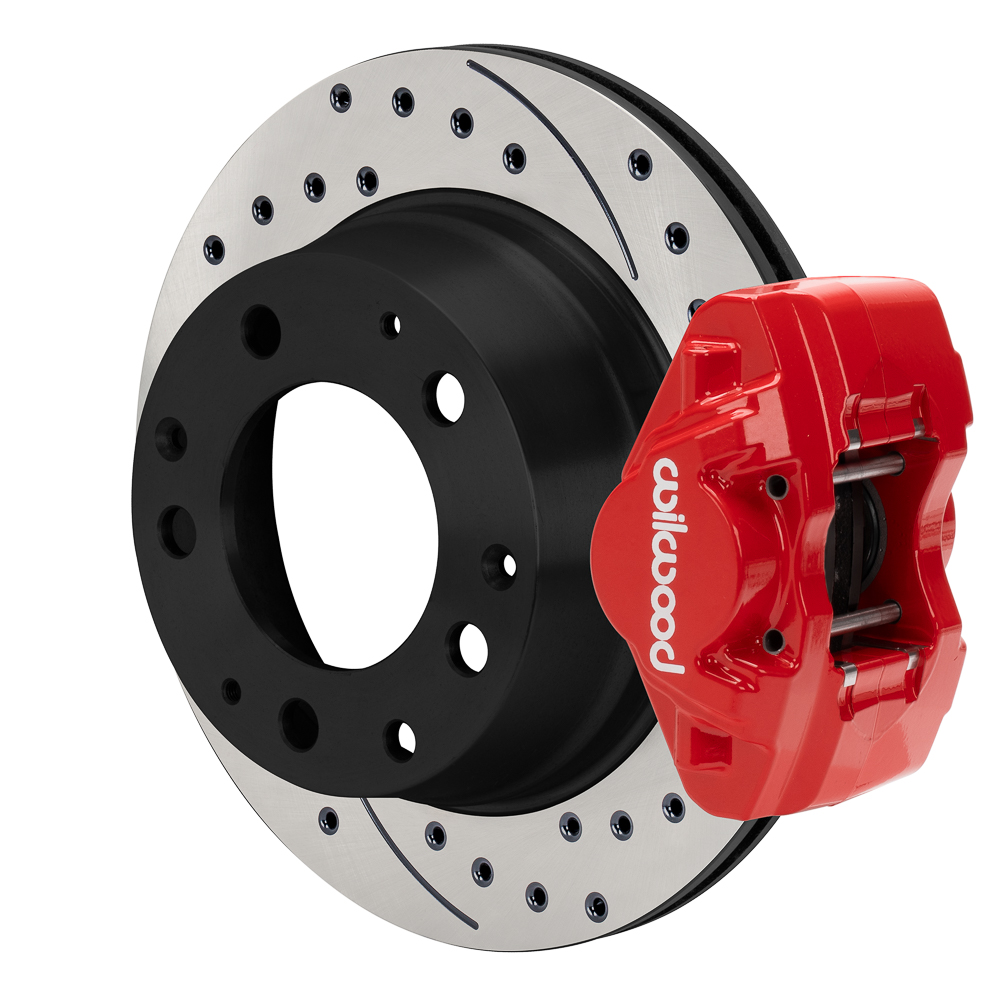

D31 Rear Brake Kit

Prod #: 140-17656-DR

Price: $1,124.13

Available Brake Kit #140-17656 Configurations

140-17656
Black Calipers
11.42-inch Rotors
Undrilled Rotors

140-17656-D
Black Calipers
11.42-inch Rotors
Drilled & Slotted Rotors

140-17656-DR
Red Calipers
11.42-inch Rotors
Drilled & Slotted Rotors

140-17656-DY
Yellow Calipers
11.42-inch Rotors
Drilled & Slotted Rotors

140-17656-R
Red Calipers
11.42-inch Rotors
Undrilled Rotors

140-17656-Y
Yellow Calipers
11.42-inch Rotors
Undrilled Rotors

Available Brake Kit #140-17656 Configurations

140-17656
Black Calipers
11.42-inch Rotors
Undrilled Rotors

140-17656-D
Black Calipers
11.42-inch Rotors
Drilled & Slotted Rotors

140-17656-DR
Red Calipers
11.42-inch Rotors
Drilled & Slotted Rotors

140-17656-DY
Yellow Calipers
11.42-inch Rotors
Drilled & Slotted Rotors

140-17656-R
Red Calipers
11.42-inch Rotors
Undrilled Rotors

140-17656-Y
Yellow Calipers
11.42-inch Rotors
Undrilled Rotors

Rear Brake Kit - Rear Kit

Kit Contents

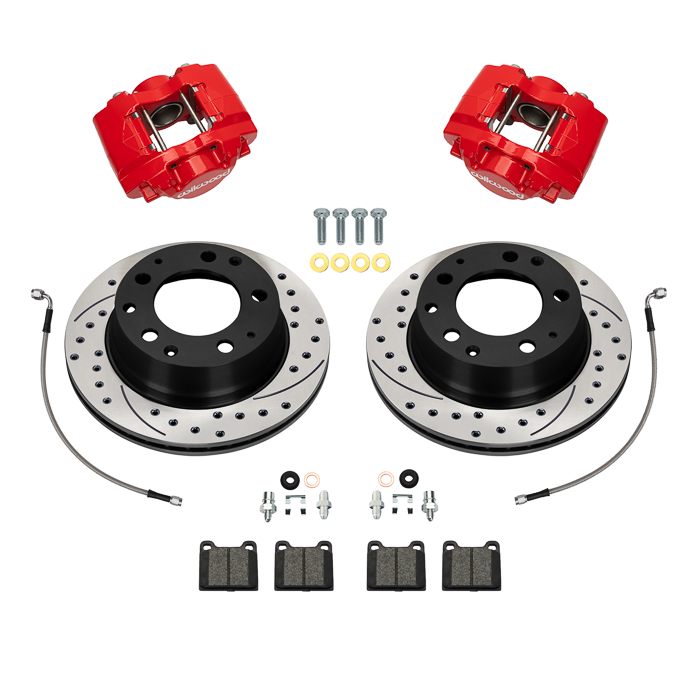

Wilwood D31 Rear Brake Kit Parts Laid Out - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Click Image to Close
View Custom Caliper Colors

Kit Summary
Rear End Axle:
Axle Offset:	0.00
Mount Type:	Lug
Caliper Type:	2 - Red Powder Coat
Rotor Diameter:	11.42
Min Wheel Diameter Req'd*:	15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

UPC Number
UPC	889545117479

	WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
	Applicable to Brake Pads Only

D31 Rear Brake Kit

Wilwood’s D31 Rear Brake Kits utilizing our forged aluminum D31 direct mount calipers provide the ultimate in strength, weight savings, and high efficiency brake clamping for Porsche 911 with "M" 3.00" OEM rear calipers. These calipers feature a high strength, lightweight 4.1-pound forged aluminum body fitted with machined stainless-steel pistons. D31 series calipers utilize the same 3.00" mounting centers, height and offset as the traditional 911 "M" calipers and contain standard D31 brake pads in BP-10 compound, OEM replacement 11.42” diameter and 0.79” or 0.95" thickness rotors in either a plain face surface or an SRP directional drilled and slotted configuration with a black e-coat finish. D31 calipers are offered in Black and Red powder coat finishes and can be also special ordered with yellow powder coat, Type III hard anodize or any of the special powder coat colors available at an extra charge. Kits include DOT compliant stainless braided brake hoses.

Fitment & Installation Details

D31 Rear Brake Kit Assembly Schematic

D31 Rear Brake Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration! Flange	Confirm Offset Measurement! Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset

	AXLE OFFSET: 0.00 Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance	Assembly Instructions
Wheel Clearance Diagram Click Image to Close	Part 1

Notes

Compatible Vehicles for this Brake Kit

BRAKE KIT: D31 Rear Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes: Porsche

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END: - Rear Kit

AXLE OFFSET: 0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.

Offset: 0.00

Kit Components & Specifications

Calipers
Left Hand - Part No:	120-17166-RD
Right Hand - Part No:	120-17166-RD
Type:	D31R
Finish Color:	Red Powder Coat
Piston Count:	2
Piston 1 Bore (in):	1.62
Piston Area (In²):	2.06
Piston Type:	Stainless
Mount Type:	Lug
Brake Pad Plate:	D31
Brake Pad Area (In²):
Brake Pad Volume (In³):
Pad Compound:	BP-10
D31R Caliper - Red Powder Coat Click Image to Close

Rotors
Left Hand - Part No:	160-16700-BK
Right Hand - Part No:	160-16699-BK
Type:	SRP Drilled Rotor & Hat
Style:	SRP Drilled & Slotted
Surface Finish:	Black Electro Coat
Material:	Iron
Outside Diameter (in):	11.42
Width (in):	0.95
Vane Count:	Vented
Design Type:	SRP-BLK
Bedded:	No
Dynamically Balanced:	No
SRP Drilled Rotor & Hat - Iron - Black Electro Coat Click Image to Close

Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories

Caliper Parts
O-ring Kit:	130-4346
Replacement Dustboot:	210-14384
Replacement Piston 1:	200-7519
Replacement Piston 2:	N-A
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	130-10540
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-10523
Wear Plate - Right Hand:	300-10523
Pad Retainer:	180-17958
Bleed Screw Kit:	220-0627

Brake Lines
Front Line Kit:	220-17551

Hat
Bolt Kit:

Hub
Bolt Kit:
