Rear Brake Kit – Part No: 140-17475-D
Call (805) 388-1188

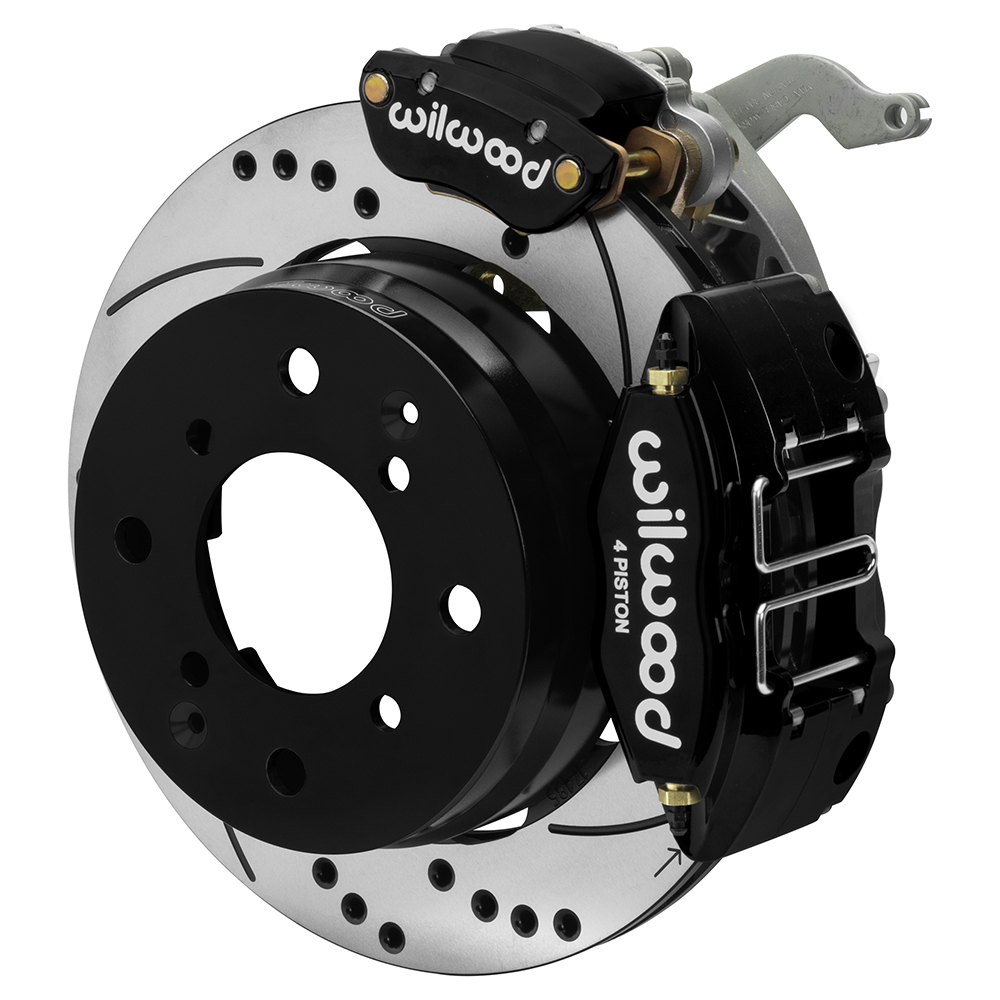

Powerlite-MC4 Rear Parking Brake Kit
Prod #: 140-17475-D
Price: $2,234.33
Rear Brake Kit - Rear Kit


Kit Contents

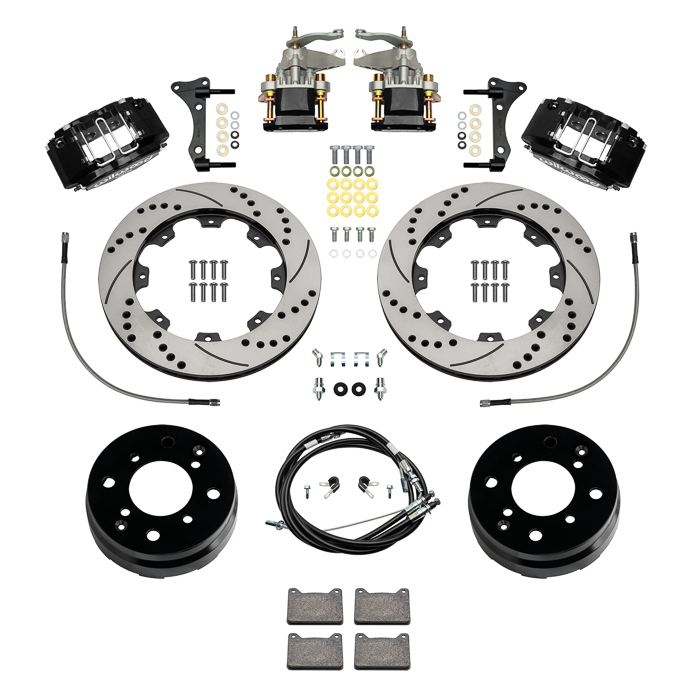

Wilwood Powerlite-MC4 Rear Parking Brake Kit Parts Laid Out - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Wilwood Powerlite-MC4 Rear Parking Brake Kit Parts Laid Out - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Zoom Image

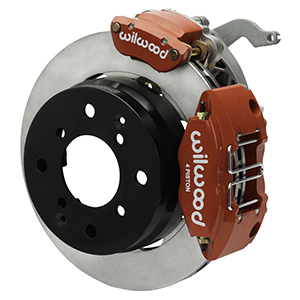

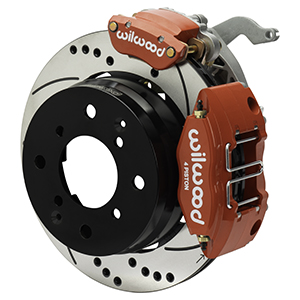

View Custom Caliper Colors

Kit Summary
Rear End Axle:
Axle Offset: 0.00
Mount Type: Radial
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 11.38
Min Wheel Diameter Req'd*: 15

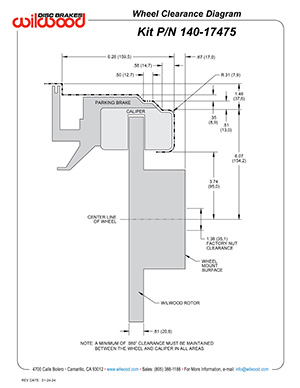

*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545115833

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Powerlite-MC4 Rear Parking Brake Kit

Powerlite Rear MC4 Parking Brake Kits allow easy upgrade to 4 piston Powerlite calipers. This kit contains aluminum hubs, 2 piece rotor and hat assemblies and BP-10 performance pads. This using the stock rear upricght mounting. Kits come complete with hardware, parking brake cablee and stainless steel flexlines.


Fitment & Installation Details

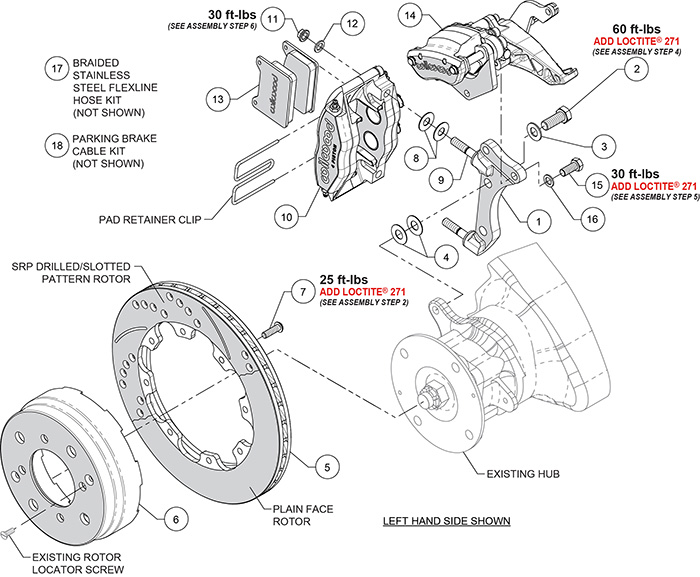

Powerlite-MC4 Rear Parking Brake Kit Assembly Schematic

Powerlite-MC4 Rear Parking Brake Kit Assembly Schematic Powerlite-MC4 Rear Parking Brake Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

Flange 		Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0.00
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

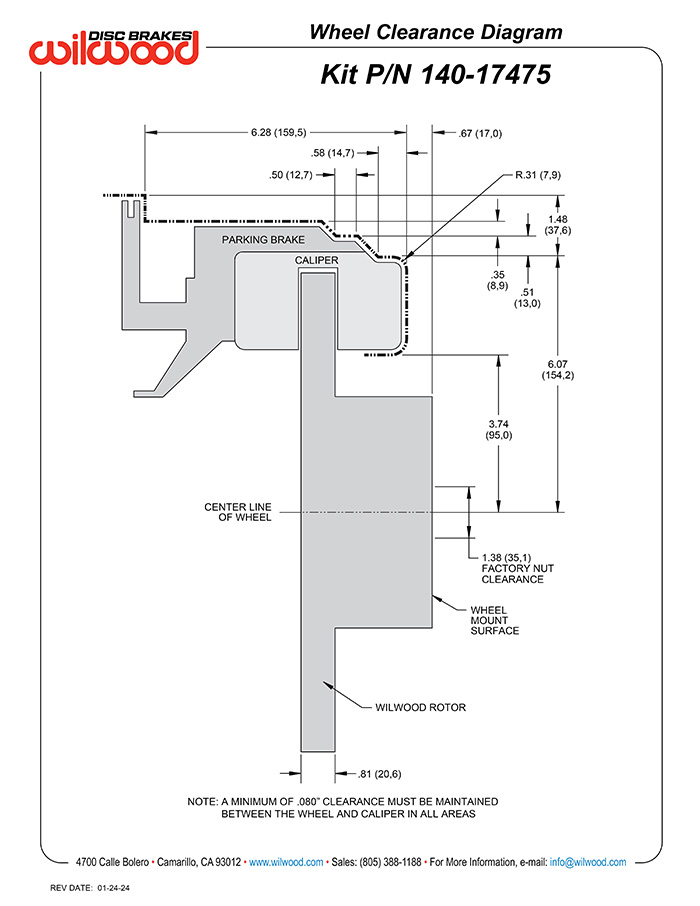

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image
Part 1
Notes
1. NOTE: These kits must be used with a 19mm master cylinder, as used in the 914/6 or 911.

Compatible Vehicles for this Brake Kit

BRAKE KIT:   Powerlite-MC4 Rear Parking Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   Porsche

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   - Rear Kit

AXLE OFFSET:   0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
fitment 1
Offset: 0.00


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-8727-BK
Right Hand - Part No: 120-8727-BK
Type: Powerlite
Finish Color: Black Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.00
Piston 2 Bore (in): 1.00
Piston Area (In²): 1.58
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7912
Brake Pad Area (In²): 5
Brake Pad Volume (In³): 1.8
Pad Compound: BP-10

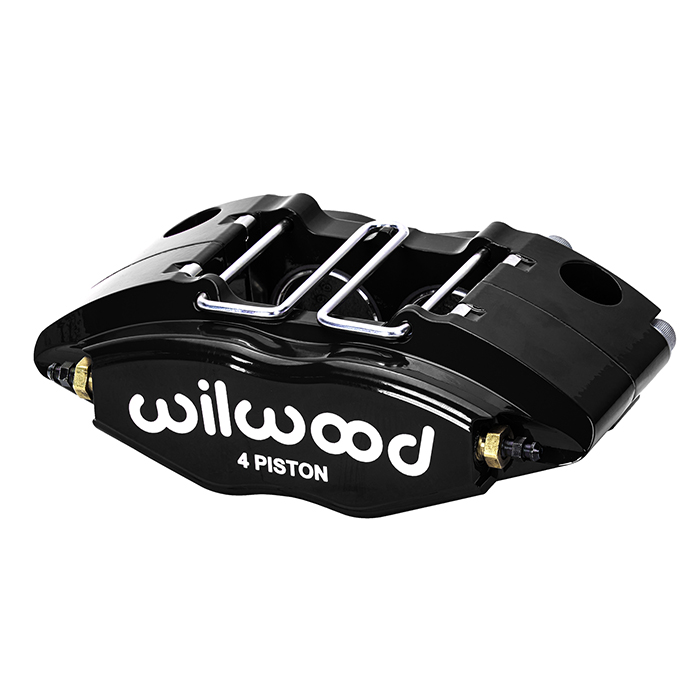

Powerlite Caliper - Black Powder Coat Powerlite Caliper - Black Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-17484-BK
Right Hand - Part No: 160-17484-BK
Type: SRP Drilled Rotor & Hat
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 11.38
Width (in): 0.81
Vane Count: 36 CV
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
SRP Drilled Rotor & Hat - Iron - Black Electro Coat SRP Drilled Rotor & Hat - Iron - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-4320
Replacement Dustboot: N-A
Replacement Piston 1: 200-12952
Replacement Piston 2: 200-12952
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 300-8697
Bleed Screw Kit: 220-6069
Brake Lines
Front Line Kit:
 		220-17483
Hat
Bolt Kit:
Hub
Bolt Kit:
