UTV4 Rear Brake Kit (Race)
Prod #: 140-17039
Price: $1,414.91

Rear Brake Kit - Rear Kit


Kit Contents

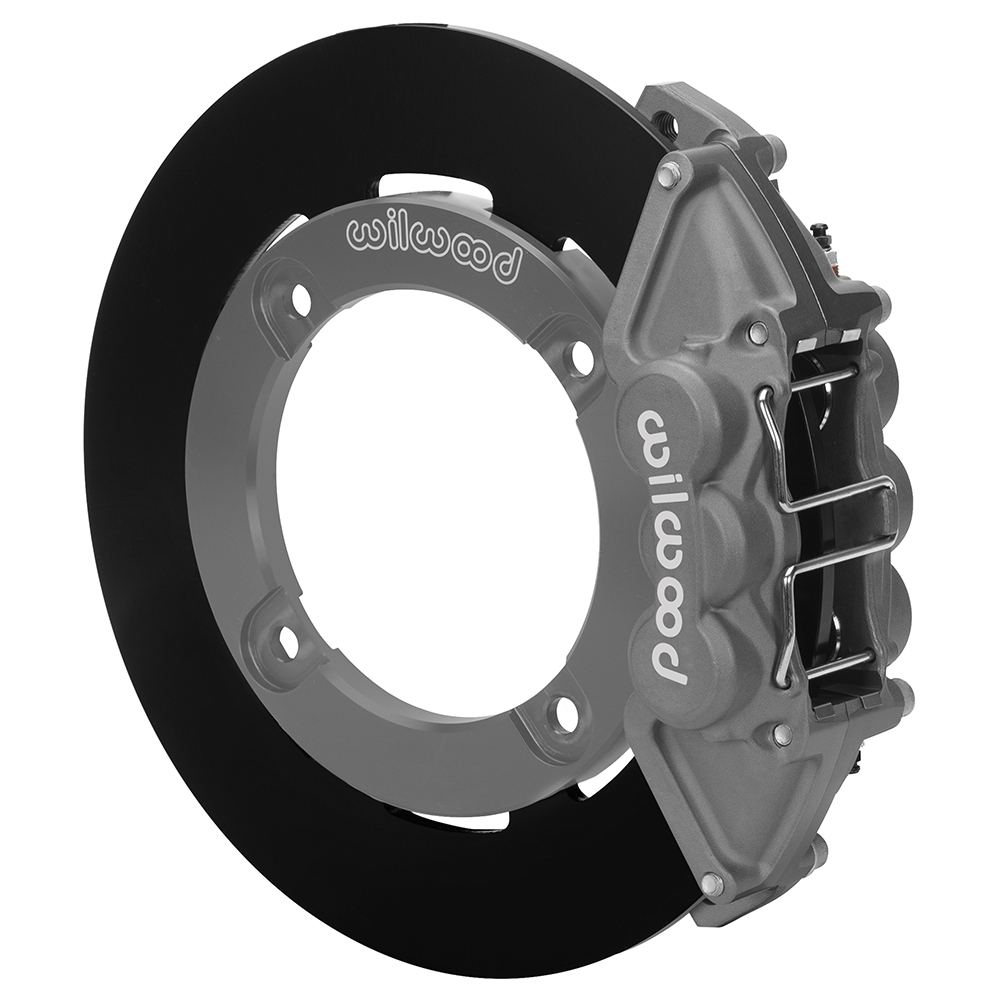

Wilwood UTV4 Rear Brake Kit (Race) Parts Laid Out - Type III Anodize Caliper - Plain Face Rotor Wilwood UTV4 Rear Brake Kit (Race) Parts Laid Out - Type III Anodize Caliper - Plain Face Rotor Zoom Image



Kit Summary
Rear End Axle: OEM
Axle Offset: 0.00
Mount Type: Lug
Caliper Type: 4 - Type III Anodize
Rotor Diameter: 11.25
Min Wheel Diameter Req'd*: 14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545107746

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


UTV4 Rear Brake Kit (Race)

Wilwood’s matched front and rear UTV Race brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, BP-20 (High Friction) brake pads and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs. Forged aluminum differential-bore four and six piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction steel rotors, are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain.


Fitment & Installation Details

UTV4 Rear Brake Kit (Race) Assembly Schematic

UTV4 Rear Brake Kit (Race) Assembly Schematic UTV4 Rear Brake Kit (Race) Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange 		Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0.00
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image
Part 1
Notes





Compatible Vehicles for this Brake Kit

BRAKE KIT:   UTV4 Rear Brake Kit (Race)

This Brake Kit is Compatible with the Following Vehicle Makes:   Honda

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
fitment 1
Offset: 0.00


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-16572
Right Hand - Part No: 120-16572
Type: UTV4
Finish Color: Type III Anodize
Piston Count: 4
Piston 1 Bore (in): 1.00
Piston 2 Bore (in): 1.00
Piston Area (In²): 1.58
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7812
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-28

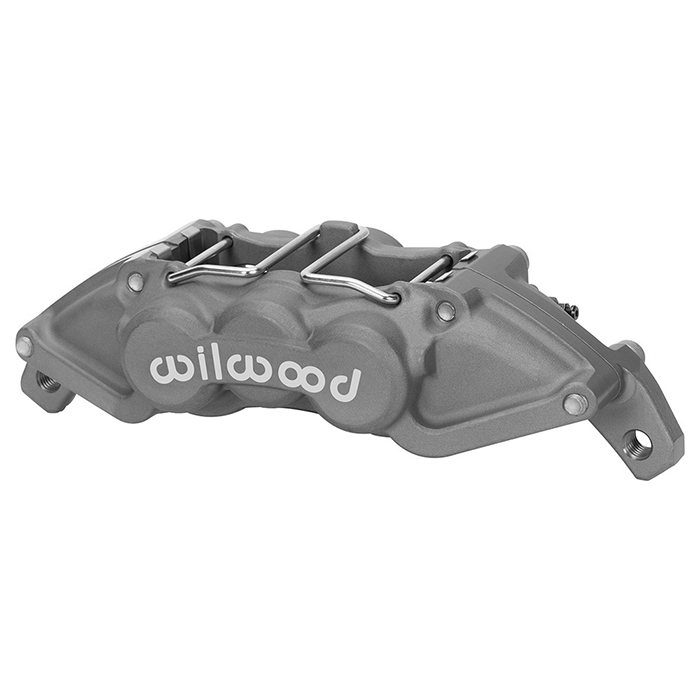

UTV4 Caliper - Type III Anodize UTV4 Caliper - Type III Anodize Zoom Image
Rotors
Left Hand - Part No: 160-16515
Right Hand - Part No: 160-16515
Type: Solid Steel Rotor
Style: Plain Face
Surface Finish: Black Electro Coat
Material: Steel
Outside Diameter (in): 11.25
Width (in): 0.25
Vane Count: Solid
Design Type: Solid
Bedded: No
Dynamically Balanced: No
Solid Steel Rotor - Steel - Black Electro Coat Solid Steel Rotor - Steel - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-4320
Replacement Dustboot: N-A
Replacement Piston 1: 200-12953
Replacement Piston 2: 200-12953
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit:
Wear Plate - Left Hand: 300-10829
Wear Plate - Right Hand: 300-10828
Pad Retainer: 300-16565
Bleed Screw Kit: 220-0627
Brake Lines
Hat
Bolt Kit:
Hub
Bolt Kit:
