UTV4 Rear Brake Kit
Prod #: 140-16629-DR
Price: $1,446.91
Rear Brake Kit - Rear Kit


Kit Contents

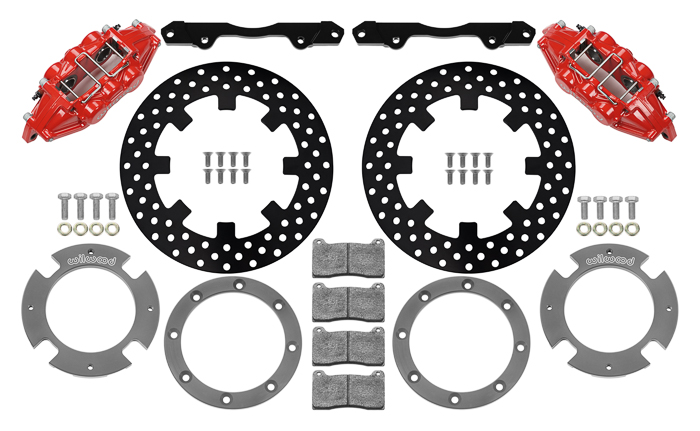

Wilwood UTV4 Rear Brake Kit Parts Laid Out - Red Powder Coat Caliper - Drilled Rotor Wilwood UTV4 Rear Brake Kit Parts Laid Out - Red Powder Coat Caliper - Drilled Rotor Zoom Image



Kit Summary
Rear End Axle: OEM
Axle Offset: 0.00
Mount Type: Lug
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 11.25
Min Wheel Diameter Req'd*: 14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545108217

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


UTV4 Rear Brake Kit

Wilwood’s matched front and rear UTV brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs. Forged aluminum differential-bore four and six piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction steel rotors, are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain.


Fitment & Installation Details

UTV4 Rear Brake Kit Assembly Schematic

UTV4 Rear Brake Kit Assembly Schematic UTV4 Rear Brake Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange 		Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0.00
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image
Part 1
Notes





Compatible Vehicles for this Brake Kit

BRAKE KIT:   UTV4 Rear Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   Can-Am

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
fitment 1
Offset: 0.00


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-16571-RD
Right Hand - Part No: 120-16571-RD
Type: UTV4
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston Area (In²): 1.98
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7812
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10

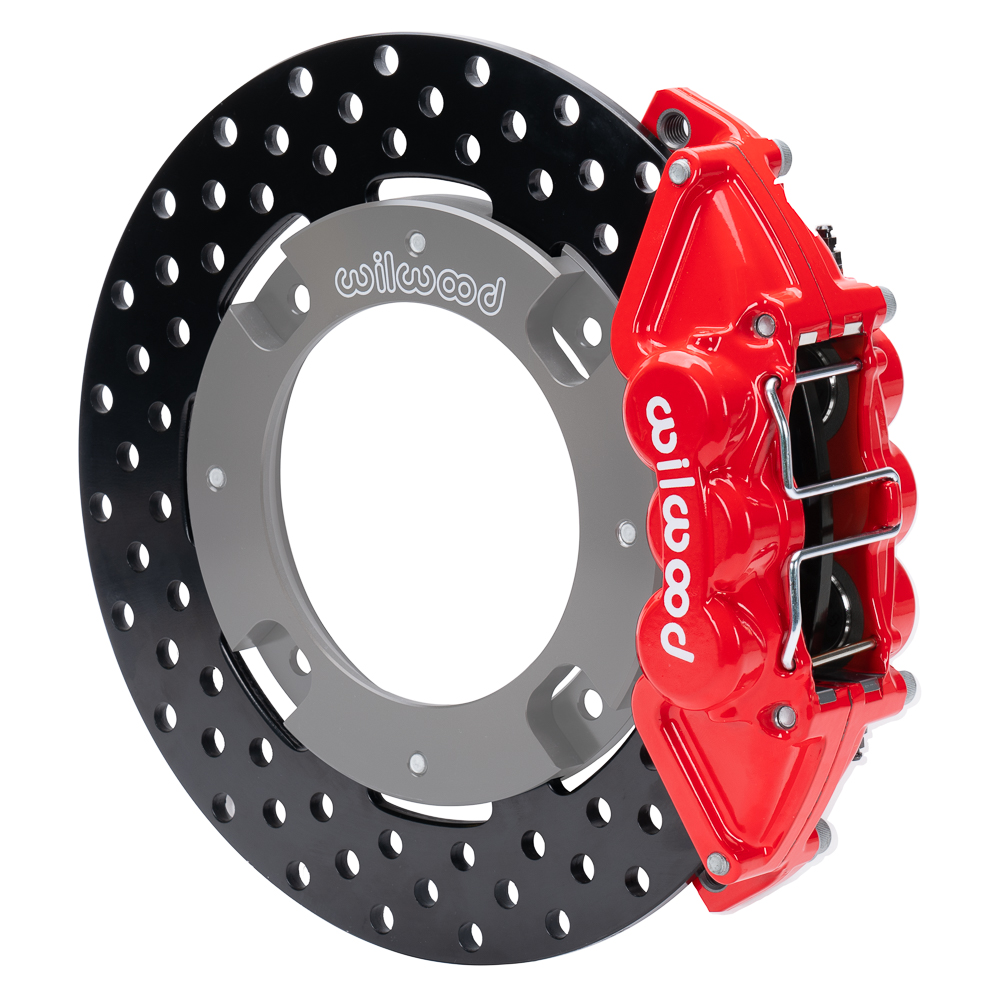

UTV4 Caliper - Red Powder Coat UTV4 Caliper - Red Powder Coat Zoom Image
