Forged Dynalite-MC4 Rear Parking Brake Kit
Prod #: 140-14259-D
Price: $1,417.90
Rear Brake Kit - Rear Kit


Kit Contents

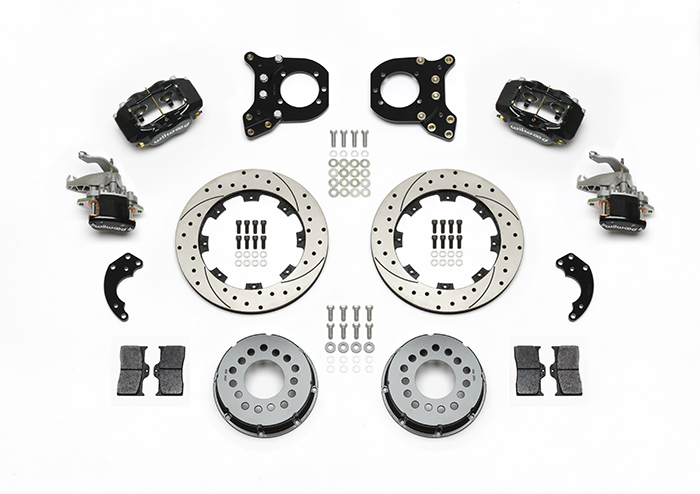

Wilwood Forged Dynalite-MC4 Rear Parking Brake Kit Parts Laid Out - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Wilwood Forged Dynalite-MC4 Rear Parking Brake Kit Parts Laid Out - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Rear End Axle: 12 Bolt C-Clip Eliminator
Axle Offset: 2.91
Mount Type: Lug
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545078626

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Dynalite-MC4 Rear Parking Brake Kit

FDL Pro-Series MC4 Parking rear disc brake kits with parking brake provide a complete solution for popular muscle car rear axles on applications where internal drum parking brake assemblies interfere with c-clip eliminator assemblies. Forged Billet Dynalite four piston calipers, MC4 Parking Brake calipers, two-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of off-road, competition, and other customized applications. FDL calipers can be optioned with a full range of finishes to reflect personalized style. Rotor choices provide options for high-tech show winning style, or heavy weight durability and cooling capacity for high heat competition.


Fitment & Installation Details

Forged Dynalite-MC4 Rear Parking Brake Kit Assembly Schematic

Forged Dynalite-MC4 Rear Parking Brake Kit Assembly Schematic Forged Dynalite-MC4 Rear Parking Brake Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

12 Bolt C-Clip Eliminator Flange 		Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 2.91
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image
Part 1
Notes
1. For use with modified axle housing ends with aftermarket C-clip Eliminator kits.
2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.



Compatible Vehicles for this Brake Kit

BRAKE KIT:   Forged Dynalite-MC4 Rear Parking Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   12 Bolt C-Clip Eliminator - Rear Kit

AXLE OFFSET:   2.91

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
fitment 1
Offset: 2.91


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13839-BK
Right Hand - Part No: 120-13839-BK
Type: Forged Dynalite Internal
Finish Color: Black Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.38
Piston 2 Bore (in): 1.38
Piston Area (In²): 3.00
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10

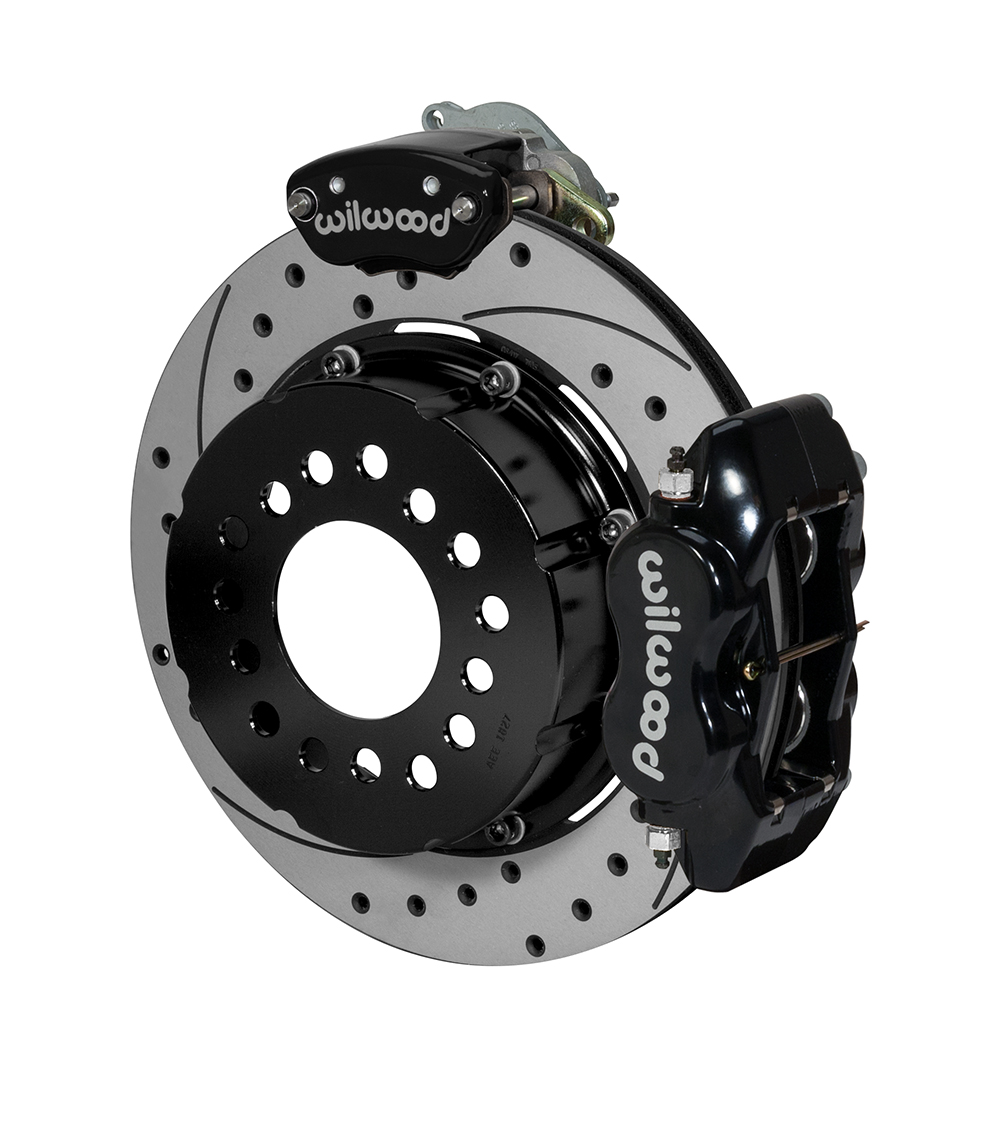

Forged Dynalite Internal Caliper - Black Powder Coat Forged Dynalite Internal Caliper - Black Powder Coat Zoom Image
