Rear Brake Kit – Part No: 140-13648-R
Call (805) 388-1188
Forged Narrow Superlite 4R Big Brake Rear Kit
Prod #: 140-13648-R
Price: $2,054.90
Rear Brake Kit - Rear Kit


Kit Contents

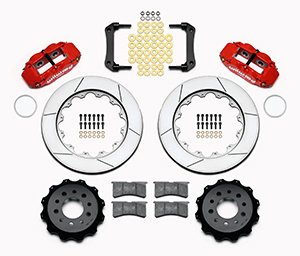

Wilwood Forged Narrow Superlite 4R Big Brake Rear Kit Parts Laid Out - Red Powder Coat Caliper - GT Slotted Rotor Wilwood Forged Narrow Superlite 4R Big Brake Rear Kit Parts Laid Out - Red Powder Coat Caliper - GT Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Rear End Axle: Morrison Multilink IRS
Axle Offset: 0.00
Mount Type: Radial
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 14.00
Min Wheel Diameter Req'd*: 18
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545020922

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Narrow Superlite 4R Big Brake Rear Kit

Forged Narrow Superlite 4R four piston calipers are combined with BP-10 compound pads and 14” rotors in this group of big brake kits for custom high performance street and show machines. This group of specialized kits retain full use of the OE master cylinder output and ABS where used. FNSL4R rear kits provide complimentary style and performance with 14” and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications.


Fitment & Installation Details

Forged Narrow Superlite 4R Big Brake Rear Kit Assembly Schematic

Forged Narrow Superlite 4R Big Brake Rear Kit Assembly Schematic Forged Narrow Superlite 4R Big Brake Rear Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

Morrison Multilink IRS Flange 		Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0.00
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image
Part 1
Notes





Compatible Vehicles for this Brake Kit

BRAKE KIT:   Forged Narrow Superlite 4R Big Brake Rear Kit

This Brake Kit is Compatible with the Following Vehicle Makes:

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   Morrison Multilink IRS - Rear Kit

AXLE OFFSET:   0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
fitment 1
Offset: 0.00


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-11876-RD
Right Hand - Part No: 120-11876-RD
Type: Forged Narrow Superlite 4R
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston Area (In²): 1.98
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7416
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 3.8
Pad Compound: BP-10

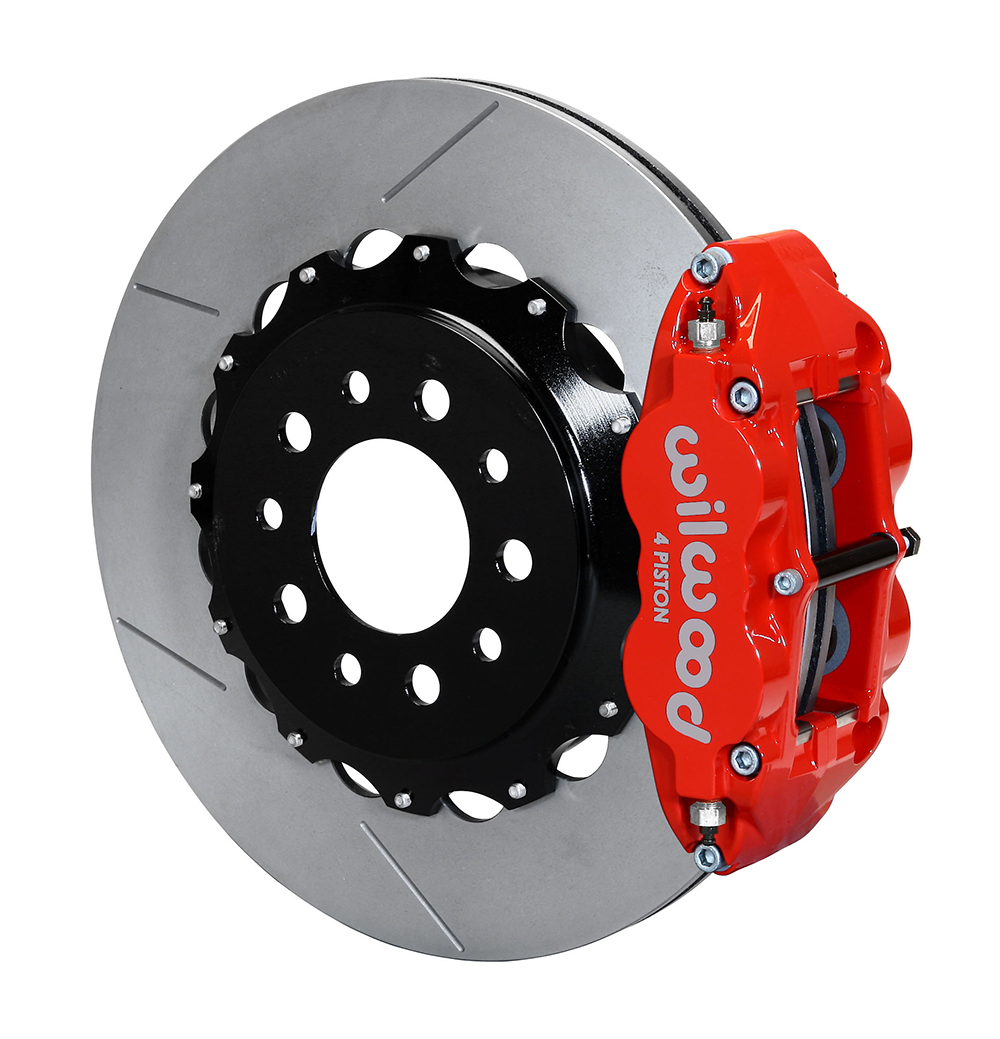

Forged Narrow Superlite 4R Caliper - Red Powder Coat Forged Narrow Superlite 4R Caliper - Red Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-12884
Right Hand - Part No: 160-12884
Type: GT 36 Straight Vane
Style: GT Slotted
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 14.00
Width (in): 0.81
Vane Count: 36 V
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
GT 36 Straight Vane - Iron - Plain GT 36 Straight Vane - Iron - Plain Zoom Image
Rotor Hats
Hat - Part No: 170-11306
Type: Parking Brake Hat - Standard
Material: Iron
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.730
Bolt Circle 1: 5 X 4.75
Bolt Circle 2: 5 X 4.72
Bolt Circle 3: 5 X 4.50
Stud Diameter - BC 1: 0.520
Stud Diameter - BC 2: 0.640
Stud Diameter - BC 3: 0.520
Parking Brake Hat - Standard - Iron - Black E-Coat Parking Brake Hat - Standard - Iron - Black E-Coat Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2579
Replacement Dustboot: N-A
Replacement Piston 1: 200-8439
Replacement Piston 2: 200-8439
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit:
Wear Plate - Left Hand: 300-6596
Wear Plate - Right Hand: 300-6595
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Hat
Bolt Kit: 230-8217
Hub
Bolt Kit:

Additional related products:




More Details
More Details
More Details
More Details






All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
     Copyright ©2021 Wilwood Engineering, Inc. - All Rights Reserved
Version: 3.05 June 23, 2023
