Rear Brake Kit – Part No: 140-11323
Billet Narrow Dynalite Radial Mount Sprint Inboard Brake Kit
Prod #:
140-11323
Price:
$727.11
Rear Brake Kit - Rear Kit
|
Kit Contents
|

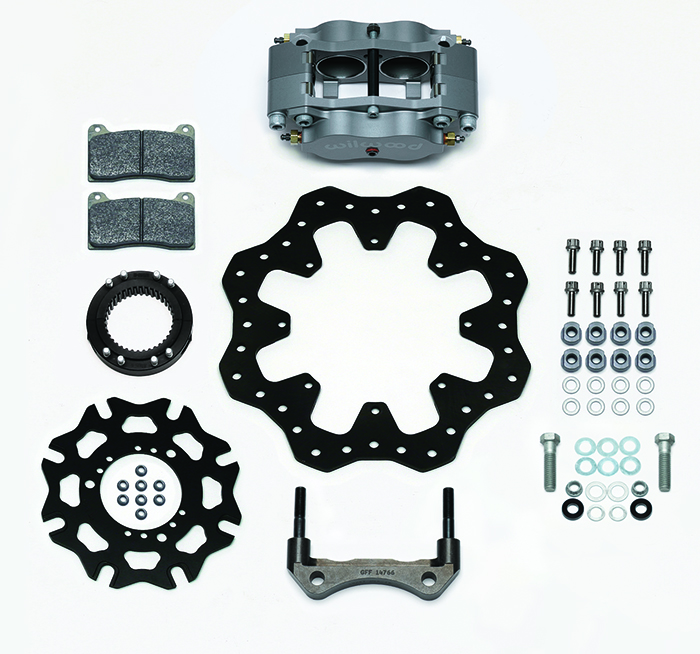

Wilwood Billet Narrow Dynalite Radial Mount Sprint Inboard Brake Kit Parts Laid Out - Type III Anodize Caliper - Drilled Rotor
Click Image to Close
|
|
|
Kit Summary
|
|
Rear End Axle:
|
OEM
|
|
Axle Offset:
|
0.00
|
|
Mount Type:
|
Radial
|
|
Caliper Type:
|
4 - Type III Anodize
|
|
Rotor Diameter:
|
11.75
|
|
Min Wheel Diameter Req'd*:
|
|
|
*This Brake Kit may fit -inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Wheel Clearance Diagram
|
| UPC Number |
| UPC |
889545012620 |
Billet Narrow Dynalite Radial Mount Sprint Inboard Brake Kit
Billet Narrow Dynalite Radial Sprint Inboard Kit Features: A fully engineered bolt-on brake system for sprint car quick change rears with 3.00 x 46 splined axles. With 11.75" x .350 Scalloped / Drilled steel rotor and a newly designed dynamic mount rotor axle clamp, offer the lowest rotating weight available for Sprint racing. The lightweight advantages of Wilwood Sprint rotors are fortified with the high durability, long wear, and superior heat control properties of advanced materials. Newly redesigned Type III hard anodize Billet Dynalite Radial mount calipers with BP-40 pads, produce superior stopping power and consistent fade-free response. Kit includes Axle Clamp with Dual Mount Rotor Adapter with T-nuts, radial mount bracket assembly and mounting hardware.
Fitment & Installation Details
Compatible Vehicles for this Brake Kit
BRAKE KIT:
Billet Narrow Dynalite Radial Mount Sprint Inboard Brake Kit
This Brake Kit is Compatible with the Following Vehicle Makes:
Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
REAR END:
OEM - Rear Kit
AXLE OFFSET:
0.00
For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
Kit Components & Specifications
|
Calipers
|
|
Left Hand - Part No:
|
120-13405-SI
|
|
Right Hand - Part No:
|
|
|
Type:
|
Narrow Dynalite Radial Mount
|
|
Finish Color:
|
Type III Anodize
|
|
Piston Count:
|
4
|
|
Piston 1 Bore (in):
|
1.75
|
|
Piston 2 Bore (in):
|
1.75
|
|
Piston Area (In²):
|
4.80
|
|
Piston Type:
|
Stainless
|
|
Mount Type:
|
Radial
|
|
Brake Pad Plate:
|
7816
|
|
Brake Pad Area (In²):
|
6.36
|
|
Brake Pad Volume (In³):
|
3
|
|
Pad Compound:
|
BP-40
|
Narrow Dynalite Radial Mount Caliper - Type III Anodize
Click Image to Close
|
|
Rotors
|
|
Left Hand - Part No:
|
160-9772
|
|
Right Hand - Part No:
|
|
|
Type:
|
Drilled Steel
|
|
Style:
|
Drilled
|
|
Surface Finish:
|
Black Oxide
|
|
Material:
|
Steel
|
|
Outside Diameter (in):
|
11.75
|
|
Width (in):
|
0.35
|
|
Vane Count:
|
Solid
|
|
Design Type:
|
Steel Scalloped
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
No
|
Drilled Steel - Steel - Black Oxide
Click Image to Close
|
|
Rotor Hats
|
|
Hat - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Hat Offset Dimension (in):
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
|
Hubs
|
|
Hub - Part No:
|
270-12633
|
|
Type:
|
Sprint Inboard Hub Kit - Dynamic
|
|
Material:
|
Aluminum
|
|
Finish Color:
|
Type III Anodize
|
|
Mount Style:
|
Adapter-Dynamic
|
|
Bolt Circle 1:
|
Splined
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
Sprint Inboard Hub Kit - Dynamic - Aluminum - Type III Anodize
Click Image to Close
|
