Front Brake Kit – Part No: 140-7763-D
Superlite 6R Big Brake Front Brake Kit (Hat)
Prod #:
140-7763-D
Price:
$1,786.38
Front Brake Kit — 140-7763-D
Kit Contents
|

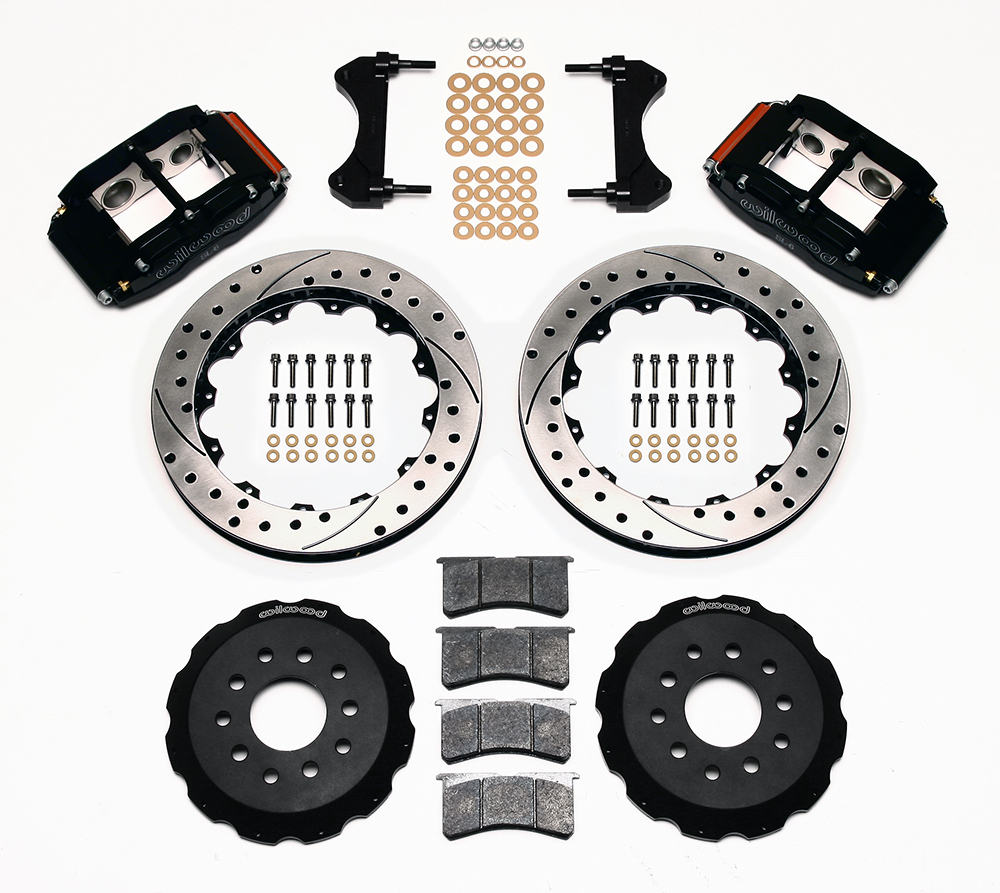

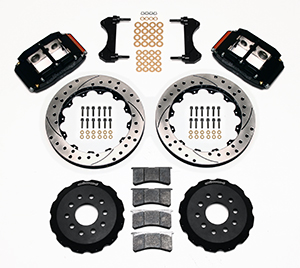

Wilwood Superlite 6R Big Brake Front Brake Kit (Hat) Parts Laid Out - Black Anodize Caliper - SRP Drilled & Slotted Rotor
Click Image to Close
|
|
Kit Summary
|
|
|
|
Spindle Type:
|
Factory Disc Spindle
|
Mount Type:
|
Radial
|
Caliper Type:
|
6 - Black Anodize
|
Rotor Diameter:
|
12.88
|
Min Wheel Diameter Req'd*:
|
17
|
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Wheel Clearance Diagram
|

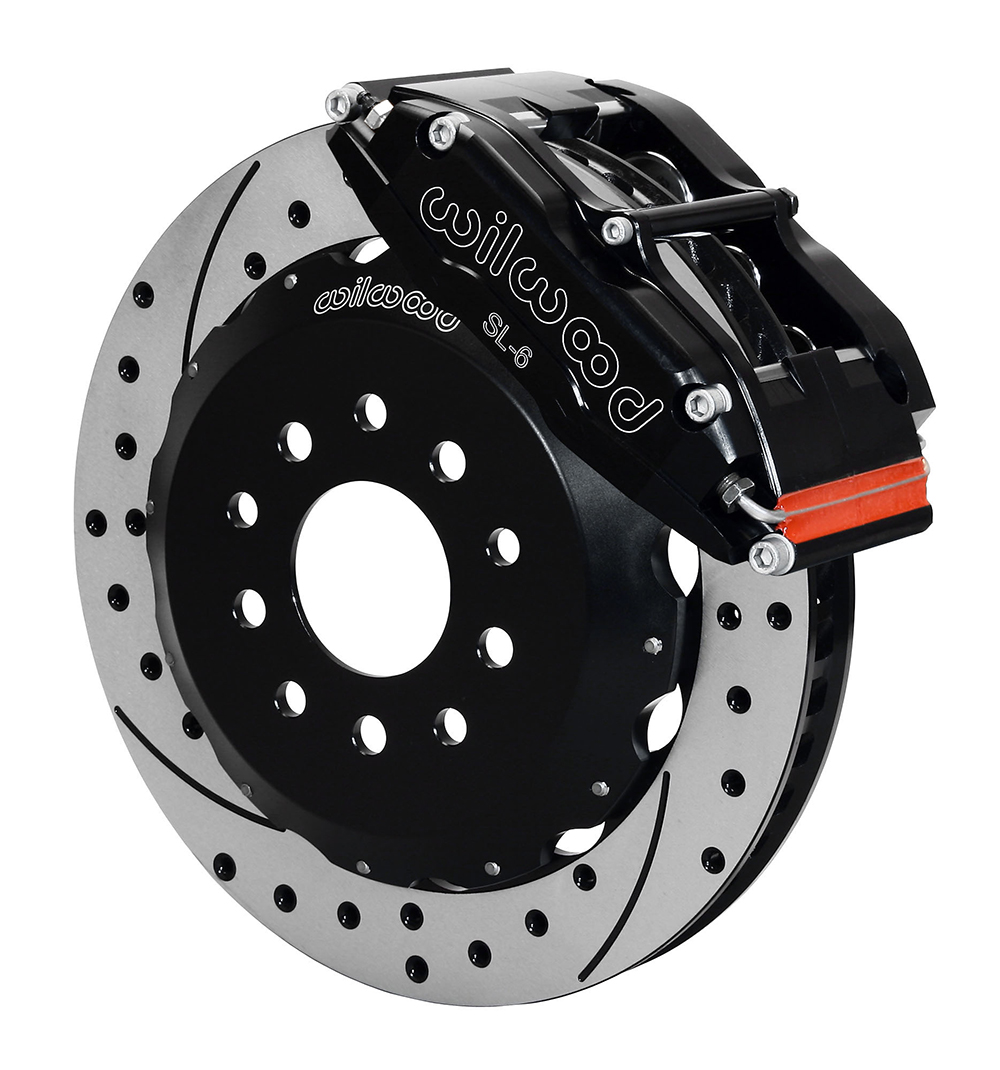

Superlite 6R Big Brake Front Brake Kit (Hat)
The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
Fitment & Installation Details
Kit Components & Specifications
Calipers
|
Left Hand - Part No:
|
120-7762-RS
|
Right Hand - Part No:
|
120-7761-RS
|
Type:
|
Billet Superlite 6R
|
Finish Color:
|
Black Anodize
|
Piston Count:
|
6
|
Piston 1 Bore (in):
|
1.62
|
Piston 2 Bore (in):
|
1.12
|
Piston 3 Bore (in):
|
1.12
|
Piston Area (In²):
|
4.04
|
Piston Type:
|
Stainless
|
Mount Type:
|
Radial
|
Brake Pad Plate:
|
7420
|
Brake Pad Area (In²):
|
8.2
|
Brake Pad Volume (In³):
|
4.9
|
Pad Compound:
|
BP-10
|
Billet Superlite 6R Caliper - Black Anodize
Click Image to Close
|
Rotors
|
Left Hand - Part No:
|
160-7173-BK
|
Right Hand - Part No:
|
160-7172-BK
|
Type:
|
SRP Drilled Rotor
|
Style:
|
SRP Drilled & Slotted
|
Surface Finish:
|
Black Electro Coat
|
Material:
|
Spec-37 Iron
|
Outside Diameter (in):
|
12.88
|
Width (in):
|
1.25
|
Vane Count:
|
48 CV
|
Design Type:
|
SRP-BLK
|
Bedded:
|
No
|
Dynamically Balanced:
|
Yes
|
SRP Drilled Rotor - Spec-37 Iron - Black Electro Coat
Click Image to Close
|
Rotor Hats
|
Hat - Part No:
|
170-6837
|
Type:
|
Big Brake Hat - Short Offset
|
Material:
|
Aluminum
|
Finish Color:
|
Black E-Coat
|
Hat Offset Dimension (in):
|
0.880
|
Bolt Circle 1:
|
5 x 4.50
|
Bolt Circle 2:
|
5 x 4.75
|
Bolt Circle 3:
|
|
Stud Diameter - BC 1:
|
0.560
|
Stud Diameter - BC 2:
|
0.520
|
Stud Diameter - BC 3:
|
0.000
|
Big Brake Hat - Short Offset - Aluminum - Black E-Coat
Click Image to Close
|
Hubs
|
Hub - Part No:
|
|
Type:
|
|
Material:
|
|
Finish Color:
|
|
Mount Style:
|
|
Bolt Circle 1:
|
|
Bolt Circle 2:
|
|
Bolt Circle 3:
|
|
Stud Diameter - BC 1:
|
|
Stud Diameter - BC 2:
|
|
Stud Diameter - BC 3:
|
|
*Brake Lines Needed
|
Front Line Kit:
|
220-6746
|
