Superlite 6 Big Brake Front Brake Kit (Hub, Less Brackets)
Prod #: 140-7461-DP
Price: $2,376.20

*Line Kit Needed


220-8307
$76.95
Front Brake Kit — 140-7461-DP


Kit Contents

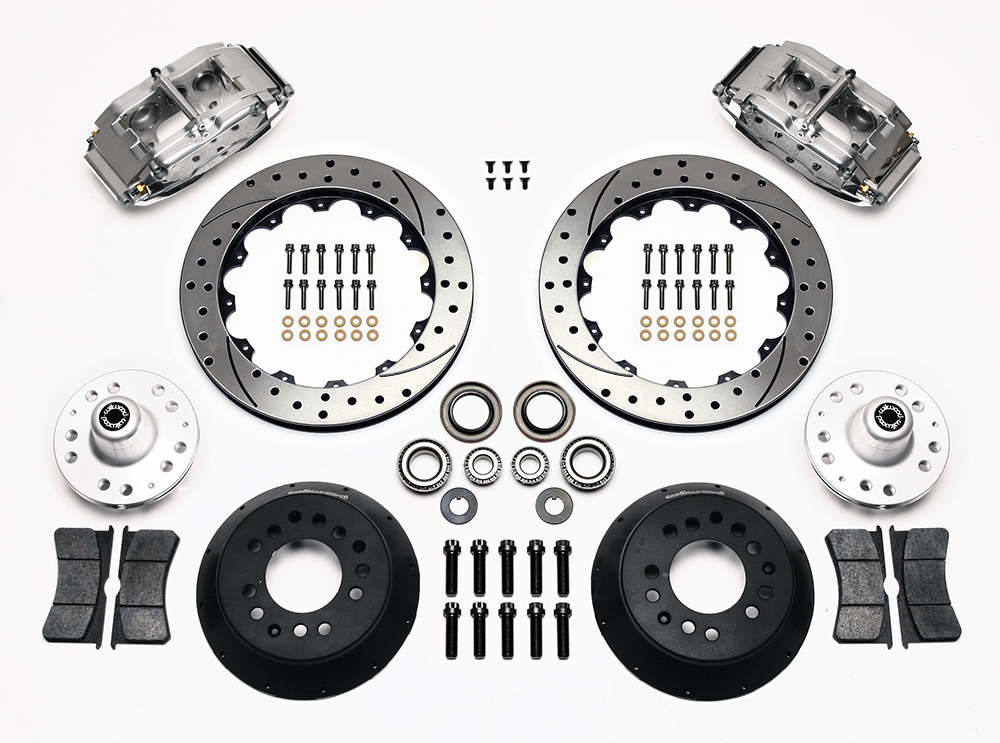

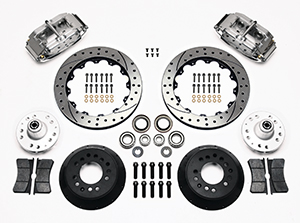

Wilwood Superlite 6 Big Brake Front Brake Kit (Hub, Less Brackets) Parts Laid Out - Polish Caliper - SRP Drilled & Slotted Rotor Wilwood Superlite 6 Big Brake Front Brake Kit (Hub, Less Brackets) Parts Laid Out - Polish Caliper - SRP Drilled & Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
OE Hub Offset: +.68
(Increase / Decrease Track Width)
Spindle Type: Factory Disc Spindle Factory Drum Spindle
Mount Type: Lug
Caliper Type: 6 - Polish
Rotor Diameter: 12.88
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545049701

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Superlite 6 Big Brake Front Brake Kit (Hub, Less Brackets)

SL6 Front Hub & Rotor Kits (less brackets) offers a disc brake upgrade solutions for custom spindle and brake applications. Based on the venerable Forged Billet Big Brake Hubs, Billet Superlite 6 Calipers, aluminum hats and 12.88” diameter rotors. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, Serious competition, or the most discriminating show enthusiast. Kits vary in hub type, rotor diameters and other hardware. FDL Hub & Rotor kits do not contain brackets or bracket mounting hardware. Please download the data sheet listed for each kit for a list of kit contents.


Fitment & Installation Details

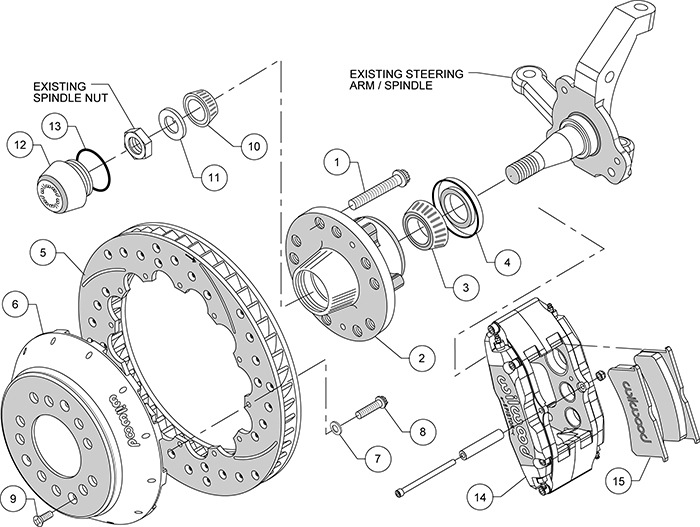

Superlite 6 Big Brake Front Brake Kit (Hub, Less Brackets) Assembly Schematic

Superlite 6 Big Brake Front Brake Kit (Hub, Less Brackets) Assembly Schematic Superlite 6 Big Brake Front Brake Kit (Hub, Less Brackets) Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Superlite 6 Big Brake Front Brake Kit (Hub, Less Brackets)
SPINDLE TYPE:
Factory Disc Spindle; Factory Drum Spindle ;
This Brake Kit is Compatible with the Following Vehicle Makes: Ford Mercury

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF: +.68
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

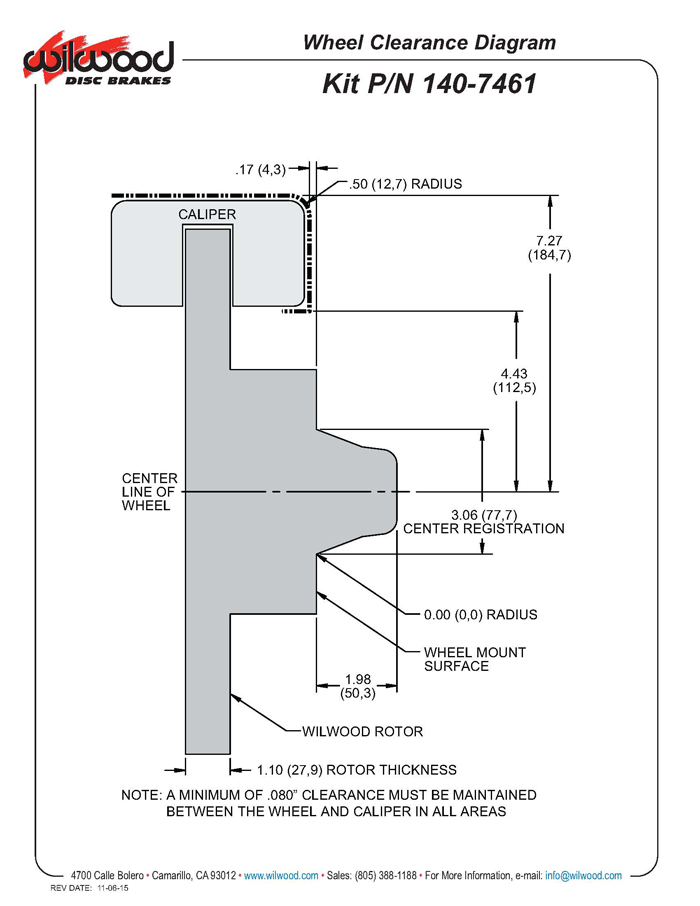

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. Kit includes 5 lug hubs. Not applicable to 4 lug vehicles.
2. No Brackets included w/ Kit.

Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13383-P
Right Hand - Part No: 120-13382-P
Type: Billet Superlite 6
Finish Color: Polish
Piston Count: 6
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.12
Piston 3 Bore (in): 1.12
Piston Area (In²): 4.04
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7416
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 3.8
Pad Compound: BP-10
Billet Superlite 6 Caliper - Polish Billet Superlite 6 Caliper - Polish Zoom Image
Rotors
Left Hand - Part No: 160-13544-BK
Right Hand - Part No: 160-13543-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Spec-37 Iron
Outside Diameter (in): 12.88
Width (in): 1.10
Vane Count: 48 CV
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: Yes
SRP Drilled Rotor - Spec-37 Iron - Black Electro Coat SRP Drilled Rotor - Spec-37 Iron - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No: 170-6994
Type: Big Brake Hat - Flared Bell
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.880
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Bolt Circle 3:
Stud Diameter - BC 1: 0.520
Stud Diameter - BC 2: 0.520
Stud Diameter - BC 3: 0.000
Big Brake Hat - Flared Bell - Aluminum - Black E-Coat Big Brake Hat - Flared Bell - Aluminum - Black E-Coat Zoom Image
Hubs
Hub - Part No: 270-6989
Type: Hub - Hat Mount
Material: Aluminum
Finish Color: Bare
Mount Style: Hat
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Bolt Circle 3:
Stud Diameter - BC 1: 1/2-20
Stud Diameter - BC 2: 1/2-20
Stud Diameter - BC 3:
Hub - Hat Mount - Aluminum - Bare Hub - Hat Mount - Aluminum - Bare Zoom Image

Parts & Accessories
Caliper Parts
O-ring Kit: 130-5972
Replacement Dustboot: N-A
Replacement Piston 1: 200-7520
Replacement Piston 2: 200-8439
Replacement Piston 3: 200-8439
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 230-7710
Wear Plate - Left Hand: 300-6596
Wear Plate - Right Hand: 300-6595
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Front Line Kit:
 		220-8307
Hat
Bolt Kit: 230-4572
Hub
Bolt Kit:
