Front Brake Kit – Part No: 140-6154
Superlite 6 Big Brake Front Brake Kit (Hub)
Prod #:
140-6154
Price:
$2,094.38
Front Brake Kit — 140-6154
|
Kit Contents
|

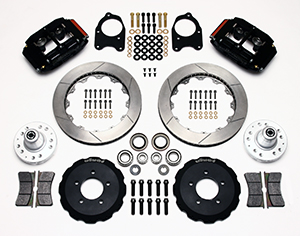

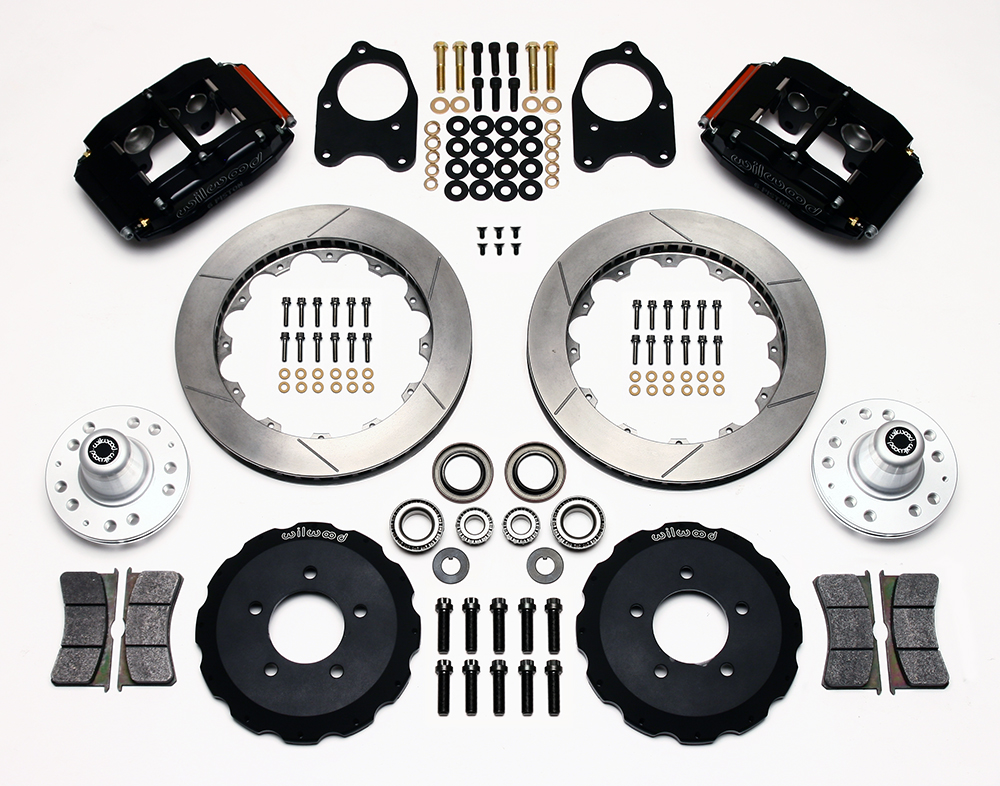

Wilwood Superlite 6 Big Brake Front Brake Kit (Hub) Parts Laid Out - Black Anodize Caliper - GT Slotted Rotor
Click Image to Close
|
|
|
Kit Summary
|
|
OE Hub Offset:
|
+.15
|
|
(Increase / Decrease Track Width)
|
|
Spindle Type:
|
Factory Disc Spindle
|
|
Mount Type:
|
Lug
|
|
Caliper Type:
|
6 - Black Anodize
|
|
Rotor Diameter:
|
12.88
|
|
Min Wheel Diameter Req'd*:
|
17
|
|
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

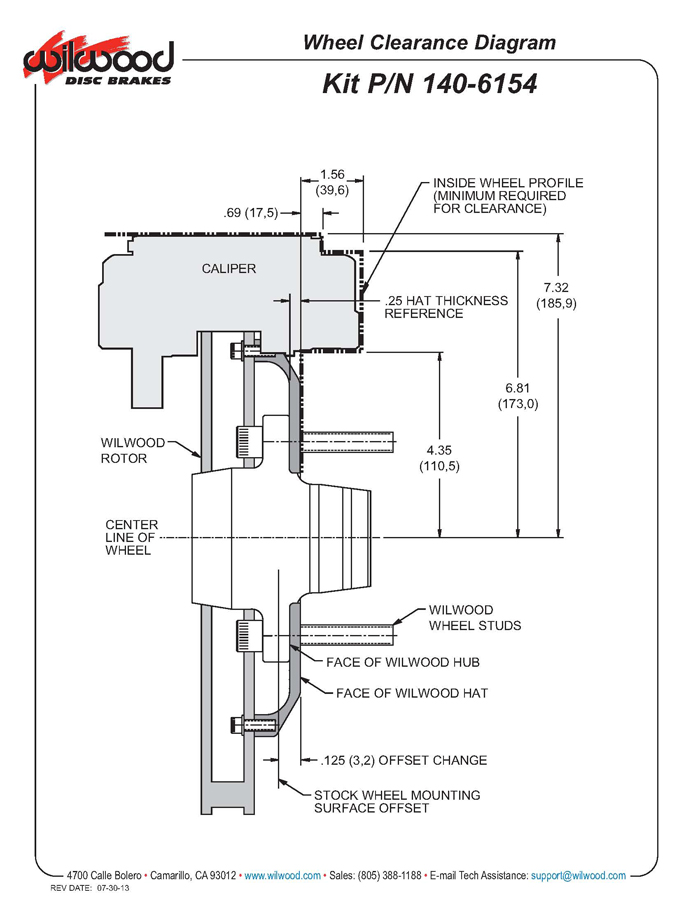

Wheel Clearance Diagram
|
| UPC Number |
| UPC |
889545022889 |
Superlite 6 Big Brake Front Brake Kit (Hub)
SL6 forged billet six-piston calipers with 13”-14” rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17” and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Fitment & Installation Details
Kit Components & Specifications
|
Calipers
|
|
Left Hand - Part No:
|
120-5961-RS
|
|
Right Hand - Part No:
|
120-5960-RS
|
|
Type:
|
Billet Superlite 6
|
|
Finish Color:
|
Black Anodize
|
|
Piston Count:
|
6
|
|
Piston 1 Bore (in):
|
1.62
|
|
Piston 2 Bore (in):
|
1.12
|
|
Piston 3 Bore (in):
|
1.12
|
|
Piston Area (In²):
|
4.04
|
|
Piston Type:
|
Stainless
|
|
Mount Type:
|
Lug
|
|
Brake Pad Plate:
|
7420
|
|
Brake Pad Area (In²):
|
8.2
|
|
Brake Pad Volume (In³):
|
4.9
|
|
Pad Compound:
|
BP-10
|
Billet Superlite 6 Caliper - Black Anodize
![]()
Click Image to Close
|
|
Rotors
|
|
Left Hand - Part No:
|
160-4565
|
|
Right Hand - Part No:
|
160-4564
|
|
Type:
|
GT 48 Curved Vane
|
|
Style:
|
GT Slotted
|
|
Surface Finish:
|
Plain
|
|
Material:
|
Spec-37 Iron
|
|
Outside Diameter (in):
|
12.88
|
|
Width (in):
|
1.25
|
|
Vane Count:
|
48 CV
|
|
Design Type:
|
GT
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
Yes
|
GT 48 Curved Vane - Spec-37 Iron - Plain
Click Image to Close
|
|
Rotor Hats
|
|
Hat - Part No:
|
170-6126
|
|
Type:
|
Big Brake Hat - Short Offset
|
|
Material:
|
Aluminum
|
|
Finish Color:
|
Black E-Coat
|
|
Hat Offset Dimension (in):
|
0.810
|
|
Bolt Circle 1:
|
5 x 4.50
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
0.520
|
|
Stud Diameter - BC 2:
|
0.000
|
|
Stud Diameter - BC 3:
|
0.000
|
Big Brake Hat - Short Offset - Aluminum - Black E-Coat
Click Image to Close
|
|
Hubs
|
|
Hub - Part No:
|
270-3268
|
|
Type:
|
Hub - Hat Mount
|
|
Material:
|
Aluminum
|
|
Finish Color:
|
Bare
|
|
Mount Style:
|
Hat
|
|
Bolt Circle 1:
|
5 x 4.50
|
|
Bolt Circle 2:
|
5 x 4.75
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
1/2-20
|
|
Stud Diameter - BC 2:
|
1/2-20
|
|
Stud Diameter - BC 3:
|
|
Hub - Hat Mount - Aluminum - Bare
Click Image to Close
|
|
*Brake Lines Needed
|
Front Line Kit:
|
220-6471
|
