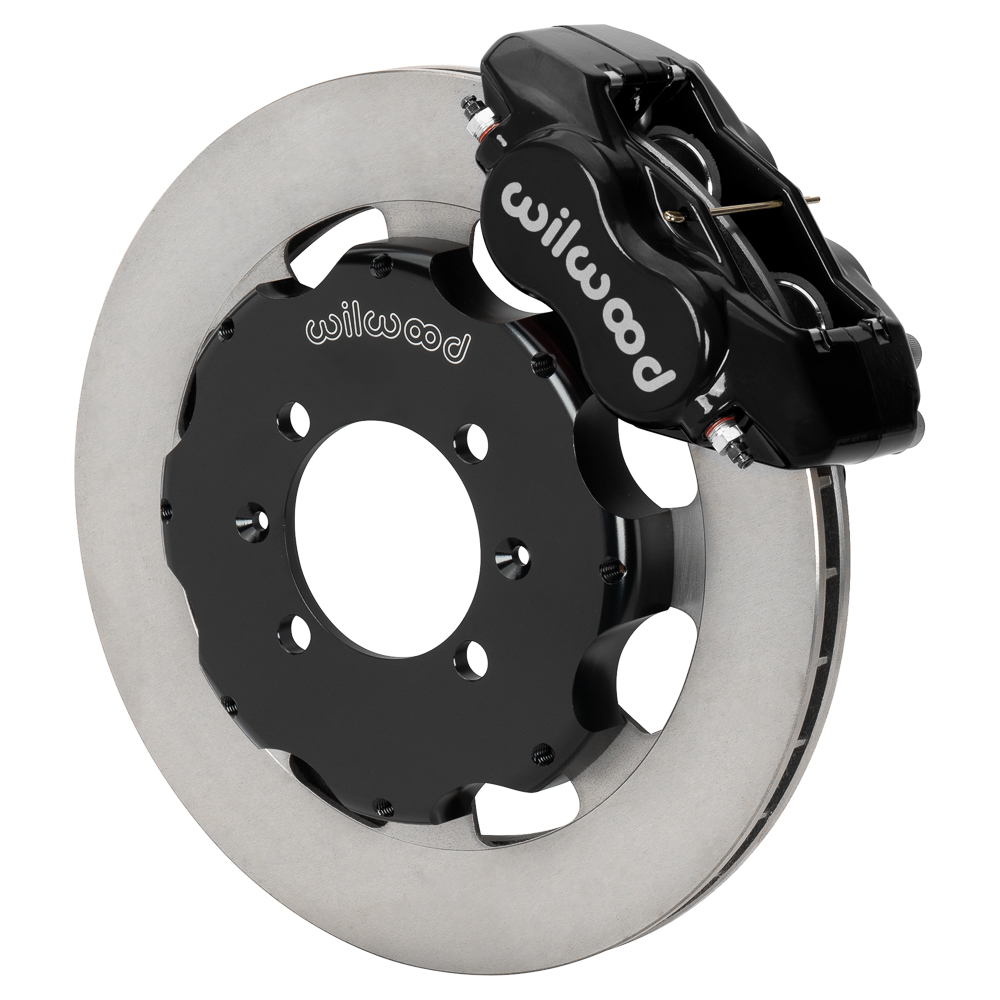

Front Brake Kit – Part No: 140-17937
Forged Dynalite Big Brake Front Brake Kit (Hat)
Prod #:
140-17937
Price:
$1,000.07
Available Brake Kit #140-17937 Configurations
Available Brake Kit #140-17937 Configurations
Front Brake Kit — 140-17937
|
Kit Contents
|

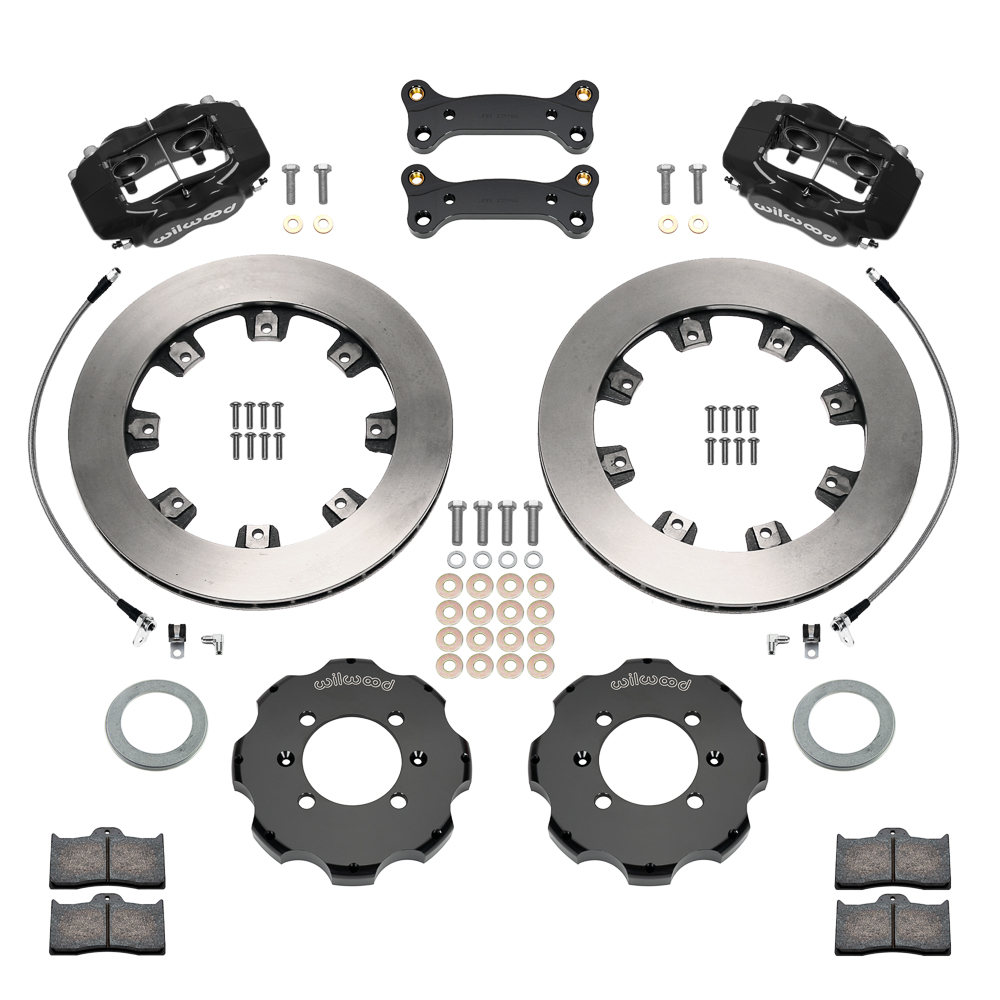

Wilwood Forged Dynalite Big Brake Front Brake Kit (Hat) Parts Laid Out - Black Powder Coat Caliper - Plain Face Rotor
Click Image to Close
|
View Custom Caliper Colors
|
|
Kit Summary
|
|
|
|
|
|
|
Spindle Type:
|
Factory Disc Spindle
|
|
Mount Type:
|
Lug
|
|
Caliper Type:
|
4 - Black Powder Coat
|
|
Rotor Diameter:
|
11.75
|
|
Min Wheel Diameter Req'd*:
|
15
|
|
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Wheel Clearance Diagram
|
| UPC Number |
| UPC |
889545120066 |
Forged Dynalite Big Brake Front Brake Kit (Hat)
Forged Dynalite ProSeries kits provide high performance, big brake stopping power by combining modern brake technology with high-tech styling to update the brakes on your compact sport vehicle. The OE calipers and rotors are replaced with forged aluminum, four-piston calipers mounted over larger diameter, certified alloy 30-vane vented iron rotors. The new two-piece rotor assemblies provide weight-saving forged aluminum mounting hats. The calipers feature an increase in effective piston volume to deliver higher clamping power with less pedal effort than stock. The thicker, vented rotor design adds cooling efficiency and durability to extend service life. BP-series SmartPads add high-response with increased resistance to fade and longer wear over typical OE replacement pads. Options for caliper colors and rotor styles are available to personalize the look on any car. For on-track driving enthusiasts, additional track-only fortifications are available on a custom order basis by contacting the technical staff at the factory.
Fitment & Installation Details
Kit Components & Specifications
|
Calipers
|
|
Left Hand - Part No:
|
120-13839-BK
|
|
Right Hand - Part No:
|
120-13839-BK
|
|
Type:
|
Forged Dynalite Internal
|
|
Finish Color:
|
Black Powder Coat
|
|
Piston Count:
|
4
|
|
Piston 1 Bore (in):
|
1.38
|
|
Piston 2 Bore (in):
|
1.38
|
|
Piston Area (In²):
|
3.00
|
|
Piston Type:
|
Stainless
|
|
Mount Type:
|
Lug
|
|
Brake Pad Plate:
|
7112
|
|
Brake Pad Area (In²):
|
6.36
|
|
Brake Pad Volume (In³):
|
2.1
|
|
Pad Compound:
|
BP-10
|
Forged Dynalite Internal Caliper - Black Powder Coat
Click Image to Close
|
|
Rotors
|
|
Left Hand - Part No:
|
160-5841
|
|
Right Hand - Part No:
|
160-5841
|
|
Type:
|
Ultralite HP 32
|
|
Style:
|
Plain Face
|
|
Surface Finish:
|
Plain
|
|
Material:
|
Iron
|
|
Outside Diameter (in):
|
11.75
|
|
Width (in):
|
0.81
|
|
Vane Count:
|
32 V
|
|
Design Type:
|
ULHP
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
No
|
Ultralite HP 32 - Iron - Plain
Click Image to Close
|
|
Rotor Hats
|
|
Hat - Part No:
|
170-10200
|
|
Type:
|
Big Brake Hat - Short Offset
|
|
Material:
|
Aluminum
|
|
Finish Color:
|
Black E-Coat
|
|
Hat Offset Dimension (in):
|
0.750
|
|
Bolt Circle 1:
|
4 x 3.93
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
0.500
|
|
Stud Diameter - BC 2:
|
0.000
|
|
Stud Diameter - BC 3:
|
0.000
|
Big Brake Hat - Short Offset - Aluminum - Black E-Coat
Click Image to Close
|
|
