Front Brake Kit – Part No: 140-17731
Call (805) 388-1188

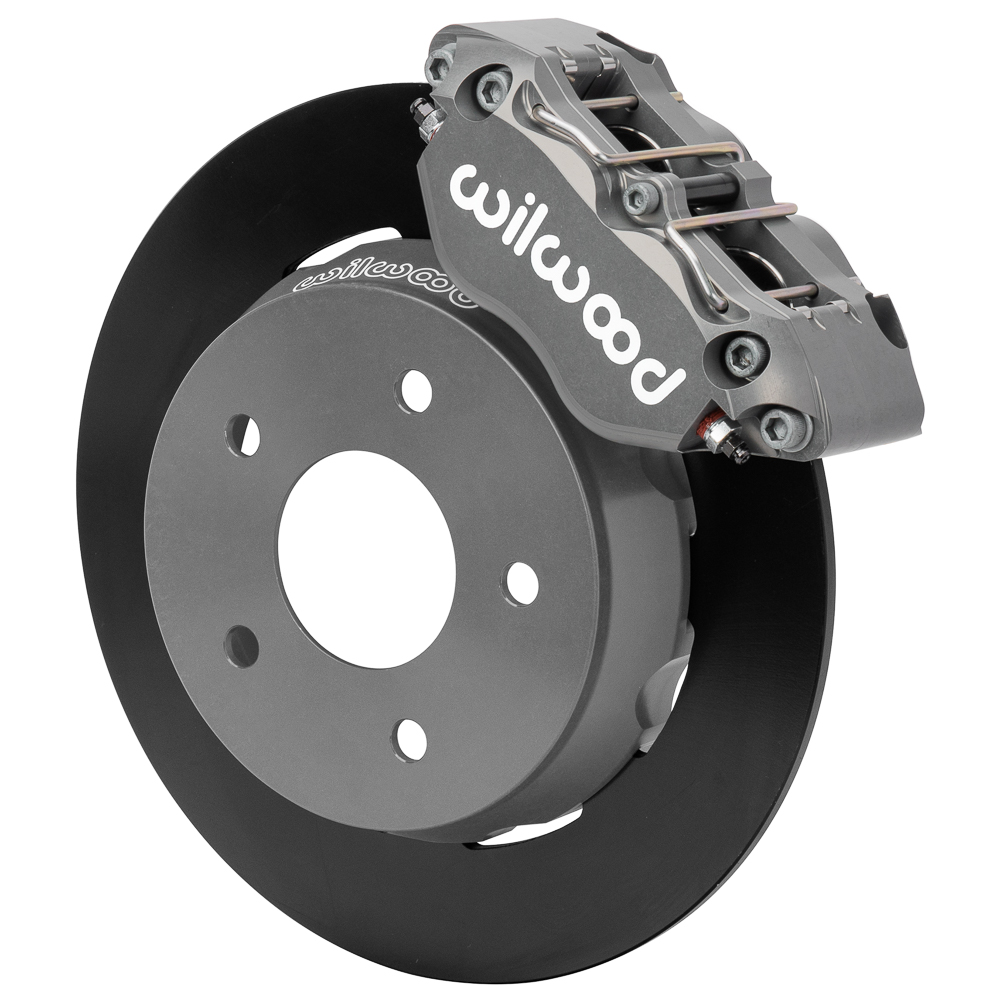

NDPR Front UTV Brake Kit (Race)
Prod #: 140-17731
Price: $1,499.96

Front Brake Kit — 140-17731


Kit Contents

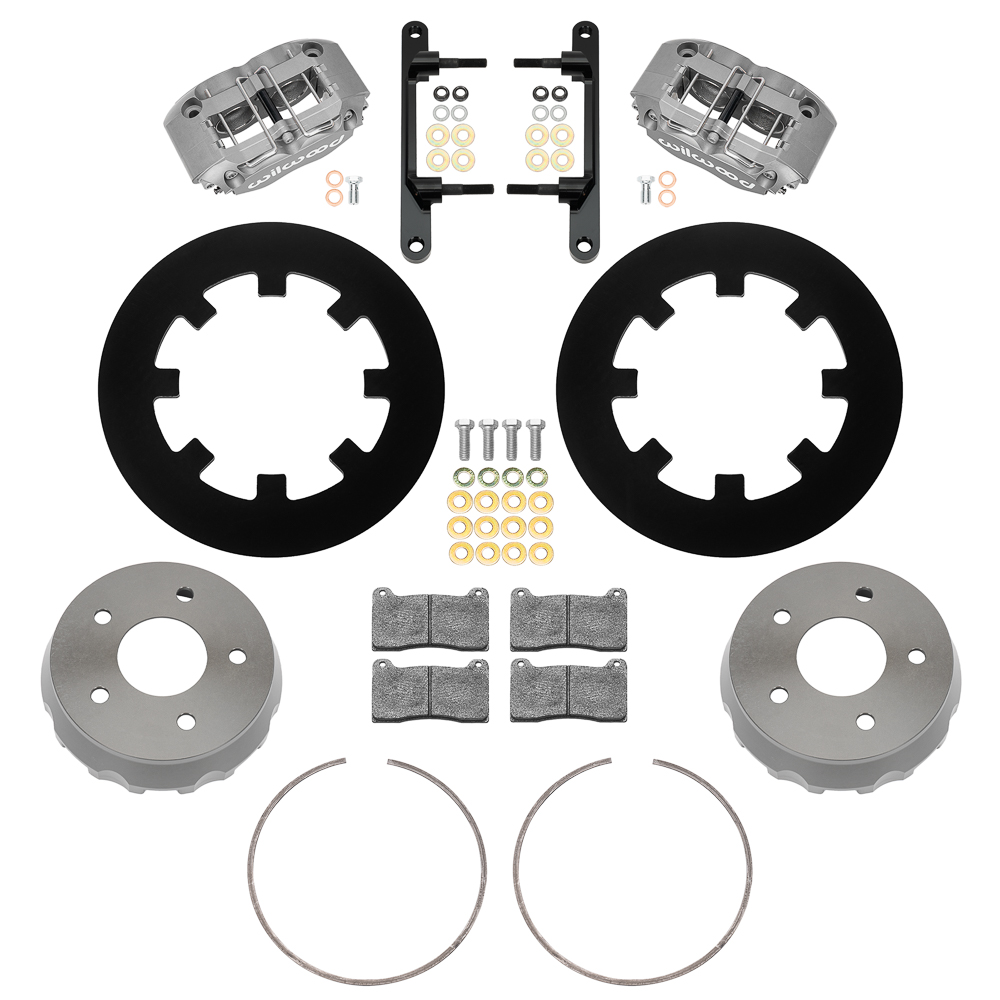

Wilwood NDPR Front UTV Brake Kit (Race) Parts Laid Out - Type III Anodize Caliper - Plain Face Rotor Wilwood NDPR Front UTV Brake Kit (Race) Parts Laid Out - Type III Anodize Caliper - Plain Face Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 - Type III Anodize
Rotor Diameter: 11.25
Min Wheel Diameter Req'd*: 14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545117578

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


NDPR Front UTV Brake Kit (Race)

Wilwood’s matched NDPR front and rear UTV brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs. Forged aluminum four piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction steel rotors, are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain.


Fitment & Installation Details


NDPR Front UTV Brake Kit (Race) Assembly Schematic

NDPR Front UTV Brake Kit (Race) Assembly Schematic NDPR Front UTV Brake Kit (Race) Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   NDPR Front UTV Brake Kit (Race)
SPINDLE TYPE:
; Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Polaris

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-17565
Right Hand - Part No: 120-17565
Type: NDPR
Finish Color: Type III Anodize
Piston Count: 4
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.75
Piston Area (In²): 4.80
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7812
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-28

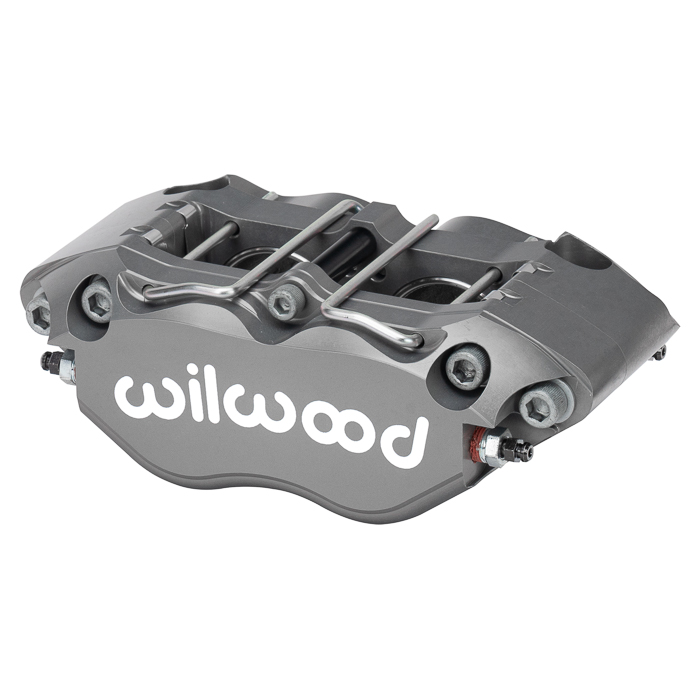

NDPR Caliper - Type III Anodize NDPR Caliper - Type III Anodize Zoom Image
Rotors
Left Hand - Part No: 160-16515
Right Hand - Part No: 160-16515
Type: Drilled Steel Rotor
Style: Plain Face
Surface Finish: Black Electro Coat
Material: Steel
Outside Diameter (in): 11.25
Width (in): 0.25
Vane Count: Solid
Design Type: Solid
Bedded: No
Dynamically Balanced: No
Drilled Steel Rotor - Steel - Black Electro Coat Drilled Steel Rotor - Steel - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No: 170-17569
Type: Big Brake Dynamic Lug Drive - Flared Bell
Material: Aluminum
Finish Color: Type III Anodize
Hat Offset Dimension (in): 1.220
Bolt Circle 1: 5 X 4.50
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.520
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000
Big Brake Dynamic Lug Drive - Flared Bell - Aluminum - Type III Anodize Big Brake Dynamic Lug Drive - Flared Bell - Aluminum - Type III Anodize Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2655
Replacement Dustboot: N-A
Replacement Piston 1: 200-7528
Replacement Piston 2: 200-7528
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: 300-9634
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Hat
Bolt Kit: 300-12561
Hub
Bolt Kit:
