Wilwood Disc Brakes - Front Brake Kit Part No: 140-17519

Kit Contents

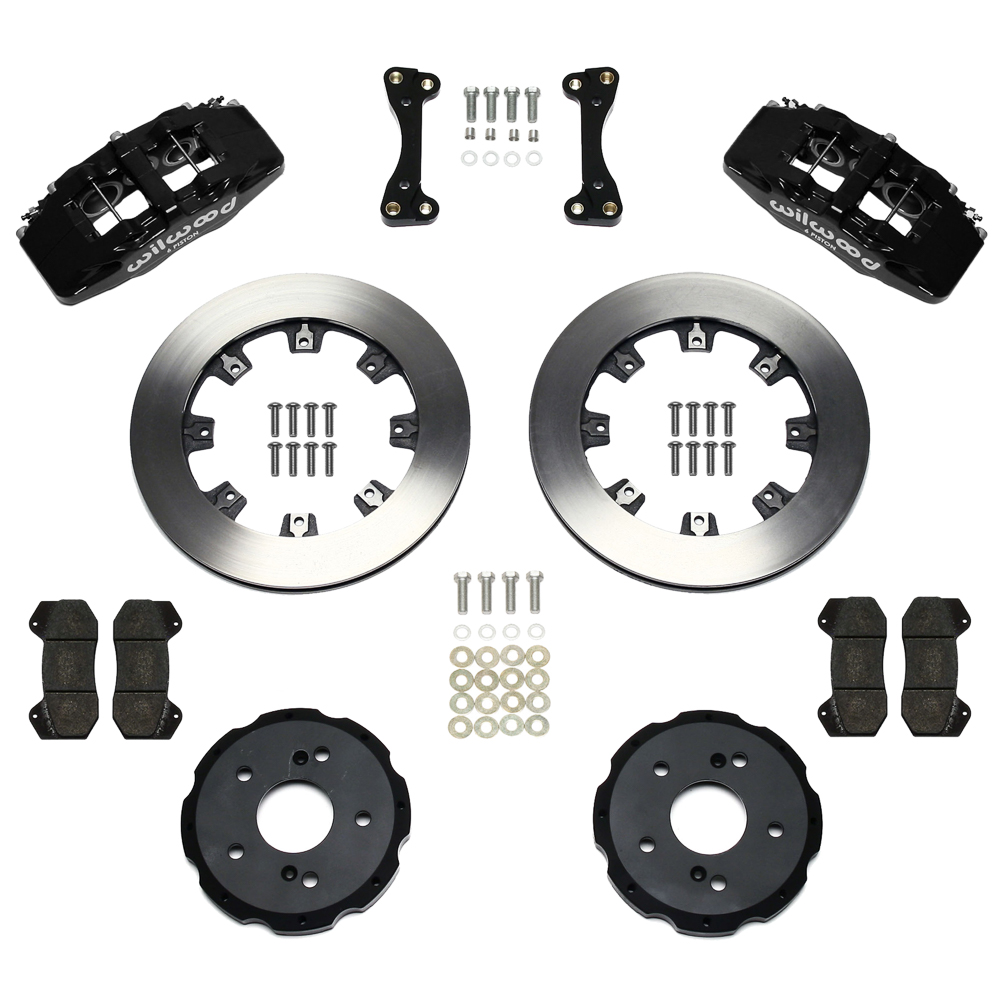

Wilwood Forged Dynapro 6 Big Brake Front Brake Kit (Hat) Parts Laid Out - Black Powder Coat Caliper - Plain Face Rotor Click Image to Close
View Custom Caliper Colors

Kit Summary


Spindle Type:	Factory Disc Spindle
Mount Type:	Lug
Caliper Type:	6 - Black Powder Coat
Rotor Diameter:	12.19
Min Wheel Diameter Req'd*:	15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

UPC Number
UPC	889545113488

	WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
	Applicable to Brake Pads Only

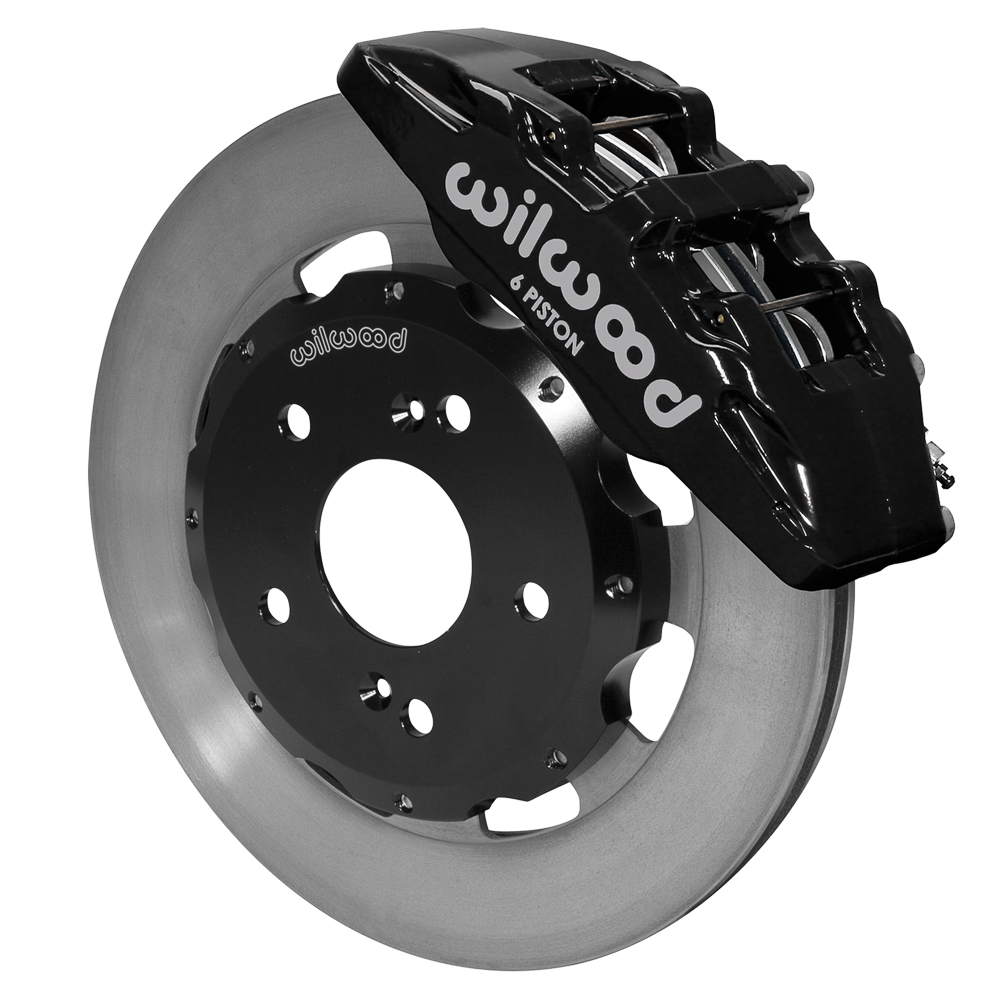

Forged Dynapro 6 Big Brake Front Brake Kit (Hat)

The enhanced brake capacity and pad performance of the DynaPro 6 forged billet six-piston caliper is combined with 12.19” diameter rotors for this group of front wheel drive sport compact kits. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered vehicle specific to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Fitment & Installation Details

Forged Dynapro 6 Big Brake Front Brake Kit (Hat) Assembly Schematic

Forged Dynapro 6 Big Brake Front Brake Kit (Hat) Assembly Schematic Zoom Image

Compatible Vehicles for this Brake Kit

BRAKE KIT: Forged Dynapro 6 Big Brake Front Brake Kit (Hat)

SPINDLE TYPE:

Factory Disc Spindle;

This Brake Kit is Compatible with the Following Vehicle Makes: Acura Honda

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles

Caution
	THIS BRAKE KIT HAS A HUB OFFSET OF: This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance	Assembly Instructions
Wheel Clearance Diagram Click Image to Close	Assembly Instructions

Notes
1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Kit Components & Specifications

Calipers
Left Hand - Part No:	120-13435-BK
Right Hand - Part No:	120-13434-BK
Type:	Dynapro 6
Finish Color:	Black Powder Coat
Piston Count:	6
Piston 1 Bore (in):	1.62
Piston 2 Bore (in):	1.12
Piston 3 Bore (in):	1.12
Piston Area (In²):	4.04
Piston Type:	Stainless
Mount Type:	Lug
Brake Pad Plate:	6712
Brake Pad Area (In²):	7.3
Brake Pad Volume (In³):	2.4
Pad Compound:	BP-10
Dynapro 6 Caliper - Black Powder Coat Click Image to Close

Rotors
Left Hand - Part No:	160-5843
Right Hand - Part No:	160-5843
Type:	Ultralite HP 32
Style:	Plain Face
Surface Finish:	Plain
Material:	Iron
Outside Diameter (in):	12.19
Width (in):	0.81
Vane Count:	32 V
Design Type:	ULHP
Bedded:	No
Dynamically Balanced:	No
Ultralite HP 32 - Iron - Plain Click Image to Close

Rotor Hats
Hat - Part No:	170-6947
Type:	Big Brake Hat - Short Offset
Material:	Aluminum
Finish Color:	Black E-Coat
Hat Offset Dimension (in):	0.730
Bolt Circle 1:	5 x 4.50
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:	0.500
Stud Diameter - BC 2:	0.000
Stud Diameter - BC 3:	0.000
Big Brake Hat - Short Offset - Aluminum - Black E-Coat Click Image to Close

Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories

Caliper Parts
O-ring Kit:	130-5972
Replacement Dustboot:	N-A
Replacement Piston 1:	200-7520
Replacement Piston 2:	200-8439
Replacement Piston 3:	200-8439
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	130-10540
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-9707
Wear Plate - Right Hand:	300-9707
Pad Retainer:	300-17719
Bleed Screw Kit:	220-0627

*Brake Lines Needed
Front Line Kit:	220-6860

Hat
Bolt Kit:	230-8390

Hub
Bolt Kit:
