Front Brake Kit – Part No: 140-17287
Call (805) 388-1188
GN6R Big Brake Truck Front Brake Kit
Prod #: 140-17287
Price: $2,430.90

Front Brake Kit — 140-17287


Kit Contents

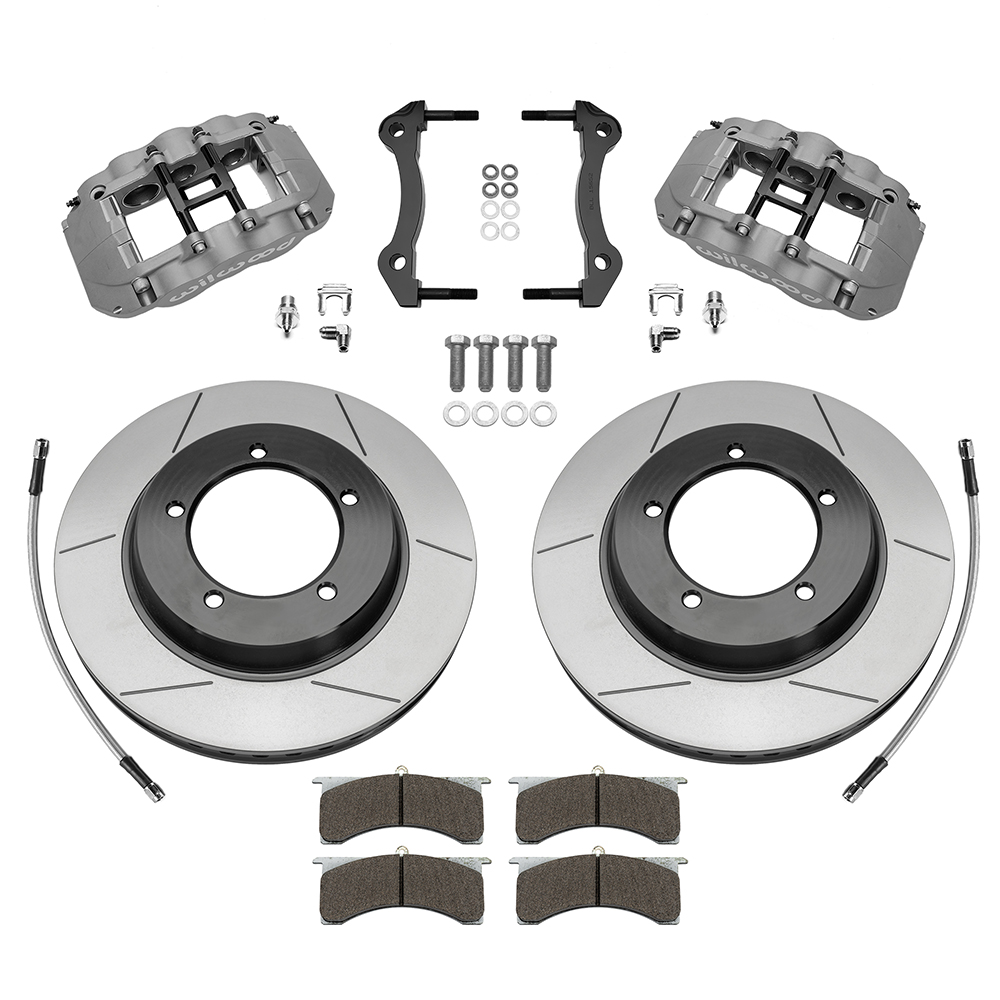

Wilwood GN6R Big Brake Truck Front Brake Kit Parts Laid Out - Type III Anodize Caliper - GT Slotted Rotor Wilwood GN6R Big Brake Truck Front Brake Kit Parts Laid Out - Type III Anodize Caliper - GT Slotted Rotor Zoom Image



Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Type III Anodize
Rotor Diameter: 13.28
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545110968

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


GN6R Big Brake Truck Front Brake Kit

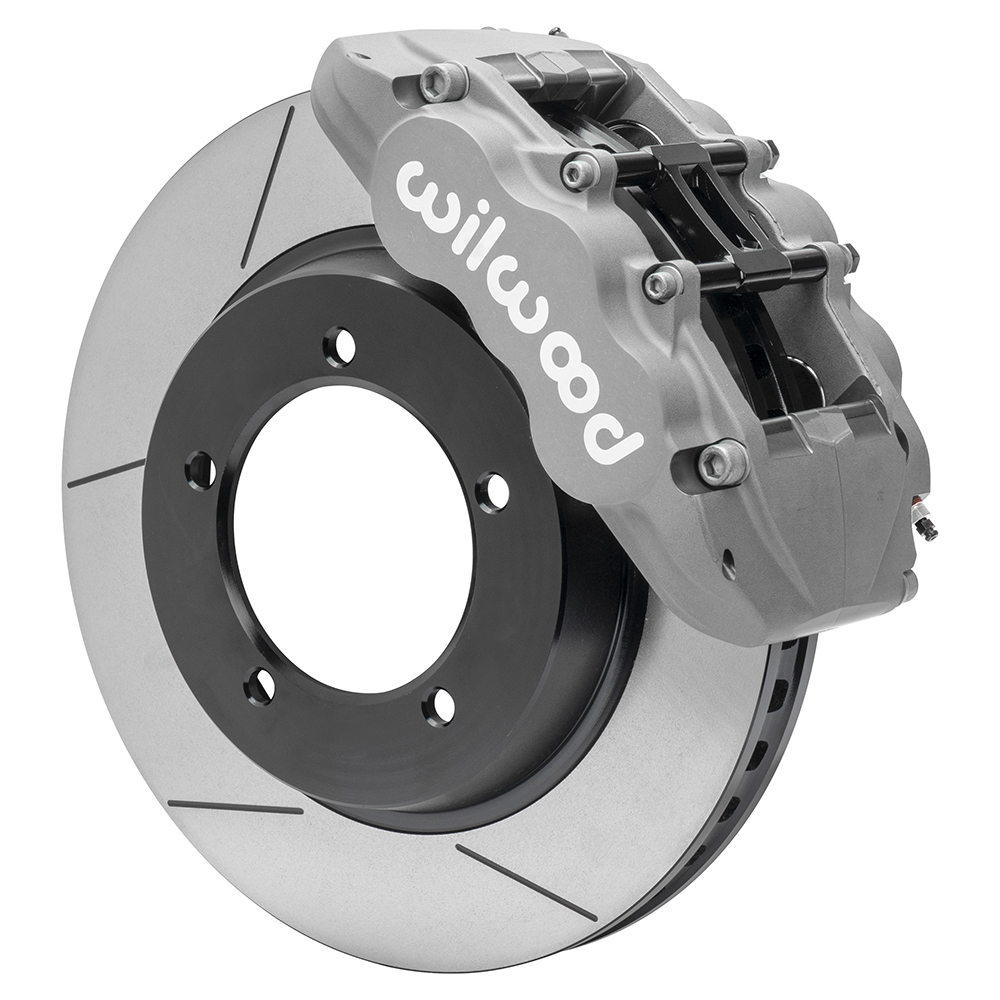

Wilwood’s 140-17287 AV6R Big Brake Front Kit for Toyota Land Cruiser 70 series (LC70) vehicles available in Japan, South America, Africa and the Mid-East. Kit combines Type III Anodized GN6R calipers, TX1 SmartPads, and one piece slotted 13.28" rotors. Designed for use with the OE master cylinder output and ABS function, this Wilwood kit provides nearly effortless enhanced brake performance, durability for OE, Enhanced and Up-Armored vehicles. Verify fitment on Wilwood website.


Fitment & Installation Details


GN6R Big Brake Truck Front Brake Kit Assembly Schematic

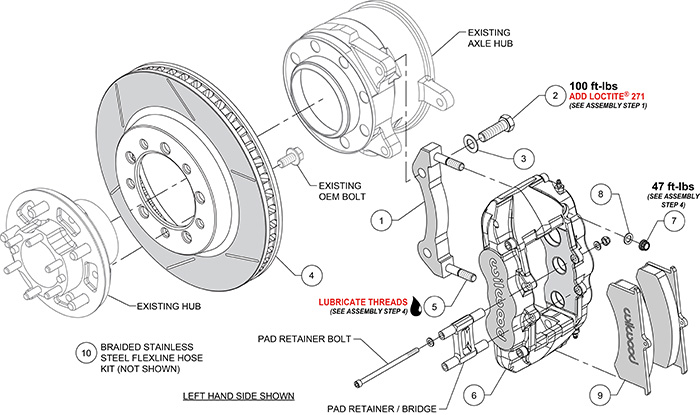

GN6R Big Brake Truck Front Brake Kit Assembly Schematic GN6R Big Brake Truck Front Brake Kit Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   GN6R Big Brake Truck Front Brake Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Toyota

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

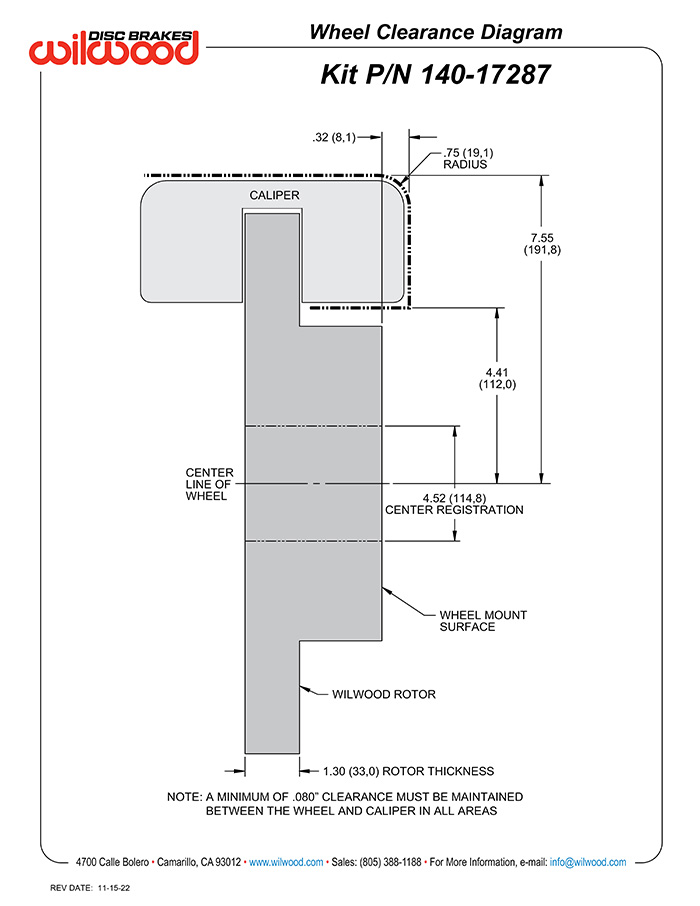

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-17291
Right Hand - Part No: 120-17290
Type: AV6R
Finish Color: Type III Anodize
Piston Count: 6
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.38
Piston 3 Bore (in): 1.38
Piston Area (In²): 5.40
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7520
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 6.9
Pad Compound: TX1

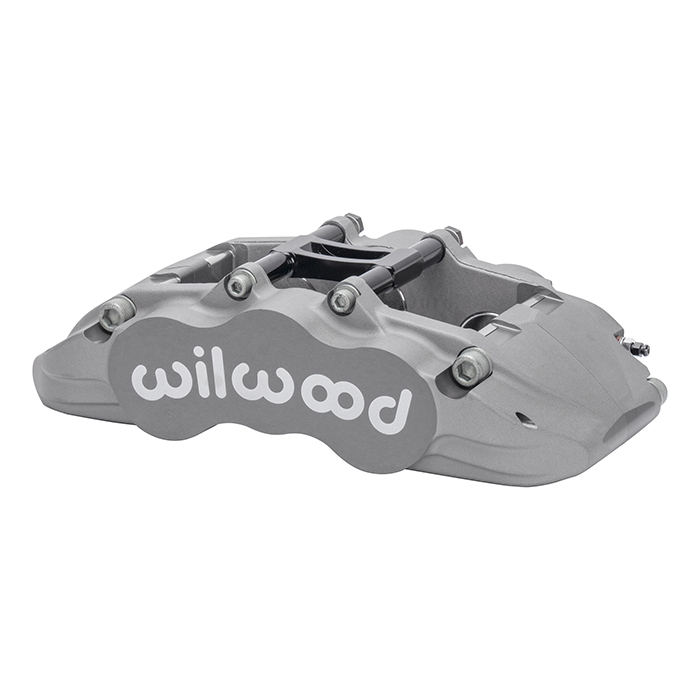

AV6R Caliper - Type III Anodize AV6R Caliper - Type III Anodize Zoom Image
Rotors
Left Hand - Part No: 160-15757-GTB
Right Hand - Part No: 160-15757-GTB
Type: GT 42 Vane
Style: GT Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 13.28
Width (in): 1.30
Vane Count: 42 V
Design Type: GT-BLK
Bedded: No
Dynamically Balanced: Yes
GT 42 Vane - Iron - Black Electro Coat GT 42 Vane - Iron - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-3084
Replacement Dustboot: N-A
Replacement Piston 1: 200-7531
Replacement Piston 2: 200-7516
Replacement Piston 3: 200-7516
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 300-14218
Wear Plate - Left Hand: 300-5922
Wear Plate - Right Hand: 300-5923
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
 		220-15714
Hat
Bolt Kit:
Hub
Bolt Kit:

Additional related products:




More Details
More Details
More Details
More Details
