Front Brake Kit – Part No: 140-17274
Call (805) 388-1188
AERO6-DM Direct-Mount Truck Front Brake Kit
Prod #: 140-17274
Price: $1,787.50
Front Brake Kit — 140-17274

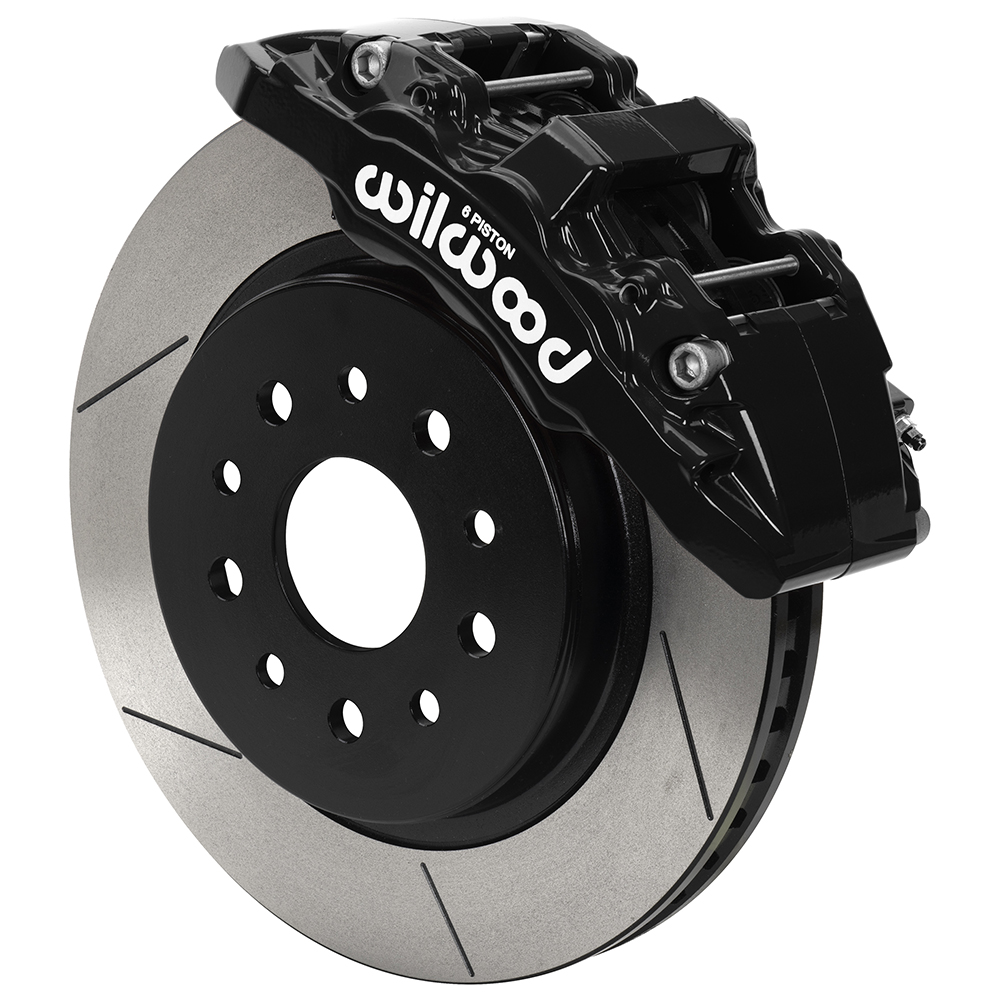

Wilwood AERO6-DM Direct-Mount Truck Front Brake Kit - Black Powder Coat Caliper - GT Slotted Rotor Wilwood AERO6-DM Direct-Mount Truck Front Brake Kit - Black Powder Coat Caliper - GT Slotted Rotor Zoom Image

Kit Contents

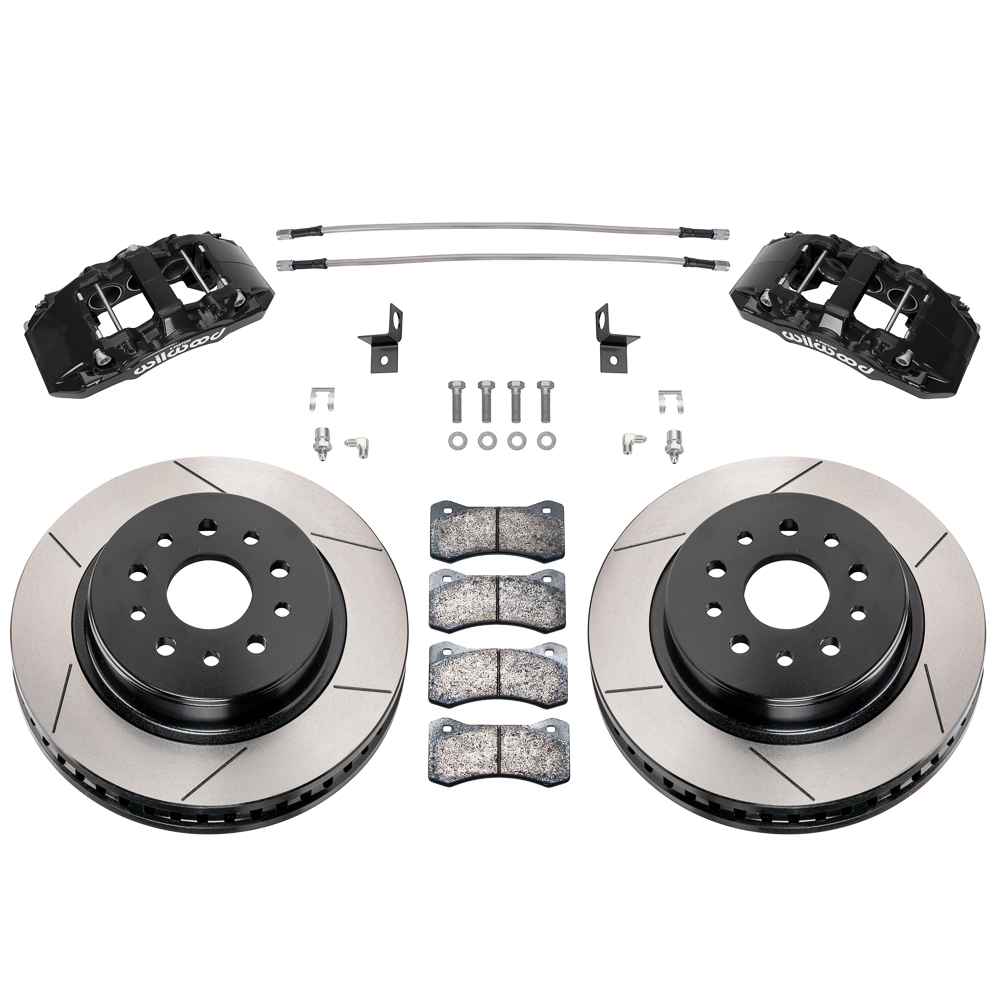

Wilwood AERO6-DM Direct-Mount Truck Front Brake Kit Parts Laid Out - Black Powder Coat Caliper - GT Slotted Rotor Wilwood AERO6-DM Direct-Mount Truck Front Brake Kit Parts Laid Out - Black Powder Coat Caliper - GT Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Lug
Caliper Type: 6 - Black Powder Coat
Rotor Diameter: 13.38
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545110111

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


AERO6-DM Direct-Mount Truck Front Brake Kit

AERODM Six Piston calipers were designed for the specific purpose of providing a direct mount, large capacity braking solution with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. OEM style 1 piece 13.38" to 13.56" diameter rotors provide maximum cooling for sustained high heat durability.


Fitment & Installation Details


AERO6-DM Direct-Mount Truck Front Brake Kit Assembly Schematic

AERO6-DM Direct-Mount Truck Front Brake Kit Assembly Schematic AERO6-DM Direct-Mount Truck Front Brake Kit Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   AERO6-DM Direct-Mount Truck Front Brake Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Jeep

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-16953-BK
Right Hand - Part No: 120-16952-BK
Type: AERODM
Finish Color: Black Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.38
Piston 3 Bore (in): 1.38
Piston Area (In²): 5.40
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 6617
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 5.2
Pad Compound: BP-Q
AERODM Caliper - Black Powder Coat AERODM Caliper - Black Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-16964-GTB
Right Hand - Part No: 160-16964-GTB
Type: GTB Vented Rotor & Hat
Style: GT Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 13.38
Width (in): 1.25
Vane Count: 48 V
Design Type: GT-BLK
Bedded: No
Dynamically Balanced: Yes
GTB Vented Rotor & Hat - Iron - Black Electro Coat GTB Vented Rotor & Hat - Iron - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-17056
Replacement Dustboot: N-A
Replacement Piston 1: 200-7531
Replacement Piston 2: 200-7516
Replacement Piston 3: 200-7516
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-11237
Hat
Bolt Kit:
Hub
Bolt Kit:
