Front Brake Kit – Part No: 140-16946-D
Call (805) 388-1188

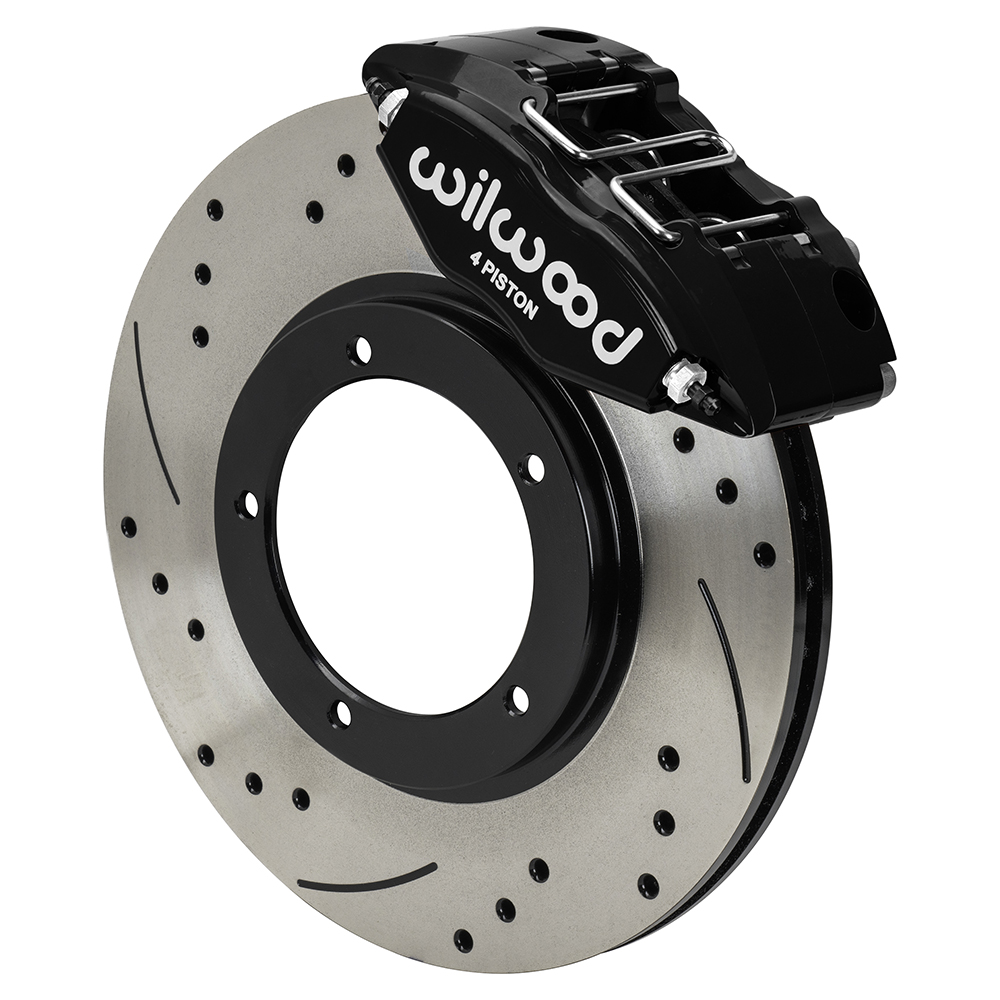

Powerlite Front Brake Kit
Prod #: 140-16946-D
Price: $1,033.13
Front Brake Kit — 140-16946-D


Kit Contents

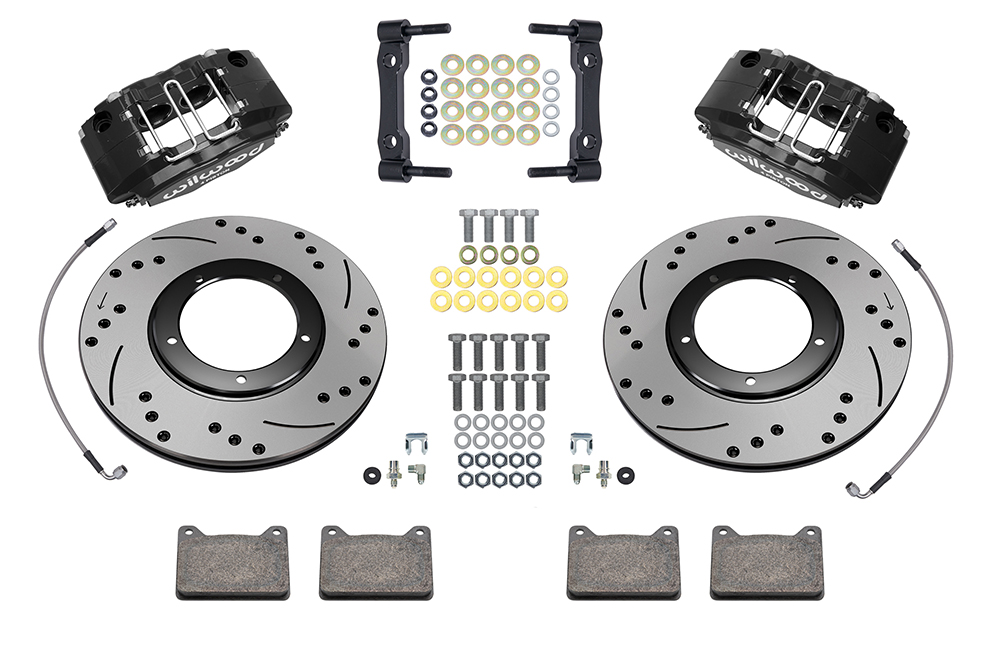

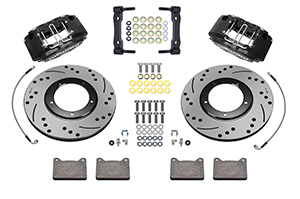

Wilwood Powerlite Front Brake Kit Parts Laid Out - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Wilwood Powerlite Front Brake Kit Parts Laid Out - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 11.10
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545108392

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Powerlite Front Brake Kit

Powerlite Front Brake Kits allow easy upgrade to 4 piston Powerlite calipers, 1 piece rotor and hat assemblies formulated from proprietary iron compounds and BP-10 performance pads. using the stock rotor and spindle mounting. Kits come complete with hardware and stainless steel flexlines.

Watch more videos!
How to Measure Porsche 911 Strut Tab Mounts

Fitment & Installation Details


Powerlite Front Brake Kit Assembly Schematic

Powerlite Front Brake Kit Assembly Schematic Powerlite Front Brake Kit Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Powerlite Front Brake Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Porsche

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. Kit will only fit "M" type struts with 3.00" caliper mount spacing.

Kit Components & Specifications
Calipers
Left Hand - Part No: 120-8729-BK
Right Hand - Part No: 120-8729-BK
Type: Powerlite
Finish Color: Black Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.38
Piston 2 Bore (in): 1.38
Piston Area (In²): 3.00
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7912
Brake Pad Area (In²): 5
Brake Pad Volume (In³): 1.8
Pad Compound: BP-10
Powerlite Caliper - Black Powder Coat Powerlite Caliper - Black Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-16694-BK
Right Hand - Part No: 160-16693-BK
Type: SRP Drilled Rotor & Hat
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 11.10
Width (in): 0.80
Vane Count: Vented
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
SRP Drilled Rotor & Hat - Iron - Black Electro Coat SRP Drilled Rotor & Hat - Iron - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2658
Replacement Dustboot: N-A
Replacement Piston 1: 200-8698
Replacement Piston 2: 200-8698
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 300-8697
Bleed Screw Kit: 220-6069
Brake Lines
Front Line Kit:
 		220-16709
Hat
Bolt Kit:
Hub
Bolt Kit:
