UTV6 Front Brake Kit
Prod #: 140-16626-D
Price: $1,446.91
Front Brake Kit — 140-16626-D


Kit Contents

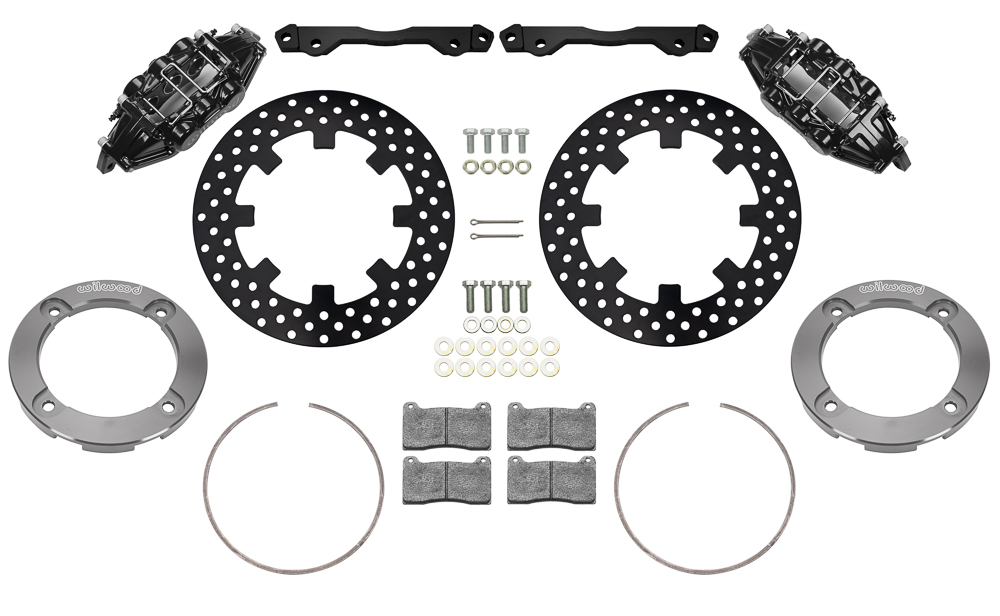

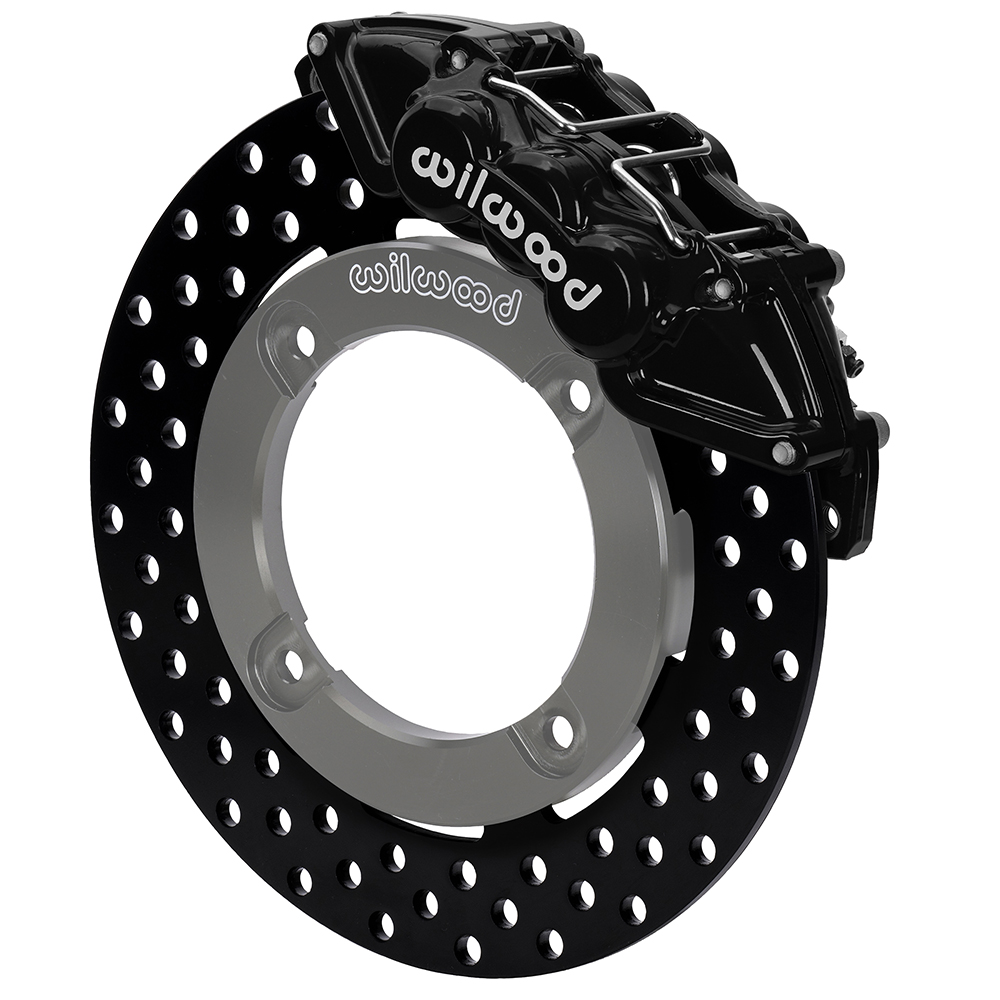

Wilwood UTV6 Front Brake Kit Parts Laid Out - Black Powder Coat Caliper - Drilled Rotor Wilwood UTV6 Front Brake Kit Parts Laid Out - Black Powder Coat Caliper - Drilled Rotor Zoom Image



Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Lug
Caliper Type: 6 - Black Powder Coat
Rotor Diameter: 11.25
Min Wheel Diameter Req'd*: 14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545108149

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


UTV6 Front Brake Kit

Wilwood’s matched front and rear UTV brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs. Forged aluminum differential-bore four and six piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction steel rotors, are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain.


Fitment & Installation Details


UTV6 Front Brake Kit Assembly Schematic

UTV6 Front Brake Kit Assembly Schematic UTV6 Front Brake Kit Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   UTV6 Front Brake Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Honda

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-16567-BK
Right Hand - Part No: 120-16566-BK
Type: UTV6
Finish Color: Black Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston 3 Bore (in): 1.00
Piston Area (In²): 2.77
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7812
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
UTV6 Caliper - Black Powder Coat UTV6 Caliper - Black Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-16979
Right Hand - Part No: 160-16979
Type: Drilled Steel Rotor
Style: Drilled
Surface Finish: Black Electro Coat
Material: Steel
Outside Diameter (in): 11.25
Width (in): 0.25
Vane Count: Solid
Design Type: Solid
Bedded: No
Dynamically Balanced: No
Drilled Steel Rotor - Steel - Black Electro Coat Drilled Steel Rotor - Steel - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-17374
Replacement Dustboot: N-A
Replacement Piston 1: 200-8439
Replacement Piston 2: 200-8439
Replacement Piston 3: 200-12953
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit:
Wear Plate - Left Hand: 300-10829
Wear Plate - Right Hand: 300-10828
Pad Retainer: 300-16565
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Hat
Bolt Kit:
Hub
Bolt Kit:

Additional related products:




More Details
More Details
More Details
