AERO4 Big Brake Lug Drive Front Brake Kit (Race)
Prod #: 140-16181
Price: $3,256.45

*Line Kit Needed


220-8176
$80.15
*Line Kit Needed


220-9100
$76.95
Front Brake Kit — 140-16181

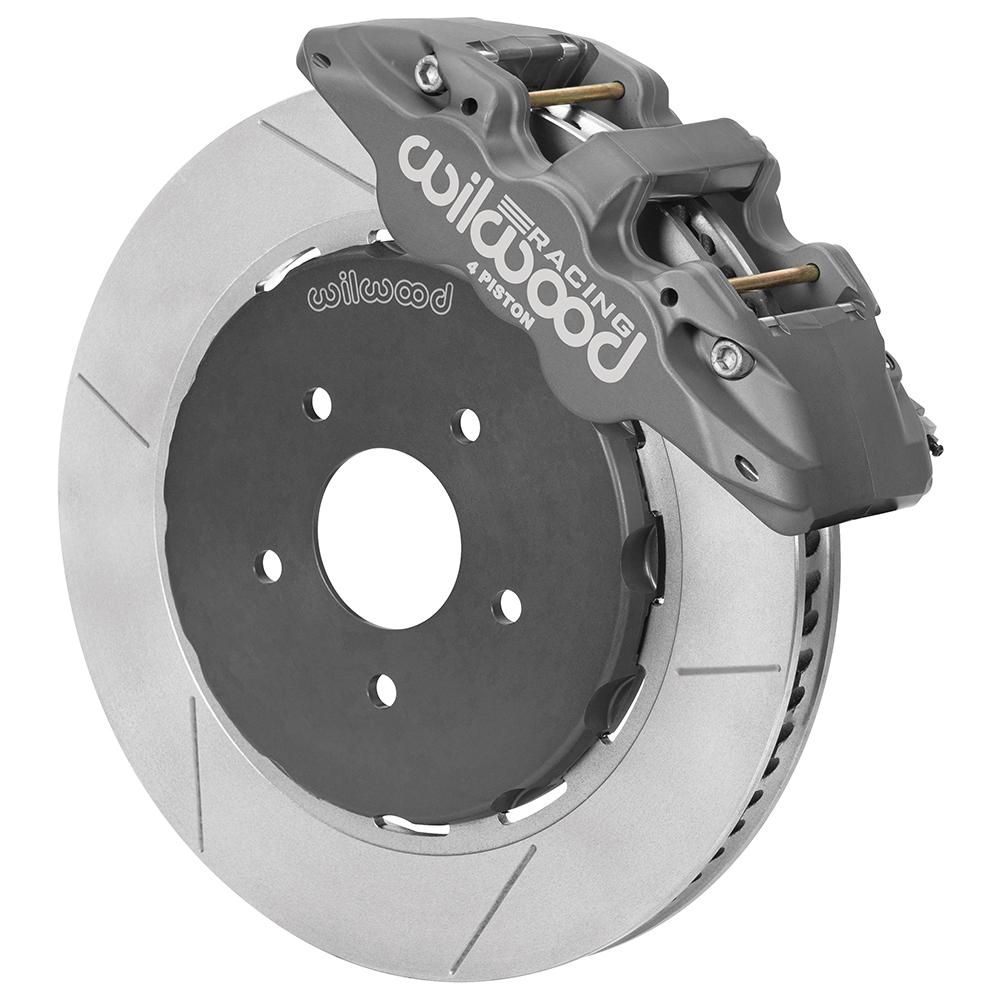

Wilwood AERO4 Big Brake Lug Drive Front Brake Kit (Race) - Type III Anodize Caliper - GT Slotted Rotor Wilwood AERO4 Big Brake Lug Drive Front Brake Kit (Race) - Type III Anodize Caliper - GT Slotted Rotor Zoom Image

Kit Contents

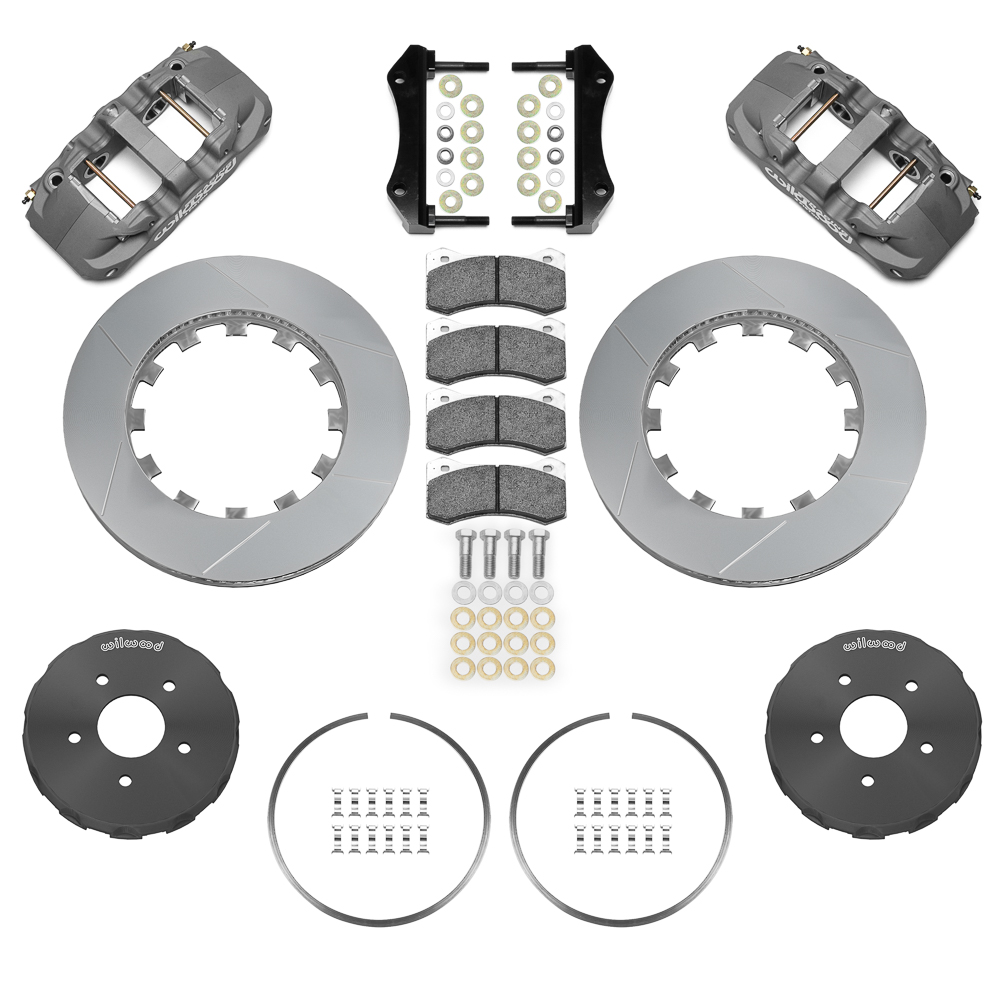

Wilwood AERO4 Big Brake Lug Drive Front Brake Kit (Race) Parts Laid Out - Type III Anodize Caliper - GT Slotted Rotor Wilwood AERO4 Big Brake Lug Drive Front Brake Kit (Race) Parts Laid Out - Type III Anodize Caliper - GT Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Drop Spindle Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 - Type III Anodize
Rotor Diameter: 14.00
Min Wheel Diameter Req'd*: 18
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545098273

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


AERO4 Big Brake Lug Drive Front Brake Kit (Race)

Aerolite four piston calipers are coupled with the high heat capacity of dynamically mounted 14.00" Spec37 alloy rotors to provide consistent, responsive braking for Corvette race cars, autocross, and track day cars using Corvette suspension. GT rotors with 72 staggered directional vanes shed heat and float on lightweight forged aluminum hats via an innovative, dynamic lug-drive mount system to further reduce thermal stresses. This kit comes complete with high temperature, high friction, BP-30 SmartPads selected specifically for exceptional driver control with DOT tires and limited downforce.

The radial-mount Aerolite caliper uses a forged aluminum body with type III Mil-Spec hard anodized finish and a closed bridge to reduce deflection. The race version features a wide body for 20mm pads, providing longer service life on track even with high speed and heavier cars. Aluminum Thermlock pistons with stainless steel shields further protect brake fluid from heat compared to the aluminum or steel pistons found in OE calipers. Internal springs and high-temperature piston seals reduce piston knockback for a more consistent pedal feel.

Caliper pistons are sized for complete compatibility with the factory master cylinder and ABS controls. For dedicated competition use, manual brake conversions with balance bar pedals are also possible. Mounting brackets with premium-grade hardware secure the calipers in the stock location. Kit requires a stainless steel braided flexline, sold separately, specific to the model year.


Fitment & Installation Details

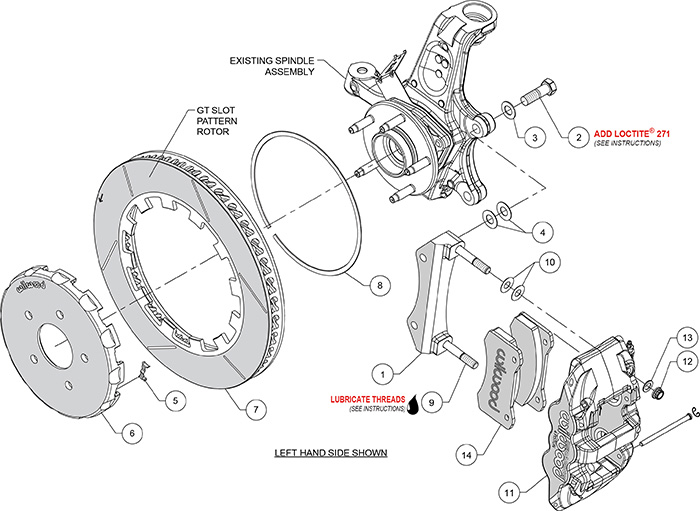

AERO4 Big Brake Lug Drive Front Brake Kit (Race) Assembly Schematic

AERO4 Big Brake Lug Drive Front Brake Kit (Race) Assembly Schematic AERO4 Big Brake Lug Drive Front Brake Kit (Race) Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   AERO4 Big Brake Lug Drive Front Brake Kit (Race)
SPINDLE TYPE:
Drop Spindle; Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Art Morrison ATS / Speedtech Buick Cadillac Chevrolet Detroit Speed Factory Five Racing GMC Oldsmobile Pontiac Ridetech

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

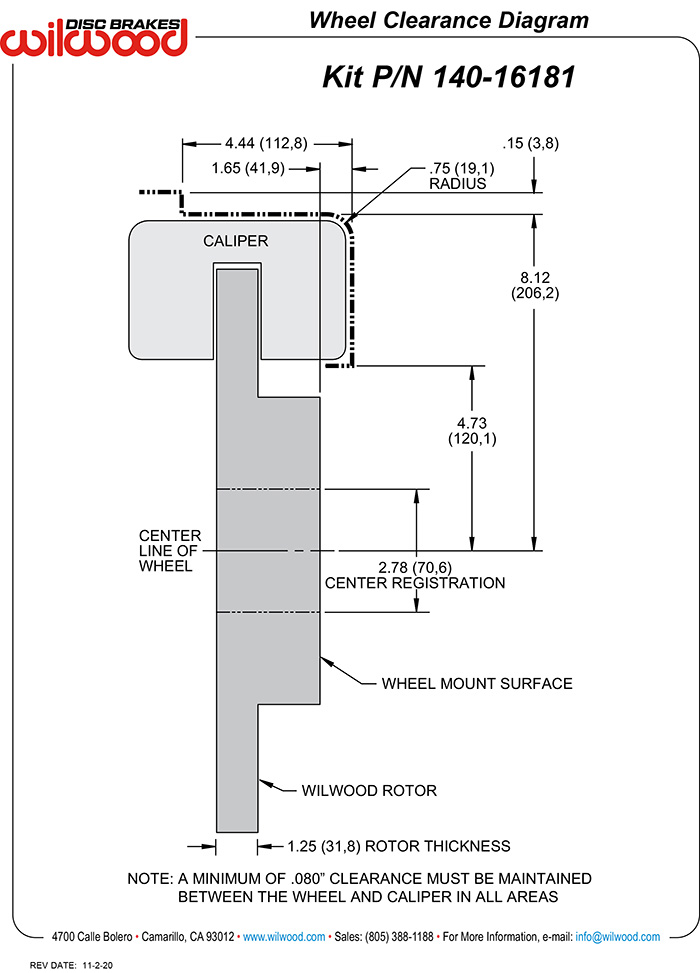

Wheel Clearance Assembly Instructions

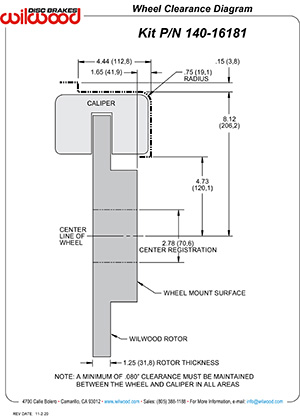

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. Wheel mounting pad must not be larger than 6.00" to fit into inset area of this hat.
2. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
3. Kit may fit some 18" wheels. Check wheel clearance diagram in kit installation instructions before purchase.


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-16088
Right Hand - Part No: 120-16087
Type: AERO4
Finish Color: Type III Anodize
Piston Count: 4
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.50
Piston Area (In²): 4.17
Piston Type: Thermlock
Mount Type: Radial
Brake Pad Plate: 6620
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 6.6
Pad Compound: BP-35
AERO4 Caliper - Type III Anodize AERO4 Caliper - Type III Anodize Zoom Image
Rotors
Left Hand - Part No: 160-15874
Right Hand - Part No: 160-15873
Type: GT 72 Curved Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 14.00
Width (in): 1.25
Vane Count: 72 CV
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
GT 72 Curved Vane - Spec-37 Iron - Plain GT 72 Curved Vane - Spec-37 Iron - Plain Zoom Image
Rotor Hats
Hat - Part No: 170-16199
Type: Big Brake Dynamic Lug Drive - Short Offset
Material: Aluminum
Finish Color: Type III Anodize
Hat Offset Dimension (in): 0.280
Bolt Circle 1: 5 x 4.75
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.520
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000
Big Brake Dynamic Lug Drive - Short Offset - Aluminum - Type III Anodize Big Brake Dynamic Lug Drive - Short Offset - Aluminum - Type III Anodize Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-4782
Replacement Dustboot: N-A
Replacement Piston 1: 200-7551
Replacement Piston 2: 200-16086
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Front Line Kit:
Front Line Kit:
220-8176
220-9100
Hat
Bolt Kit: 300-14913
Hub
Bolt Kit:
