Front Brake Kit – Part No: 140-16005
Call (805) 388-1188
Forged Superlite 6R Big Brake Lug Drive Front Brake Kit (Race)
Prod #: 140-16005
Price: $2,748.71

Front Brake Kit — 140-16005

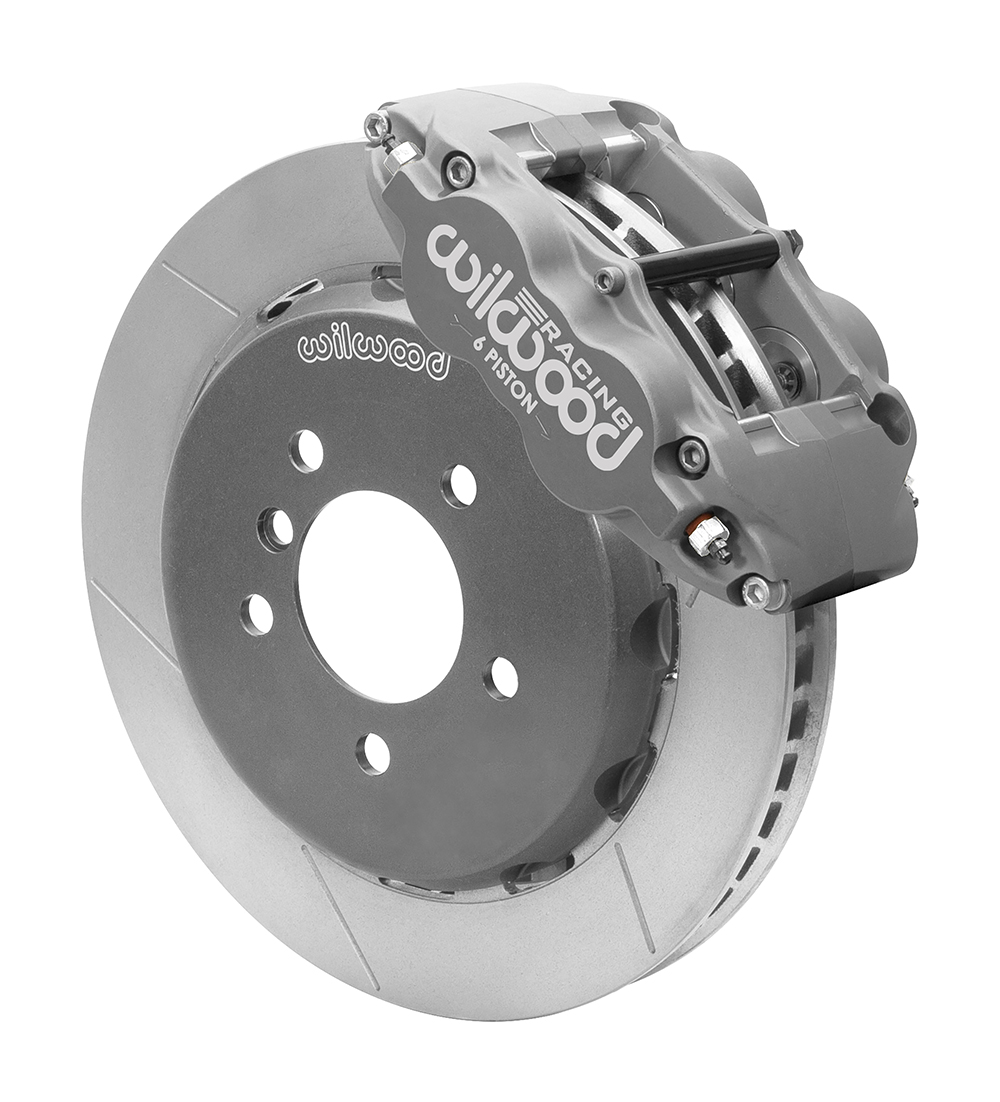

Wilwood Forged Superlite 6R Big Brake Lug Drive Front Brake Kit (Race) - Type III Anodize Caliper - GT Slotted Rotor Wilwood Forged Superlite 6R Big Brake Lug Drive Front Brake Kit (Race) - Type III Anodize Caliper - GT Slotted Rotor Zoom Image

Kit Contents

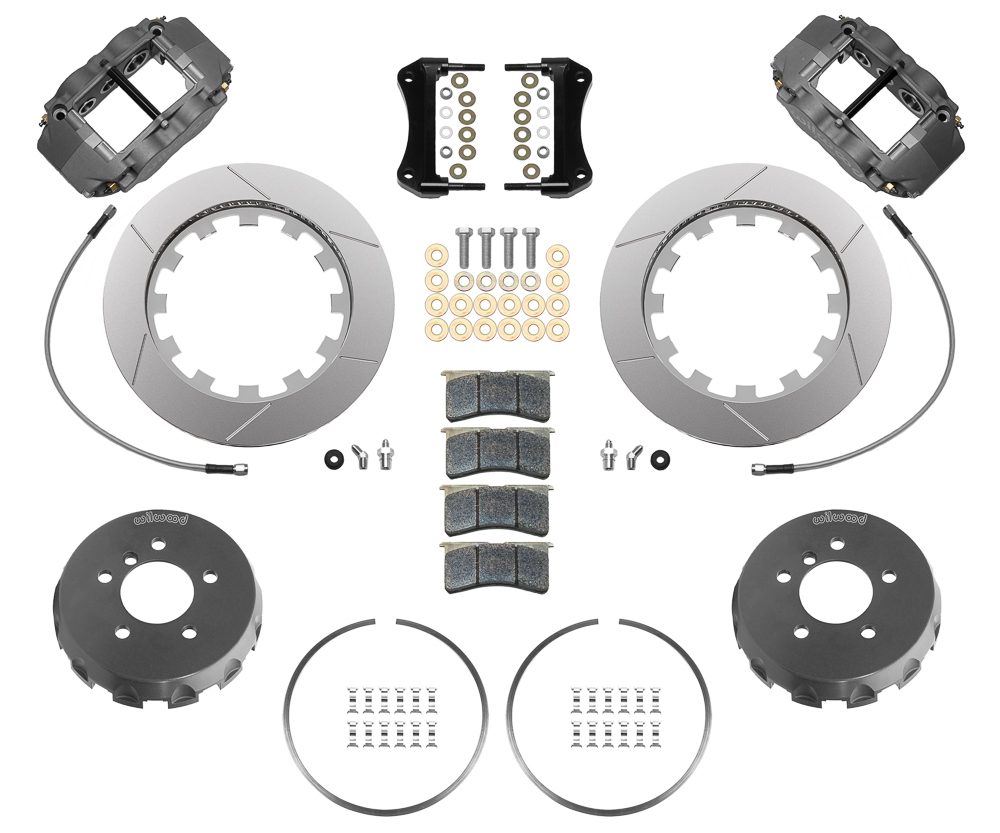

Wilwood Forged Superlite 6R Big Brake Lug Drive Front Brake Kit (Race) Parts Laid Out - Type III Anodize Caliper - GT Slotted Rotor Wilwood Forged Superlite 6R Big Brake Lug Drive Front Brake Kit (Race) Parts Laid Out - Type III Anodize Caliper - GT Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Type III Anodize
Rotor Diameter: 13.06
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545095081

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Superlite 6R Big Brake Lug Drive Front Brake Kit (Race)

This kit is configured for dedicated road racing on all 1995-1999 BMW E36/M3 models. The six piston FNSL6R/ST radial mount calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Spec37 alloy, GT competition series 13.06” diameter directional vane rotors are dynamically mounted to the OE hubs with weight saving forged aluminum hats. Unsprung and rotating weight are minimized while providing high cooling efficiency and rugged durability with thermal stability in sustained high heat competition. Mounting brackets, including all premium grade fasteners, secure the calipers in the stock location without modifications. This race winning system is completed with high temperature, high friction, endurance compound race pads selected specifically by application. Stainless steel braided flexlines are included for installation.


Fitment & Installation Details

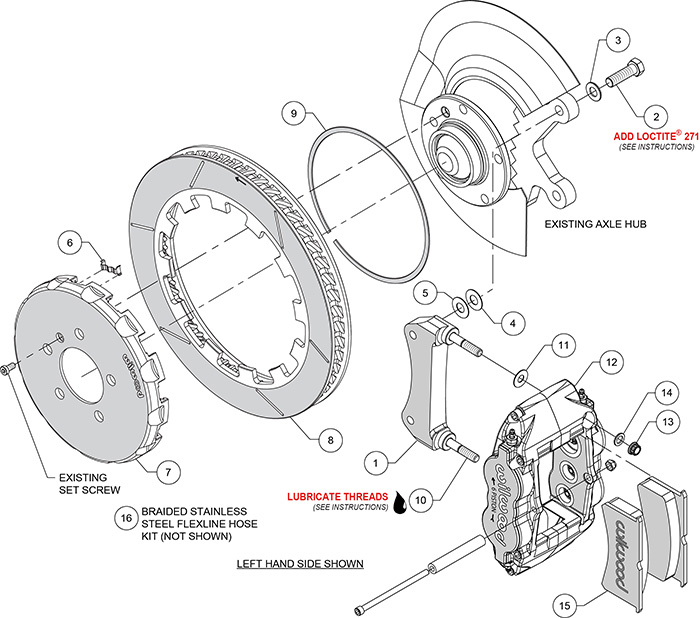

Forged Superlite 6R Big Brake Lug Drive Front Brake Kit (Race) Assembly Schematic

Forged Superlite 6R Big Brake Lug Drive Front Brake Kit (Race) Assembly Schematic Forged Superlite 6R Big Brake Lug Drive Front Brake Kit (Race) Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Superlite 6R Big Brake Lug Drive Front Brake Kit (Race)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: BMW

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

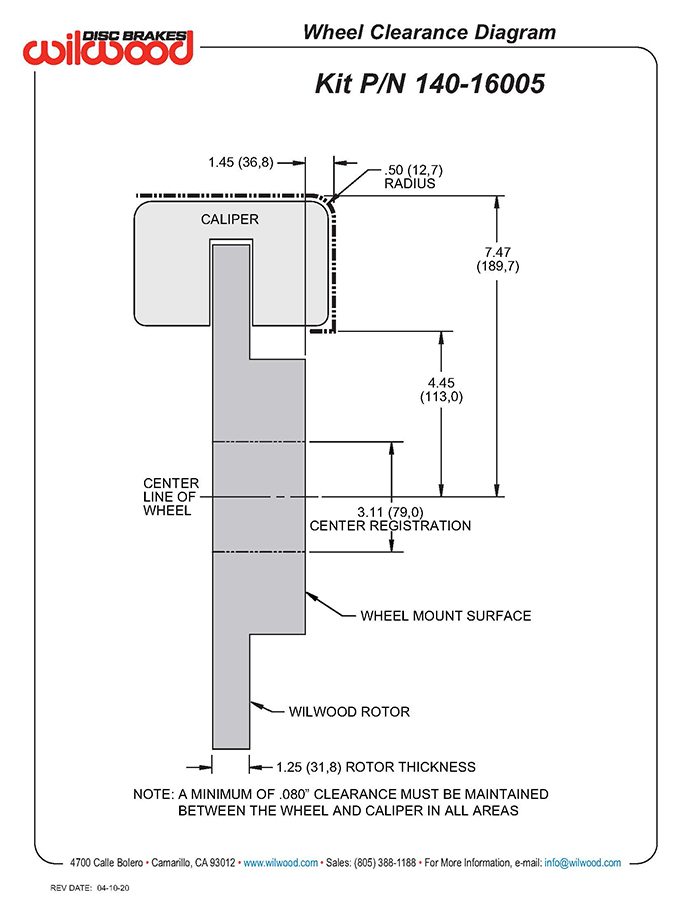

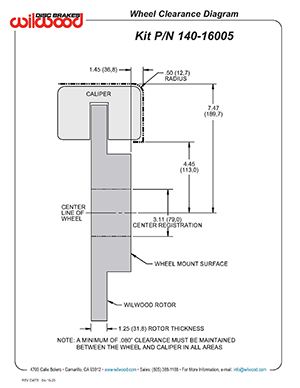

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
2. Kit may fit some 17" wheels. Check wheel clearance diagram in kit installation instructions before purchase.



Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13268
Right Hand - Part No: 120-13267
Type: Forged Superlite 6R
Finish Color: Type III Anodize
Piston Count: 6
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.12
Piston 3 Bore (in): 1.12
Piston Area (In²): 4.04
Piston Type: Thermlock
Mount Type: Radial
Brake Pad Plate: 7420
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 4.9
Pad Compound: BP-30

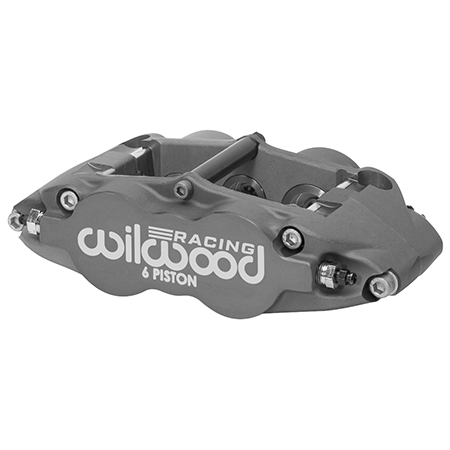

Forged  Superlite 6R Caliper - Type III Anodize Forged Superlite 6R Caliper - Type III Anodize Zoom Image
Rotors
Left Hand - Part No: 160-15872
Right Hand - Part No: 160-15871
Type: GT 48 Curved Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 13.06
Width (in): 1.25
Vane Count: 48 CV
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
GT 48 Curved Vane - Spec-37 Iron - Plain GT 48 Curved Vane - Spec-37 Iron - Plain Zoom Image
Rotor Hats
Hat - Part No: 170-15999
Type: Big Brake Dynamic Lug Drive - Short Offset
Material: Aluminum
Finish Color: Type III Anodize
Hat Offset Dimension (in): 0.550
Bolt Circle 1: 5 x 4.75
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.610
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000

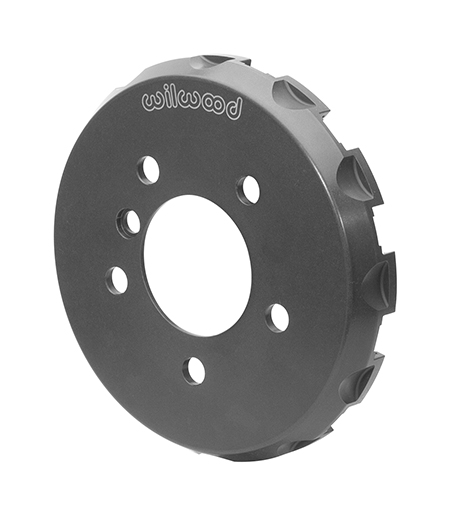

Big Brake Dynamic Lug Drive - Short Offset - Aluminum - Type III Anodize Big Brake Dynamic Lug Drive - Short Offset - Aluminum - Type III Anodize Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-5972
Replacement Dustboot: N-A
Replacement Piston 1: 200-7553
Replacement Piston 2: 200-7556
Replacement Piston 3: 200-7556
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 230-5978
Wear Plate - Left Hand: 300-5923
Wear Plate - Right Hand: 300-5922
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-8799
Hat
Bolt Kit: 300-14913
Hub
