AV6R Big Brake Truck Front Brake Kit
Prod #: 140-15775
Price: $3,783.02

Front Brake Kit — 140-15775


Kit Contents

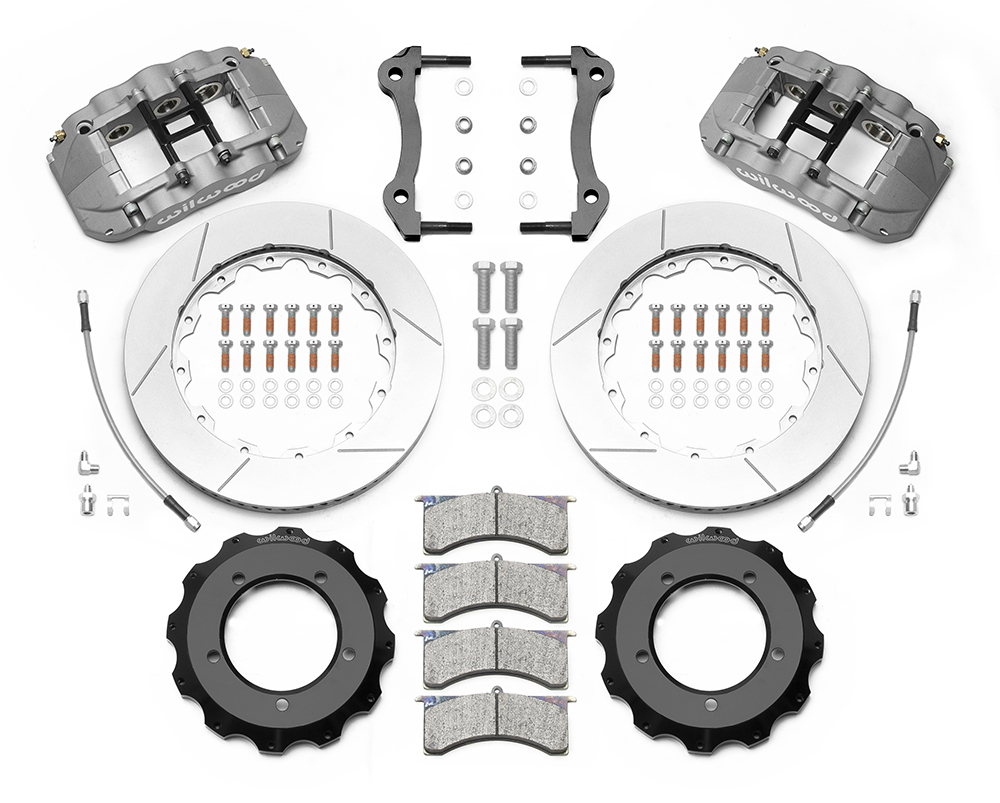

Wilwood AV6R Big Brake Truck Front Brake Kit Parts Laid Out - Type III Anodize Caliper - GT Slotted Rotor Wilwood AV6R Big Brake Truck Front Brake Kit Parts Laid Out - Type III Anodize Caliper - GT Slotted Rotor Zoom Image



Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Type III Anodize
Rotor Diameter: 13.28
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545092363

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


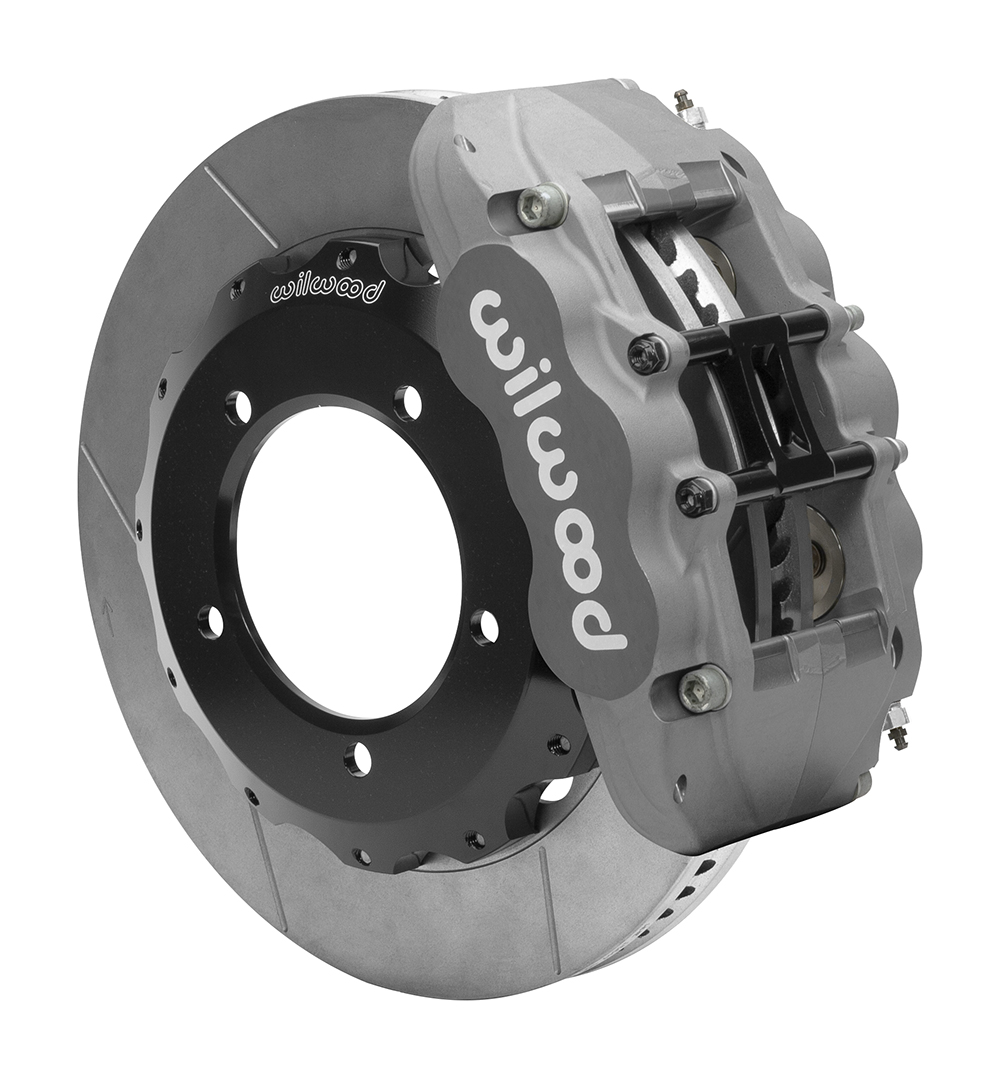

AV6R Big Brake Truck Front Brake Kit

Wilwood’s 140-15775 AV6R Big Brake Front Kit for Toyota Land Cruiser 70 series (LC70) vehicles available in Japan, South America, Africa and the Mid-East. Kit combines Type III Anodized GN6R calipers, BP-30 SmartPads, and two piece slotted 13.28" rotors. Designed for use with the OE master cylinder output and ABS function, this Wilwood kit provides nearly effortless enhanced brake performance, durability for OE, Enhanced and Up-Armored vehicles. Verify fitment on Wilwood website.


Fitment & Installation Details


AV6R Big Brake Truck Front Brake Kit Assembly Schematic

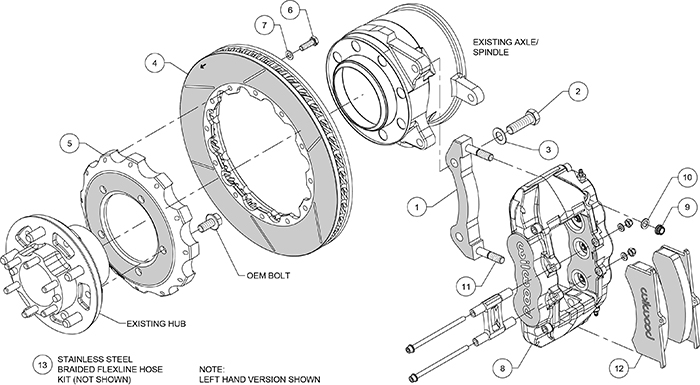

AV6R Big Brake Truck Front Brake Kit Assembly Schematic AV6R Big Brake Truck Front Brake Kit Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   AV6R Big Brake Truck Front Brake Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Toyota

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

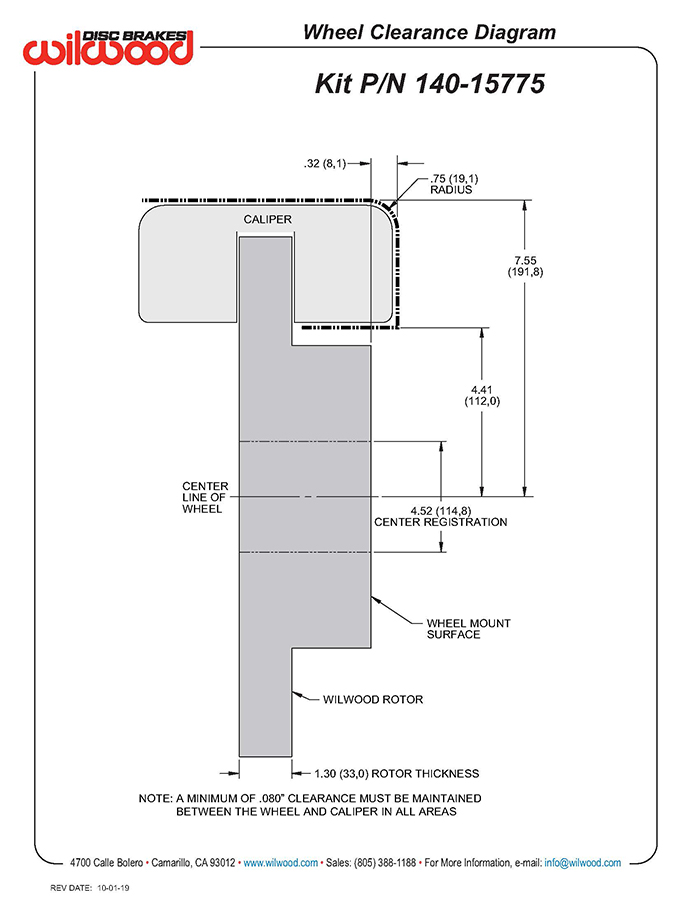

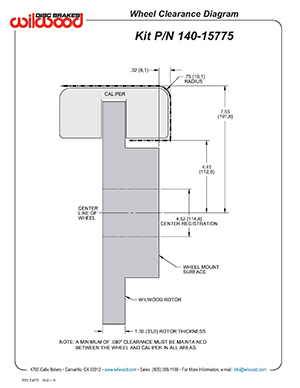

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-15779
Right Hand - Part No: 120-15778
Type: AV6R
Finish Color: Type III Anodize
Piston Count: 6
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.38
Piston 3 Bore (in): 1.38
Piston Area (In²): 5.40
Piston Type: Thermlock
Mount Type: Radial
Brake Pad Plate: 7520
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 6.9
Pad Compound: TX1

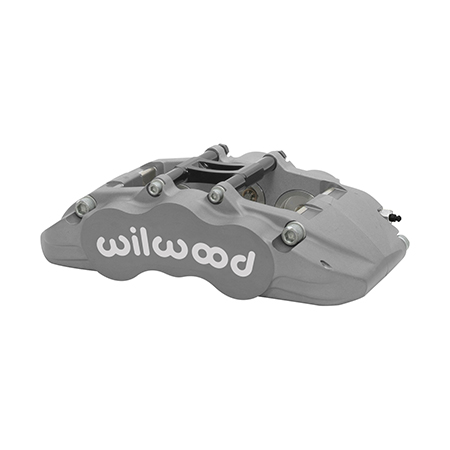

AV6R Caliper - Type III Anodize AV6R Caliper - Type III Anodize Zoom Image
Rotors
Left Hand - Part No: 160-15648
Right Hand - Part No: 160-15647
Type: GT 72 Curved Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 13.28
Width (in): 1.30
Vane Count: 72 CV
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
GT 72 Curved Vane - Spec-37 Iron - Plain GT 72 Curved Vane - Spec-37 Iron - Plain Zoom Image
Rotor Hats
Hat - Part No: 170-15649
Type: Big Brake Hat - Flared Bell
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.226
Bolt Circle 1: 5 x 5.67
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.500
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000

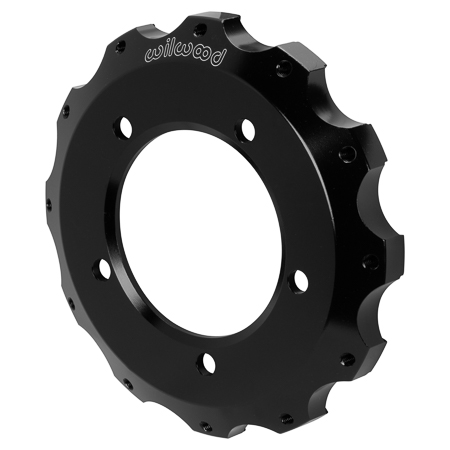

Big Brake Hat - Flared Bell - Aluminum - Black E-Coat Big Brake Hat - Flared Bell - Aluminum - Black E-Coat Zoom Image
