Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
Prod #: 140-15214-DR
Price: $2,257.34
Front Brake Kit — 140-15214-DR


Kit Contents

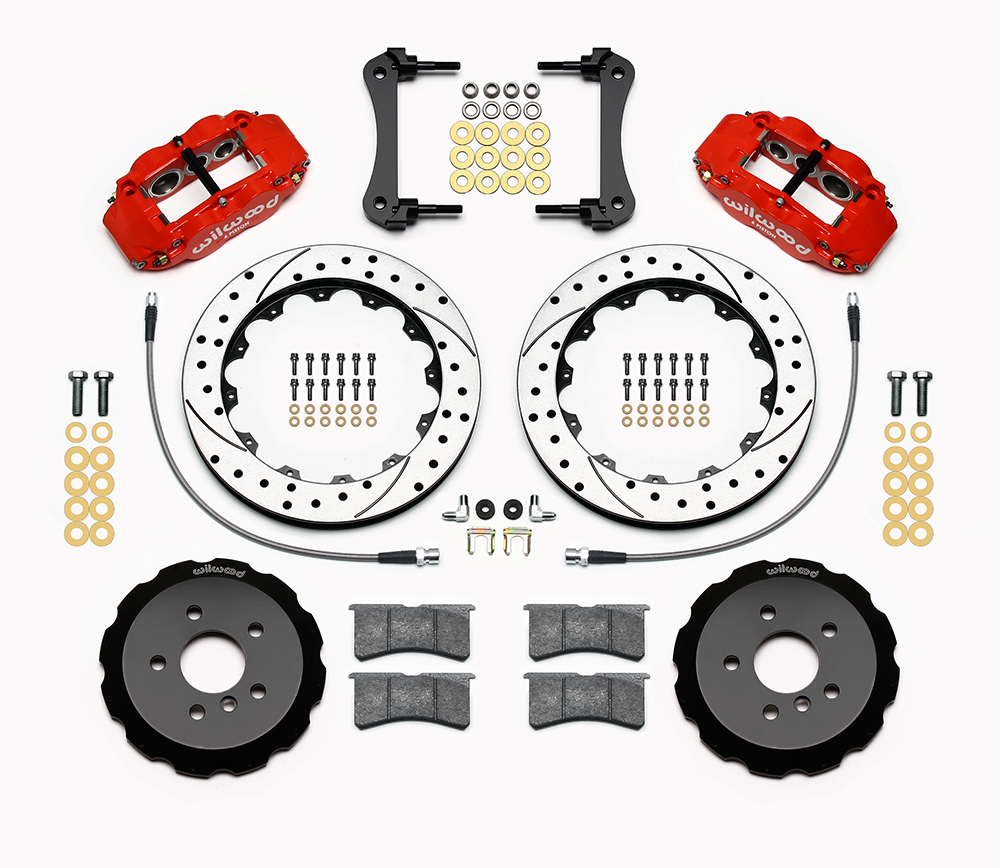

Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) Parts Laid Out - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) Parts Laid Out - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Red Powder Coat
Rotor Diameter: 12.88
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545075663

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.


Fitment & Installation Details


Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) Assembly Schematic

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) Assembly Schematic Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Mini

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. Will only fit vehicles with 5 lug, 5 x 4.41" (5 x 112mm) bolt circle wheels.

Kit Components & Specifications
Calipers
Left Hand - Part No: 120-11781-RD
Right Hand - Part No: 120-11780-RD
Type: Forged Narrow Superlite 6R
Finish Color: Red Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.12
Piston 3 Bore (in): 1.12
Piston Area (In²): 4.04
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7416
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 3.8
Pad Compound: BP-10

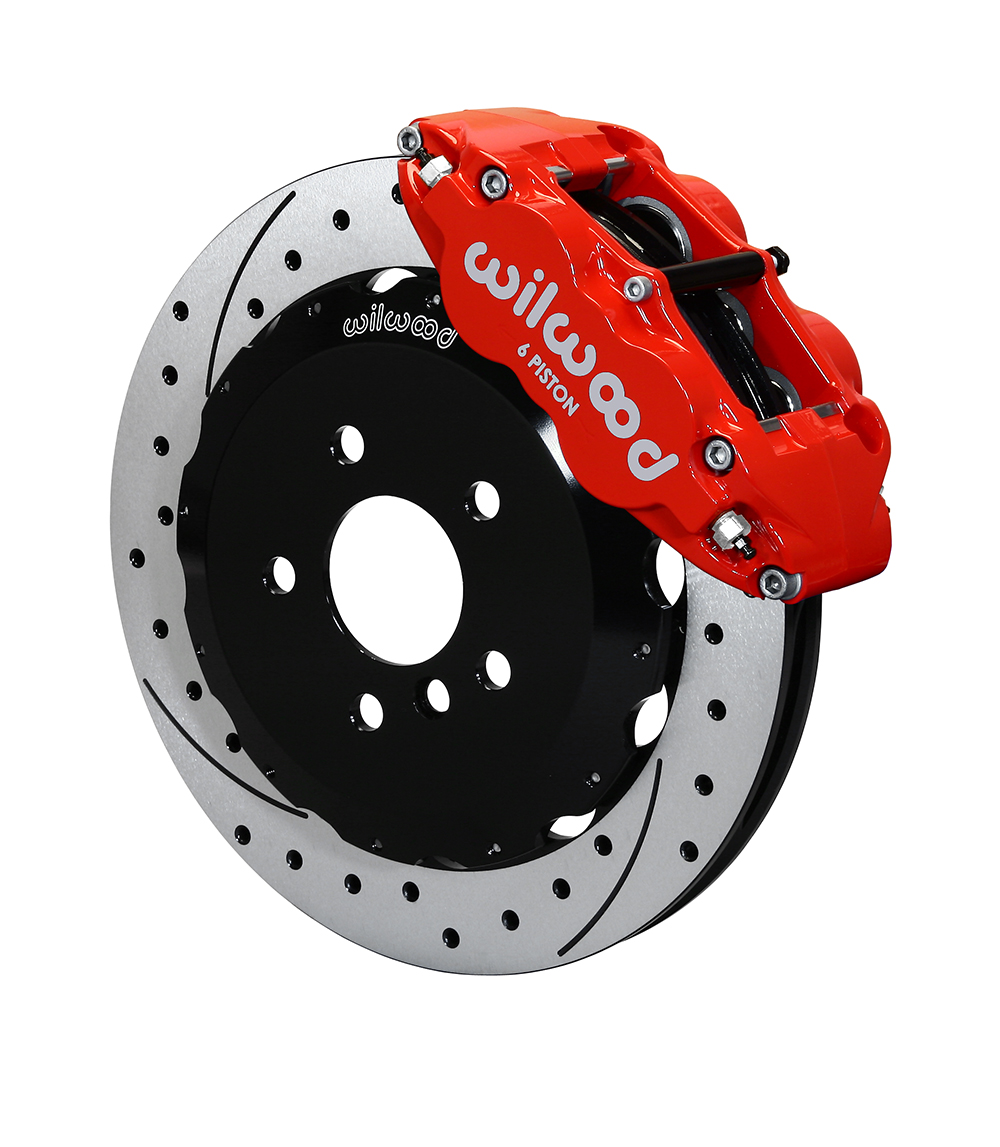

Forged Narrow Superlite 6R Caliper - Red Powder Coat Forged Narrow Superlite 6R Caliper - Red Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-13544-BK
Right Hand - Part No: 160-13543-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Spec-37 Iron
Outside Diameter (in): 12.88
Width (in): 1.10
Vane Count: 48 CV
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: Yes
SRP Drilled Rotor - Spec-37 Iron - Black Electro Coat SRP Drilled Rotor - Spec-37 Iron - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No: 170-15215
Type: Big Brake Hat - Short Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.600
Bolt Circle 1: 5 x 4.41
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.000
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000
Big Brake Hat - Short Offset - Aluminum - Black E-Coat Big Brake Hat - Short Offset - Aluminum - Black E-Coat Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-5972
Replacement Dustboot: N-A
Replacement Piston 1: 200-7520
Replacement Piston 2: 200-8439
Replacement Piston 3: 200-8439
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 230-17553
Wear Plate - Left Hand: 300-6596
Wear Plate - Right Hand: 300-6595
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
 		220-8491
Hat
Bolt Kit: 230-8008
Hub
Bolt Kit:
Products commonly used with this item:




$92.98
More Details





Additional related products:




More Details
More Details
More Details
More Details
