Front Brake Kit – Part No: 140-15173-BK
Call (805) 388-1188
SLC56 Front Replacement Caliper Kit
Prod #: 140-15173-BK
Price: $800.66

*Line Kit Needed


220-15194
$102.61
*Line Kit Needed


220-8021
$96.20
Front Brake Kit — 140-15173-BK


Kit Contents

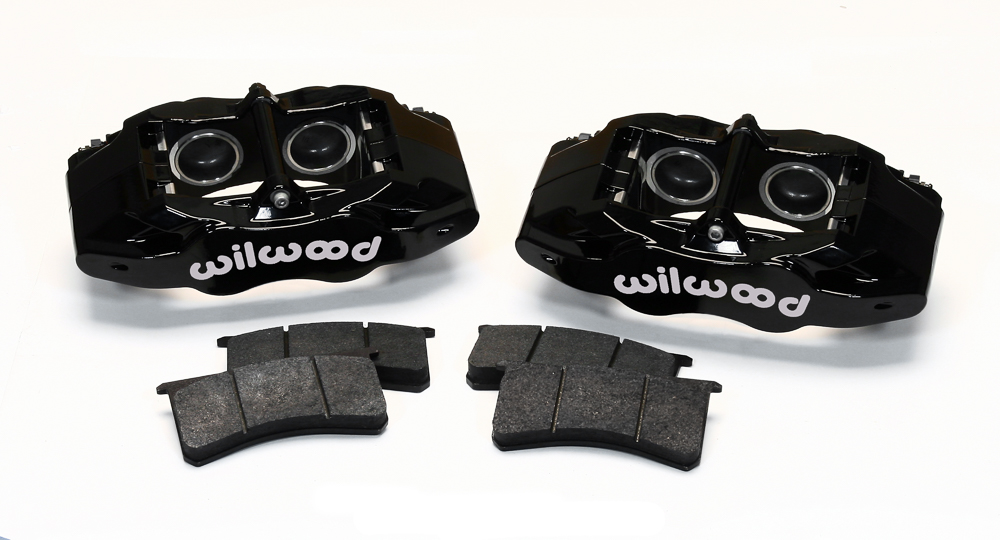

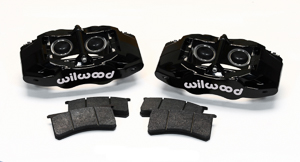

Wilwood SLC56 Front Replacement Caliper Kit Parts Laid Out - Black Powder Coat Caliper Wilwood SLC56 Front Replacement Caliper Kit Parts Laid Out - Black Powder Coat Caliper Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Lug
Caliper Type: 4 - Black Powder Coat
Rotor Diameter:
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545075069

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


SLC56 Front Replacement Caliper Kit

SLC56 front calipers are engineered as a high performance street and custom replacement for Corvettes and hot rods using Corvette suspension. These kits combine the high-tech styling and superior performance of the SLC56 calipers with the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits are a direct bolt-on replacement for the OE calipers on all models of the C5 from 1997 to 2004, and all base model C6’s from 2005 to 2013 using the existing 12.8” diameter OE dimension front rotors. The calipers attach directly to the Corvette spindle without the need for brackets or adapters and accept all types of OE banjo bolt style brake hoses.


Fitment & Installation Details

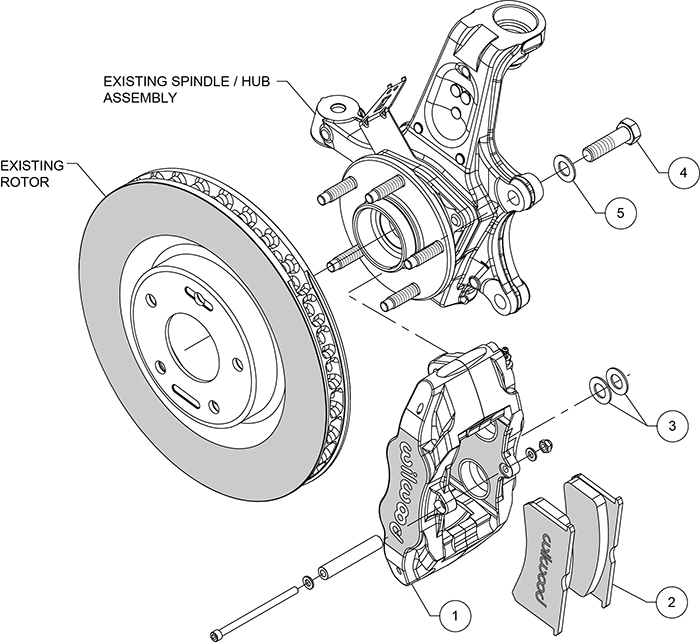

SLC56 Front Replacement Caliper Kit Assembly Schematic

SLC56 Front Replacement Caliper Kit Assembly Schematic SLC56 Front Replacement Caliper Kit Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   SLC56 Front Replacement Caliper Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Chevrolet

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

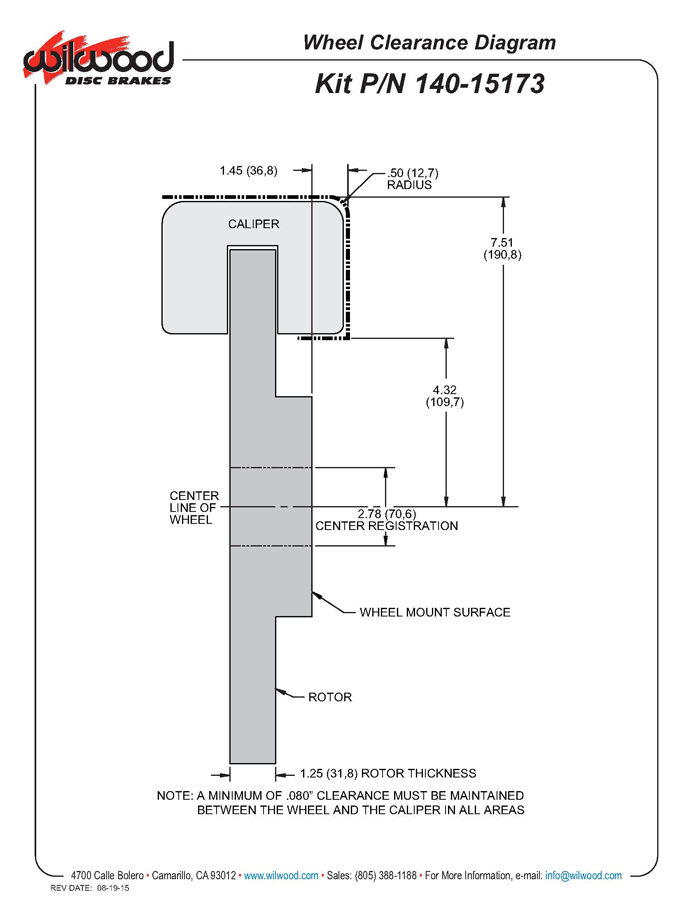

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.80 diameter front rotor.
2. SLC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.



Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13915-BK
Right Hand - Part No: 120-13915-BK
Type: SLC56
Finish Color: Black Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.62
Piston Area (In²): 4.12
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7416
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 3.8
Pad Compound: BP-10

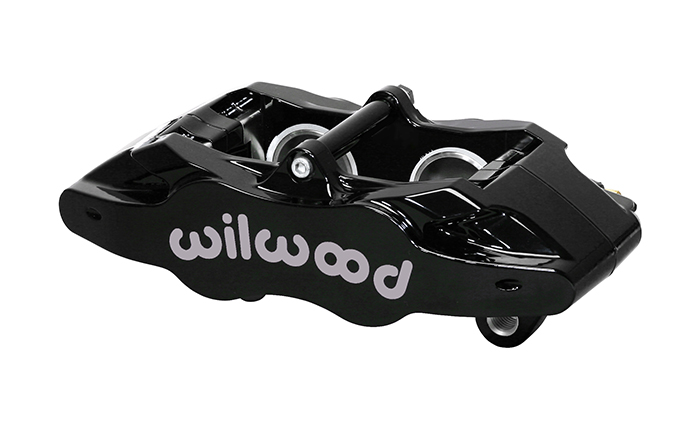

SLC56 Caliper - Black Powder Coat SLC56 Caliper - Black Powder Coat Zoom Image
Rotors
Left Hand - Part No:
Right Hand - Part No:
Type:
Style:
Surface Finish:
Material:
Outside Diameter (in):
Width (in):
Vane Count:
Design Type:
Bedded:
Dynamically Balanced:
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-4346
Replacement Dustboot: N-A
Replacement Piston 1: 200-7520
Replacement Piston 2: 200-7520
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-6595
Wear Plate - Right Hand: 300-6596
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Front Line Kit:
Front Line Kit:
220-8021
220-15194
Hat
Bolt Kit:
Hub
Bolt Kit:

Additional related products:




More Details
More Details
More Details
More Details
