Forged Dynalite Pro Series Front Brake Kit
Prod #: 140-15153-R
Price: $898.78
Front Brake Kit — 140-15153-R


Kit Contents

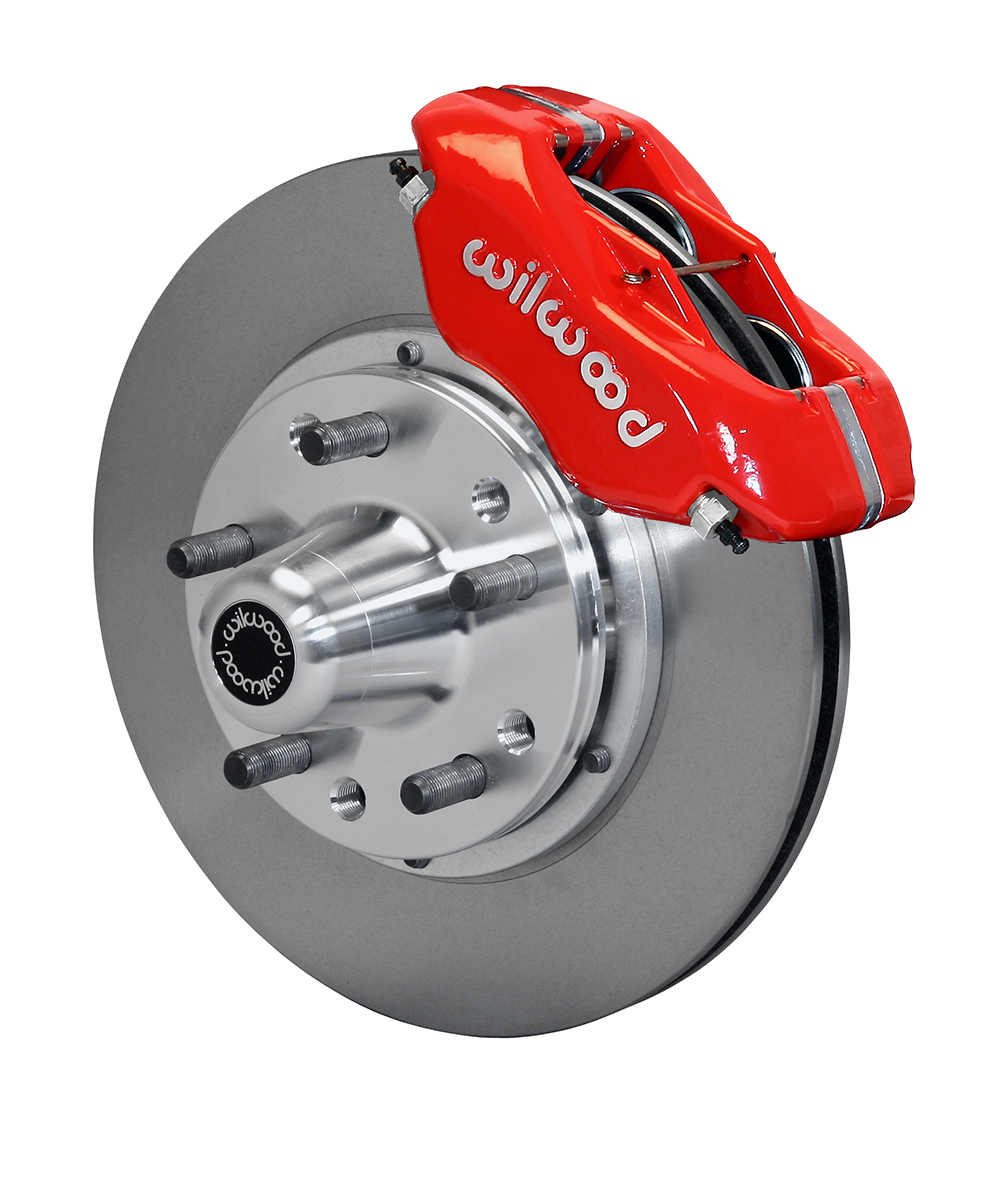

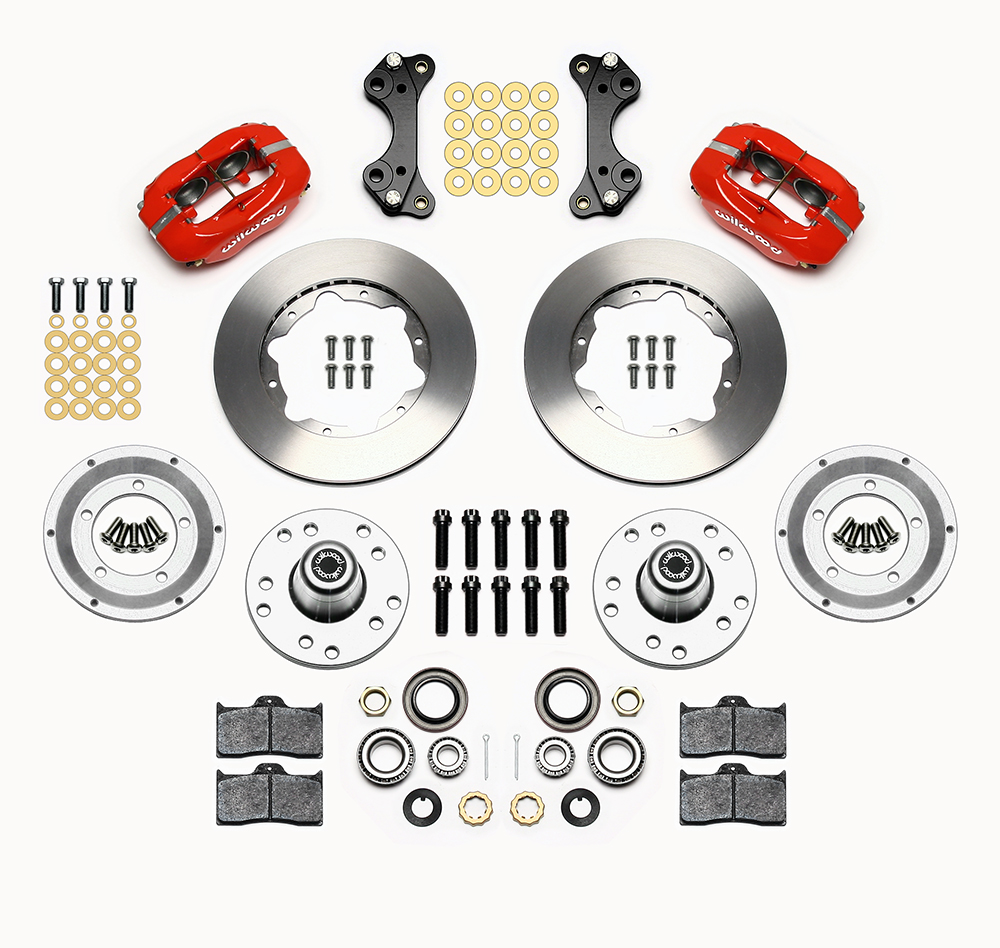

Wilwood Forged Dynalite Pro Series Front Brake Kit Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor Wilwood Forged Dynalite Pro Series Front Brake Kit Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
OE Hub Offset: +.10
(Increase / Decrease Track Width)
Spindle Type: Factory Disc Spindle
Mount Type: Lug
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 11.00
Min Wheel Diameter Req'd*: 14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545074833

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Dynalite Pro Series Front Brake Kit

FDL Pro-Series Front Hub Kits for Wilwood's Pro Spindles offer complete disc brake upgrade solutions for drop spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Now with modified hubs for 5 x 4.50" and 5 x 5.00" bolt circle Wheels. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Kits require no modifications for installation, and provide plenty of clearance inside popular 15” wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.


Fitment & Installation Details


Forged Dynalite Pro Series Front Brake Kit Assembly Schematic

Forged Dynalite Pro Series Front Brake Kit Assembly Schematic Forged Dynalite Pro Series Front Brake Kit Assembly Schematic


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Dynalite Pro Series Front Brake Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Art Morrison Roadster Shop Wilwood

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF: +.10
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram



Assembly Instructions
Notes
1. Hub contains 5 x 4.50 & 5 x 5.00" wheel bolt circle, will not service 5 x 4.75 BC" wheels

Kit Components & Specifications
Calipers
Left Hand - Part No: 120-6816-RD
Right Hand - Part No: 120-6816-RD
Type: Forged Dynalite
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.75
Piston Area (In²): 4.80
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Forged Dynalite Caliper - Red Powder Coat Forged Dynalite Caliper - Red Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-5840
Right Hand - Part No: 160-5840
Type: Ultralite HP 30
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 11.00
Width (in): 0.81
Vane Count: 30 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Ultralite HP 30 - Iron - Plain Ultralite HP 30 - Iron - Plain Zoom Image
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No: 270-15149
Type: Hub - Vented Rotor Offset
Material: Aluminum
Finish Color: Bare
Mount Style: Adapter
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 5.00
Bolt Circle 3:
Stud Diameter - BC 1: 1/2-20
Stud Diameter - BC 2: 1/2-20
Stud Diameter - BC 3:
Hub - Vented Rotor Offset - Aluminum - Bare Hub - Vented Rotor Offset - Aluminum - Bare Zoom Image

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2655
Replacement Dustboot: N-A
Replacement Piston 1: 200-7528
Replacement Piston 2: 200-7528
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 180-0055
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Front Line Kit:
 		220-8307
Hat
Bolt Kit:
Hub
Bolt Kit:

Additional related products:




More Details
More Details
More Details
More Details






All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
     Copyright ©2021 Wilwood Engineering, Inc. - All Rights Reserved
Version: 3.05 June 23, 2023
