Front Brake Kit – Part No: 140-13876-D
Call (805) 388-1188
TX6R Big Brake Truck Front Brake Kit
Prod #: 140-13876-D
Price: $3,148.54
Front Brake Kit — 140-13876-D


Kit Contents

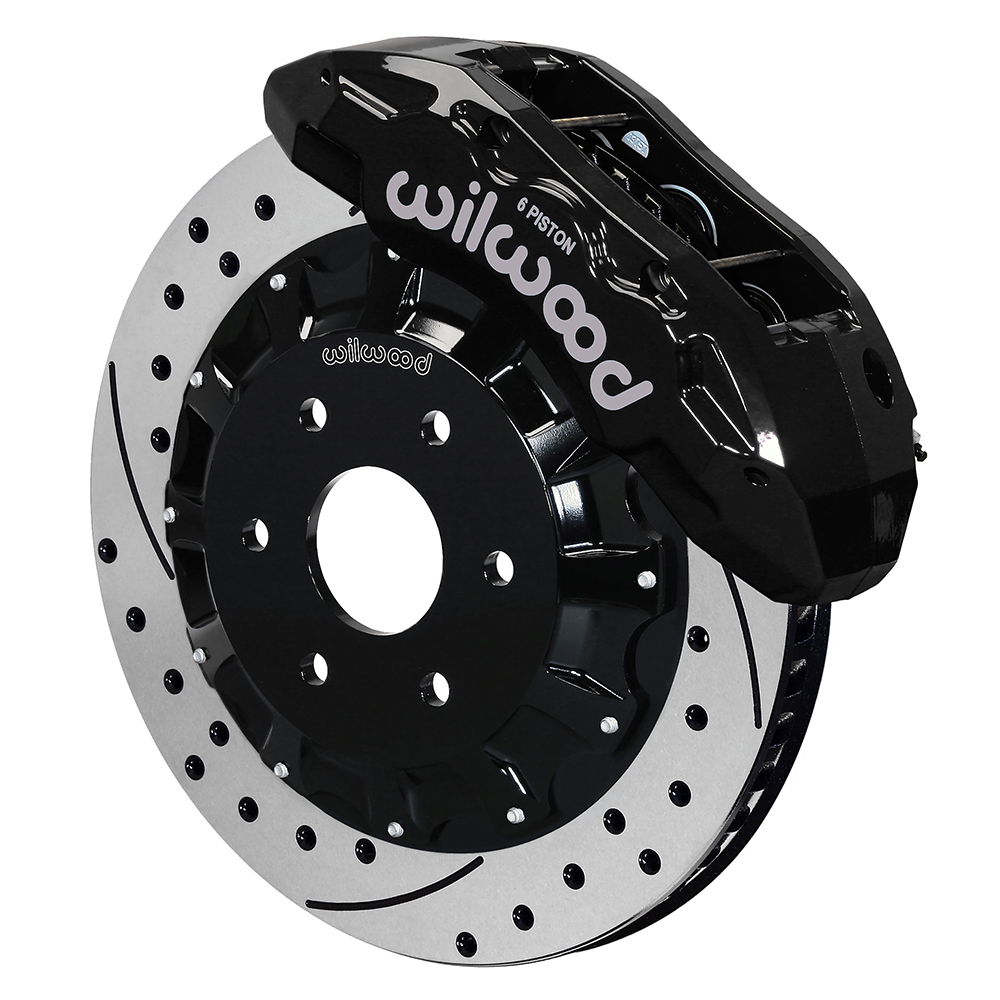

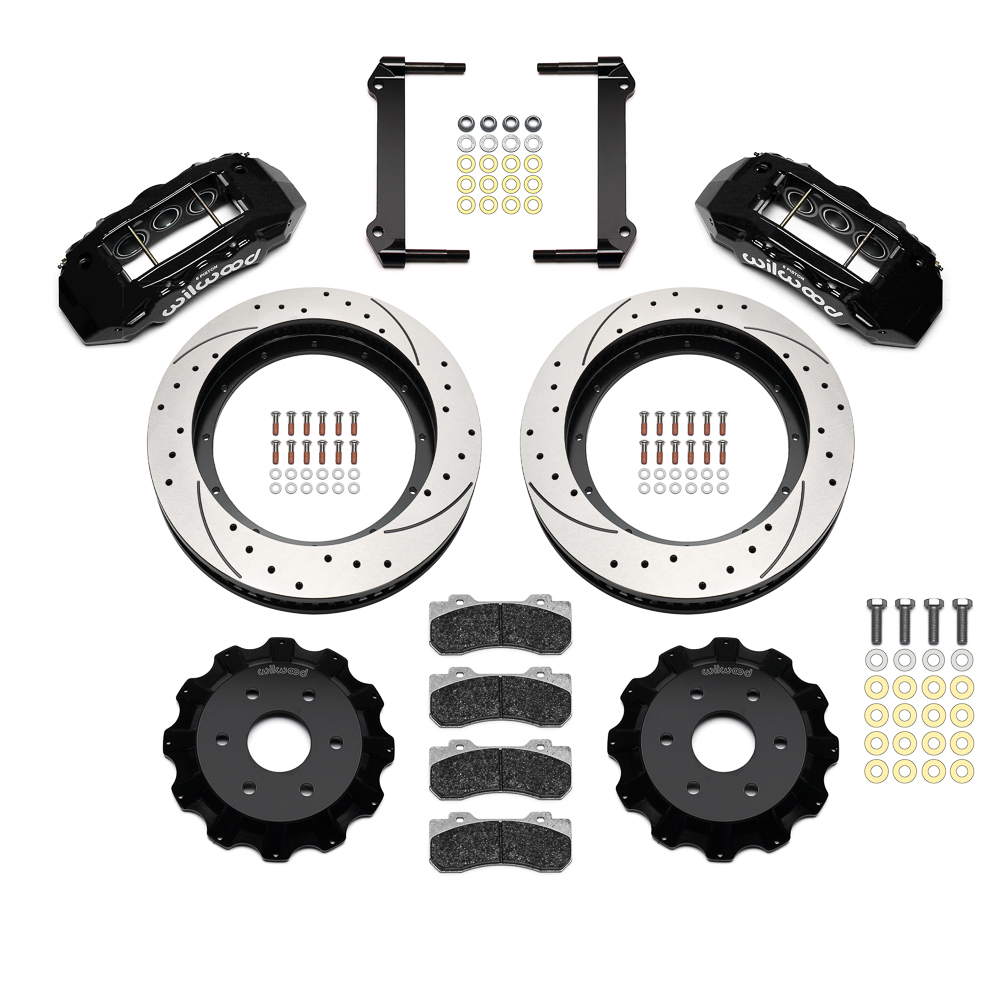

Wilwood TX6R Big Brake Truck Front Brake Kit Parts Laid Out - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Wilwood TX6R Big Brake Truck Front Brake Kit Parts Laid Out - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Black Powder Coat
Rotor Diameter: 16.00
Min Wheel Diameter Req'd*: 20
*This Brake Kit may fit 20-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545112245

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


TX6R Big Brake Truck Front Brake Kit

Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.


Fitment & Installation Details


TX6R Big Brake Truck Front Brake Kit Assembly Schematic

TX6R Big Brake Truck Front Brake Kit Assembly Schematic TX6R Big Brake Truck Front Brake Kit Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   TX6R Big Brake Truck Front Brake Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Cadillac Chevrolet GMC

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. Kit will work with both Iron / Steel and Aluminum spindles.

Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13818-BK
Right Hand - Part No: 120-13817-BK
Type: TX6R
Finish Color: Black Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.62
Piston 3 Bore (in): 1.62
Piston Area (In²): 6.52
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 10120
Brake Pad Area (In²): 12.69
Brake Pad Volume (In³): 6.81
Pad Compound: BP-Q
TX6R Caliper - Black Powder Coat TX6R Caliper - Black Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-16996-BK
Right Hand - Part No: 160-16995-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 16.00
Width (in): 1.38
Vane Count: 72 SV
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: Yes
SRP Drilled Rotor - Iron - Black Electro Coat SRP Drilled Rotor - Iron - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No: 170-8960
Type: Truck Hat - Standard
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.810
Bolt Circle 1: 6 X 5.50
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.630
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000
Truck Hat - Standard - Aluminum - Black E-Coat Truck Hat - Standard - Aluminum - Black E-Coat Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-14278
Replacement Dustboot: N-A
Replacement Piston 1: 200-7531
Replacement Piston 2: 200-7519
Replacement Piston 3: 200-7519
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5922
Wear Plate - Right Hand: 300-5923
Pad Retainer: 180-9874
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Front Line Kit:
 Front Line Kit:
 		220-8998
 220-10979
Hat
Bolt Kit: 230-12176
Hub
Bolt Kit:
