Front Brake Kit – Part No: 140-13477-DR
Classic Series Dynalite Front Brake Kit
Prod #:
140-13477-DR
Price:
$1,074.83
Available Brake Kit #140-13477 Configurations
Available Brake Kit #140-13477 Configurations
Front Brake Kit — 140-13477-DR
|
Kit Contents
|

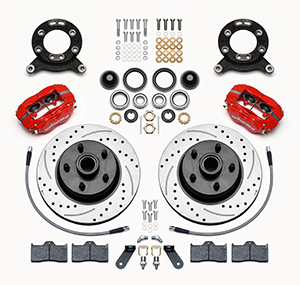

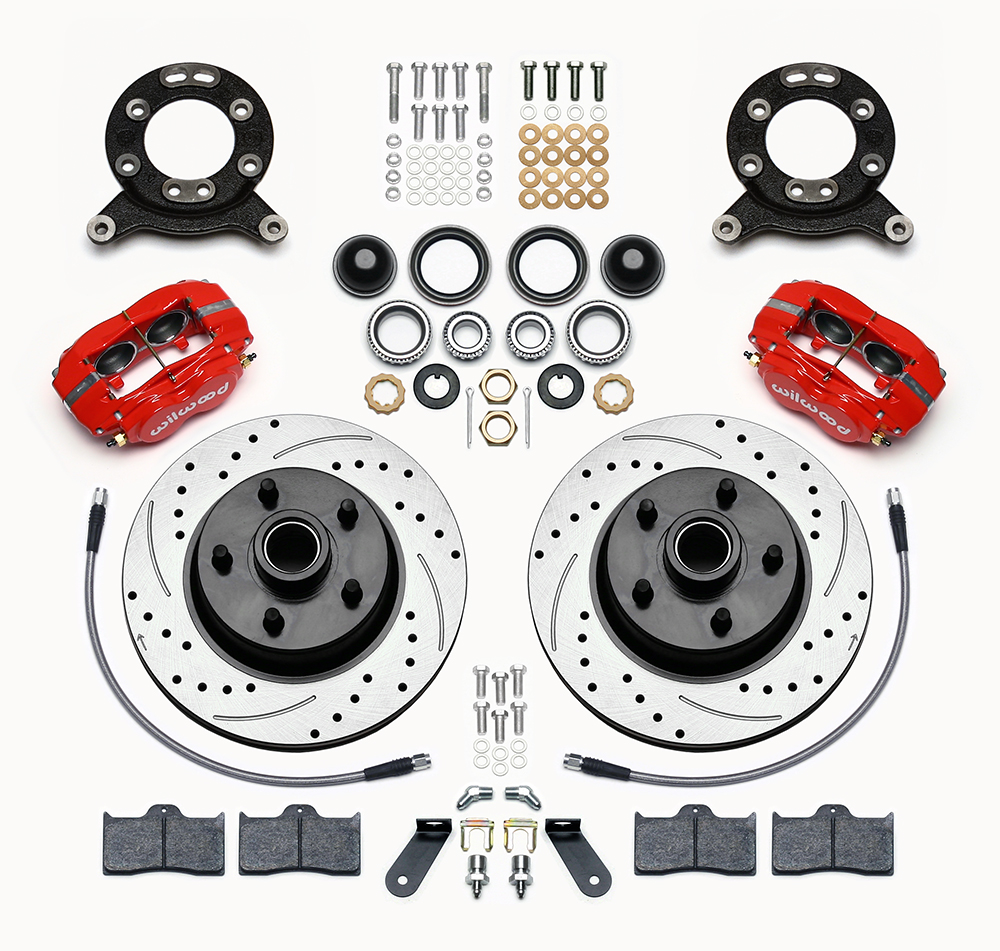

Wilwood Classic Series Dynalite Front Brake Kit Parts Laid Out - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor
Click Image to Close
|
View Custom Caliper Colors
|
|
Kit Summary
|
|
OE Hub Offset:
|
.00
|
|
(Increase / Decrease Track Width)
|
|
Spindle Type:
|
Factory Disc Spindle
Factory Drum Spindle
|
|
Mount Type:
|
Lug
|
|
Caliper Type:
|
4 - Red Powder Coat
|
|
Rotor Diameter:
|
11.30
|
|
Min Wheel Diameter Req'd*:
|
14
|
|
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Wheel Clearance Diagram
|
| UPC Number |
| UPC |
889545020526 |

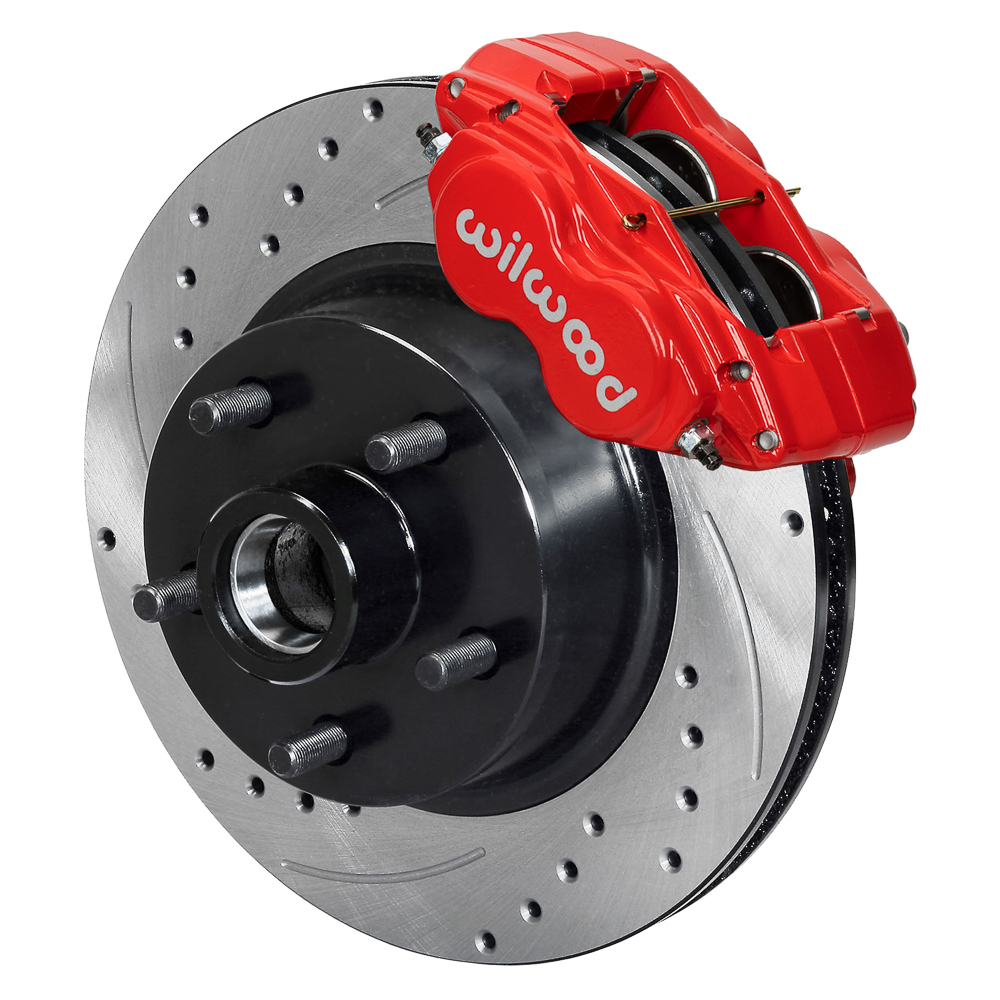

Classic Series Dynalite Front Brake Kit
Wilwood's Classic Series front disc brake kits for 1970 to 1973 Ford Mustangs offer disc brake upgrade solutions for OEM drum or disc spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.30" diameter x 0.94” thick one-piece rotors. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14" OEM disc brake wheels. Kits will not fit OEM drum brake wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware, flex lines and detailed installation instructions.
Fitment & Installation Details
Kit Components & Specifications
|
Calipers
|
|
Left Hand - Part No:
|
120-13551-RD
|
|
Right Hand - Part No:
|
120-13551-RD
|
|
Type:
|
Forged Dynalite-M
|
|
Finish Color:
|
Red Powder Coat
|
|
Piston Count:
|
4
|
|
Piston 1 Bore (in):
|
1.75
|
|
Piston 2 Bore (in):
|
1.75
|
|
Piston Area (In²):
|
4.80
|
|
Piston Type:
|
Stainless
|
|
Mount Type:
|
Lug
|
|
Brake Pad Plate:
|
7112
|
|
Brake Pad Area (In²):
|
6.36
|
|
Brake Pad Volume (In³):
|
2.1
|
|
Pad Compound:
|
BP-10
|
Forged Dynalite-M Caliper - Red Powder Coat
Click Image to Close
|
|
Rotors
|
|
Left Hand - Part No:
|
160-14326-BK
|
|
Right Hand - Part No:
|
160-14325-BK
|
|
Type:
|
1 PC Hub and Rotor
|
|
Style:
|
SRP Drilled & Slotted
|
|
Surface Finish:
|
Black Electro Coat
|
|
Material:
|
Iron
|
|
Outside Diameter (in):
|
11.29
|
|
Width (in):
|
0.94
|
|
Vane Count:
|
Vented
|
|
Design Type:
|
SRP-BLK
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
No
|
1 PC Hub and Rotor - Iron - Black Electro Coat
Click Image to Close
|
|
Rotor Hats
|
|
Hat - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Hat Offset Dimension (in):
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
|
