Front Brake Kit – Part No: 140-13303-R
Forged Dynapro 6 Big Brake Front Brake Kit (Hat)
Prod #:
140-13303-R
Price:
$1,385.98
Available Brake Kit #140-13303 Configurations
Available Brake Kit #140-13303 Configurations
Front Brake Kit — 140-13303-R
|
Kit Contents
|

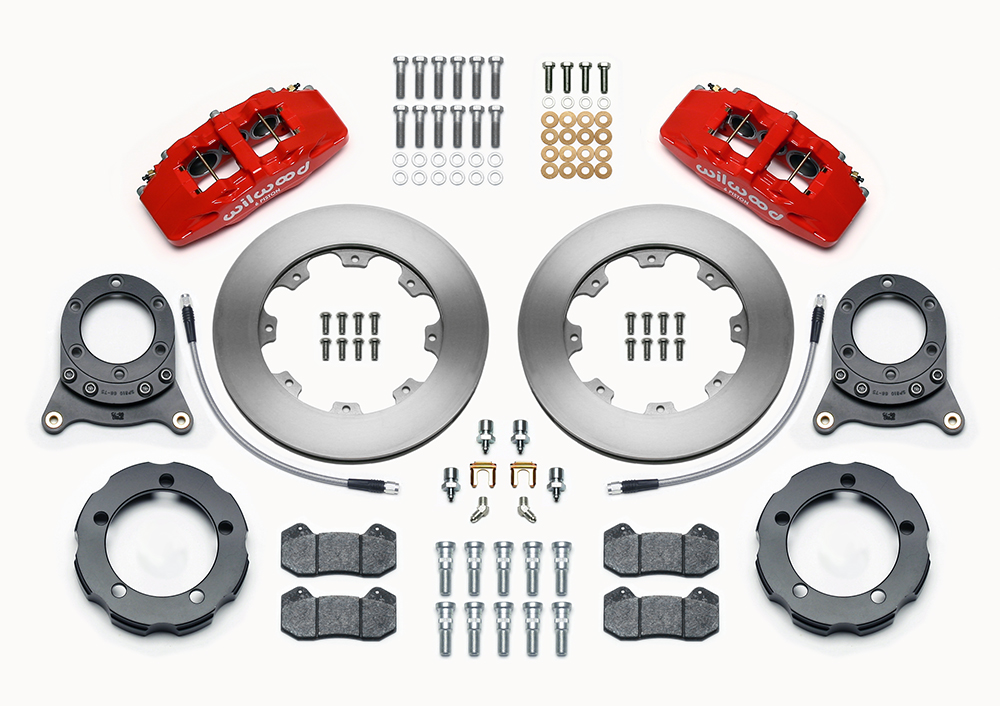

Wilwood Forged Dynapro 6 Big Brake Front Brake Kit (Hat) Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor
Click Image to Close
|
View Custom Caliper Colors
|
|
Kit Summary
|
|
OE Hub Offset:
|
+.00
|
|
(Increase / Decrease Track Width)
|
|
Spindle Type:
|
Factory Drum Spindle
|
|
Mount Type:
|
Lug
|
|
Caliper Type:
|
6 - Red Powder Coat
|
|
Rotor Diameter:
|
11.75
|
|
Min Wheel Diameter Req'd*:
|
15
|
|
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Wheel Clearance Diagram
|
| UPC Number |
| UPC |
889545019636 |

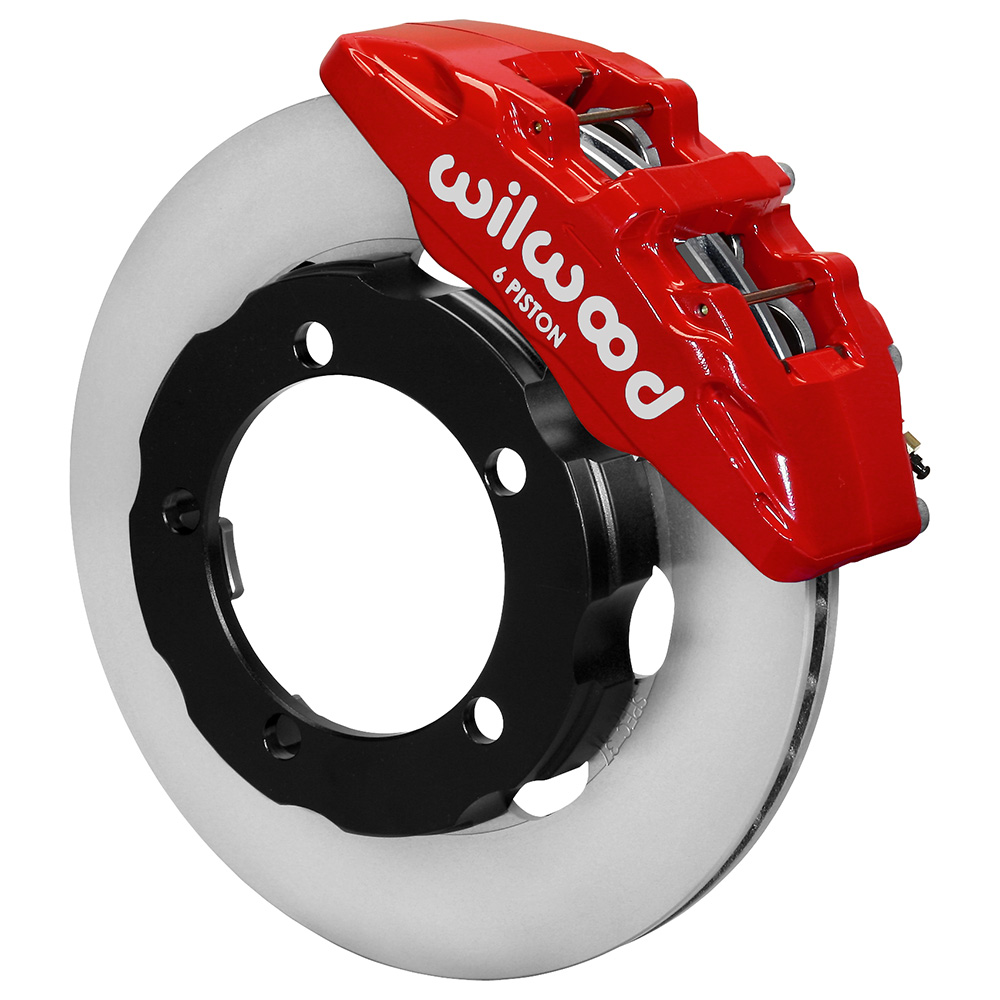

Forged Dynapro 6 Big Brake Front Brake Kit (Hat)
The enhanced brake capacity and pad performance of the DynaPro 6 forged billet six-piston caliper is combined with 11.75” diameter rotors for the popular Ford Bronco vehicles. These kits are the perfect complement to wheel, tire, and suspension upgrades on daily drivers or competition vehicles. Each kit is engineered vehicle specific and utilizes the existing hub assembly. Optional caliper finishes enable the builder to personalize the style and optimize brake performance for every individual application
Fitment & Installation Details
Kit Components & Specifications
|
Calipers
|
|
Left Hand - Part No:
|
120-13429-RD
|
|
Right Hand - Part No:
|
120-13428-RD
|
|
Type:
|
Dynapro 6
|
|
Finish Color:
|
Red Powder Coat
|
|
Piston Count:
|
6
|
|
Piston 1 Bore (in):
|
1.62
|
|
Piston 2 Bore (in):
|
1.38
|
|
Piston 3 Bore (in):
|
1.38
|
|
Piston Area (In²):
|
5.06
|
|
Piston Type:
|
Stainless
|
|
Mount Type:
|
Lug
|
|
Brake Pad Plate:
|
6712
|
|
Brake Pad Area (In²):
|
7.3
|
|
Brake Pad Volume (In³):
|
2.4
|
|
Pad Compound:
|
BP-10
|
Dynapro 6 Caliper - Red Powder Coat
Click Image to Close
|
|
Rotors
|
|
Left Hand - Part No:
|
160-12284
|
|
Right Hand - Part No:
|
160-12283
|
|
Type:
|
HD 36 Curved Vane
|
|
Style:
|
Plain Face
|
|
Surface Finish:
|
Plain
|
|
Material:
|
Spec-37 Iron
|
|
Outside Diameter (in):
|
11.75
|
|
Width (in):
|
0.81
|
|
Vane Count:
|
36 CV
|
|
Design Type:
|
HD
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
No
|
HD 36 Curved Vane - Spec-37 Iron - Plain
Click Image to Close
|
|
Rotor Hats
|
|
Hat - Part No:
|
170-13313
|
|
Type:
|
Big Brake Hat - Short Offset
|
|
Material:
|
Aluminum
|
|
Finish Color:
|
Black E-Coat
|
|
Hat Offset Dimension (in):
|
1.450
|
|
Bolt Circle 1:
|
5 x 5.50
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
0.640
|
|
Stud Diameter - BC 2:
|
0.000
|
|
Stud Diameter - BC 3:
|
0.000
|
Big Brake Hat - Short Offset - Aluminum - Black E-Coat
Click Image to Close
|
|
Hubs
|
|
Hub - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Mount Style:
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
