Name: Dynapro Dust-Boot Pro Series Front Brake Kit
Brand: Wilwood
Availability: InStock

Front Brake Kit – Part No: 140-13202-R

Call (805) 388-1188

Dynapro Dust-Boot Pro Series Front Brake Kit

Prod #: 140-13202-R

Price: $1,156.10

Available Brake Kit #140-13202 Configurations

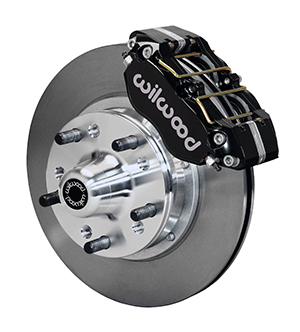

140-13202
Black Calipers
11.00-inch Rotors
Undrilled Rotors

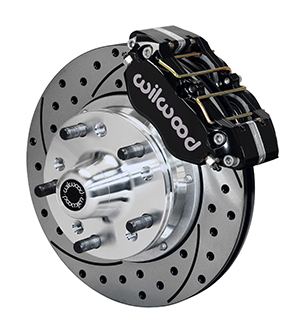

140-13202-D
Black Calipers
11.00-inch Rotors
Drilled & Slotted Rotors

140-13202-DR
Red Calipers
11.00-inch Rotors
Drilled & Slotted Rotors

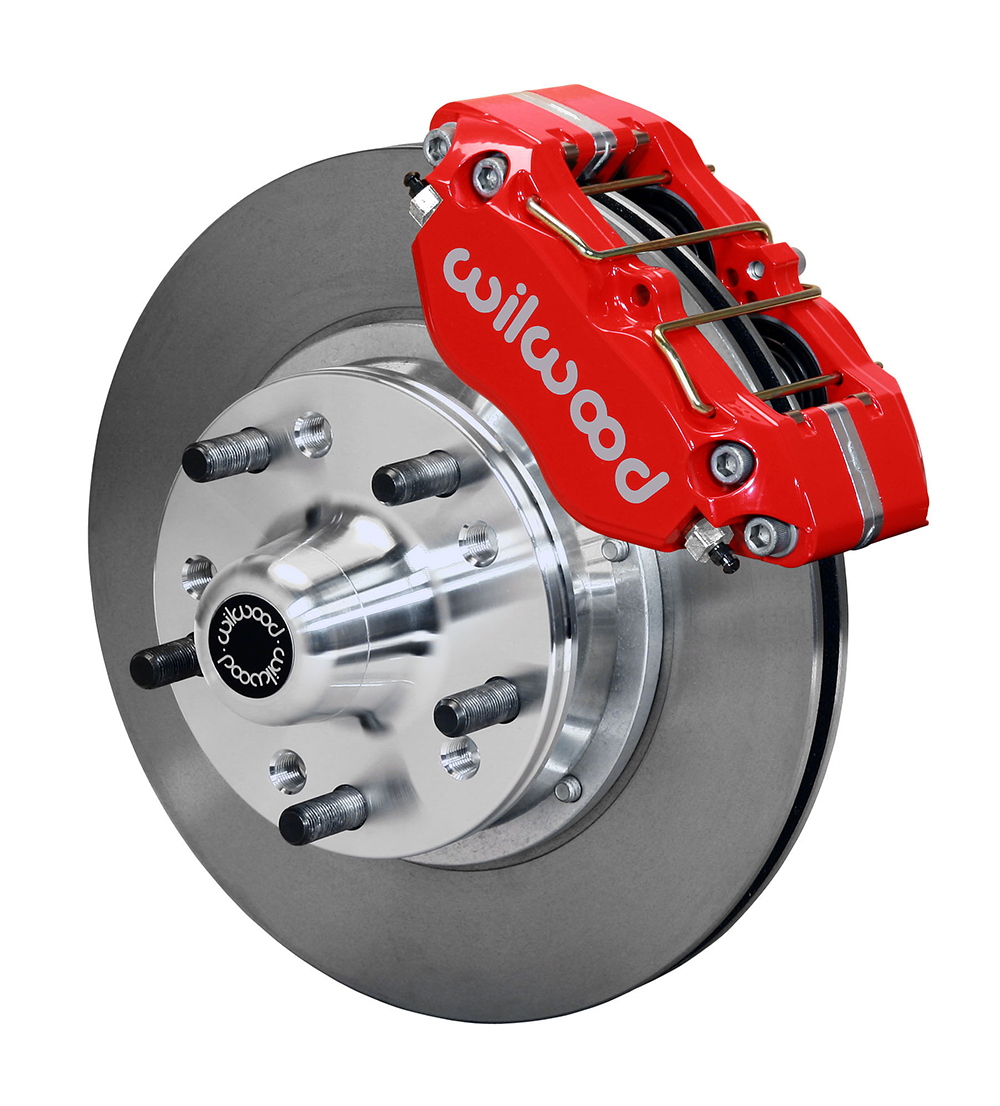

140-13202-R
Red Calipers
11.00-inch Rotors
Undrilled Rotors

*Line Kit Needed

220-7056
$76.95

Available Brake Kit #140-13202 Configurations

140-13202
Black Calipers
11.00-inch Rotors
Undrilled Rotors

140-13202-D
Black Calipers
11.00-inch Rotors
Drilled & Slotted Rotors

140-13202-DR
Red Calipers
11.00-inch Rotors
Drilled & Slotted Rotors

140-13202-R
Red Calipers
11.00-inch Rotors
Undrilled Rotors

*Line Kit Needed

220-7056
$76.95

Front Brake Kit — 140-13202-R

Kit Contents

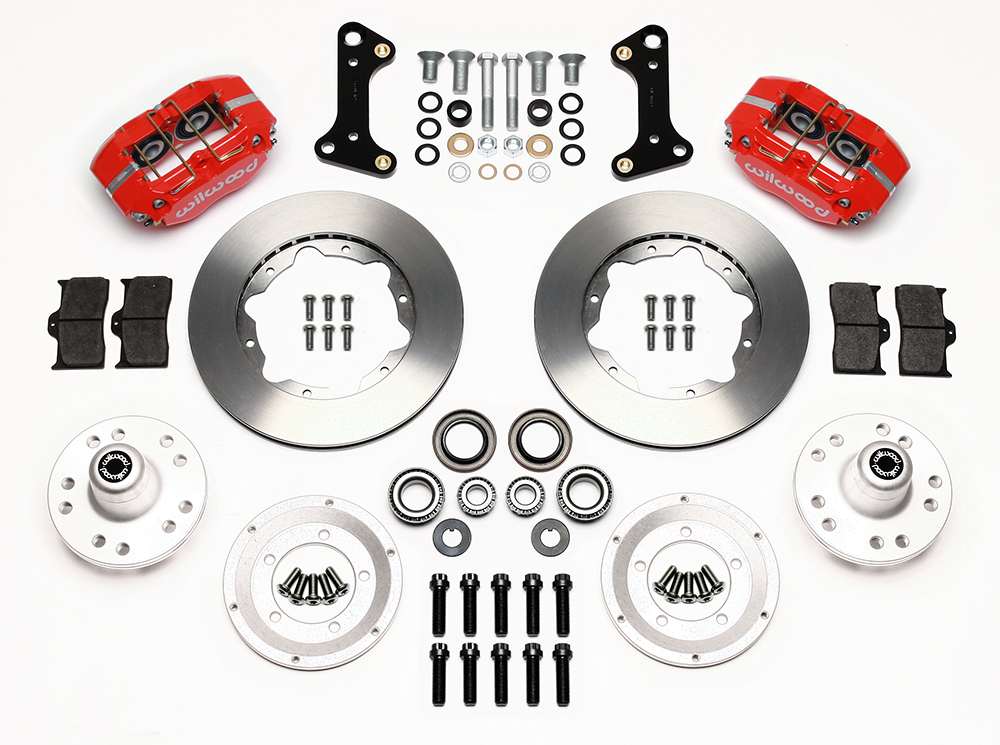

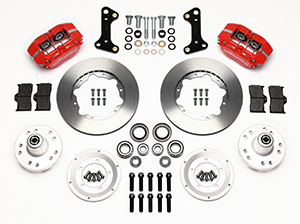

Wilwood Dynapro Dust-Boot Pro Series Front Brake Kit Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor Click Image to Close
View Custom Caliper Colors

Kit Summary
OE Hub Offset:	+.19
(Increase / Decrease Track Width)
Spindle Type:	Drop Spindle Factory Disc Spindle Factory Drum Spindle
Mount Type:	Lug
Caliper Type:	4 - Red Powder Coat
Rotor Diameter:	11.00
Min Wheel Diameter Req'd*:	14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

UPC Number
UPC	889545019179

	WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
	Applicable to Brake Pads Only

Dynapro Dust-Boot Pro Series Front Brake Kit

Wilwood's new DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable Forged Dynapro Dustboot caliper, these kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. DP-DB Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.

Fitment & Installation Details

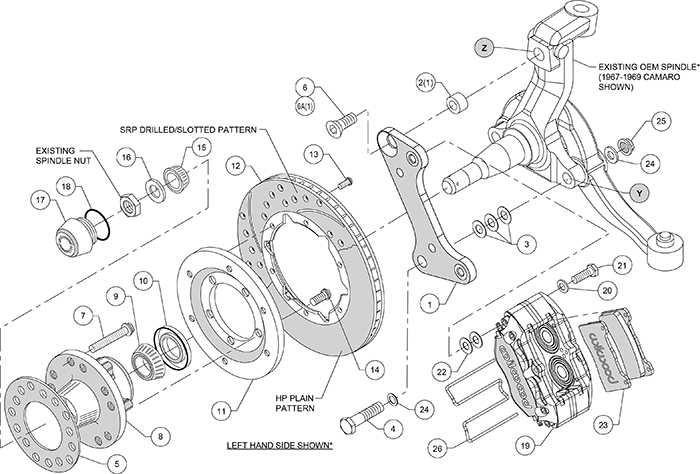

Dynapro Dust-Boot Pro Series Front Brake Kit Assembly Schematic

Dynapro Dust-Boot Pro Series Front Brake Kit Assembly Schematic Zoom Image

*NOTE: Some applications for this kit have the steering arm to the rear of the spindle and others to the front. Also, some applications have room to mount the bracket and caliper on the steering arm side of the spindle while the steering arm may interfere in other applications. The brackets in this kit may be mounted on either the front or rear side of the spindle. If mounting to the front of the spindle, the right hand bracket will be used on the left hand side of the vehicle and vice versa. This drawing shows a typical 1967-1969 Camaro left side application where the steering arm is to the rear and there is room to mount the caliper on the steering arm side as shown. Determine which way the bracket and caliper will fit best on your application.

Compatible Vehicles for this Brake Kit

BRAKE KIT: Dynapro Dust-Boot Pro Series Front Brake Kit

SPINDLE TYPE:

Drop Spindle;

Factory Disc Spindle;

Factory Drum Spindle ;

This Brake Kit is Compatible with the Following Vehicle Makes: Buick Chevrolet Ford GMC Heidts Mercury Oldsmobile Pontiac Ridetech

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles

Caution
	THIS BRAKE KIT HAS A HUB OFFSET OF: +.19 This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle

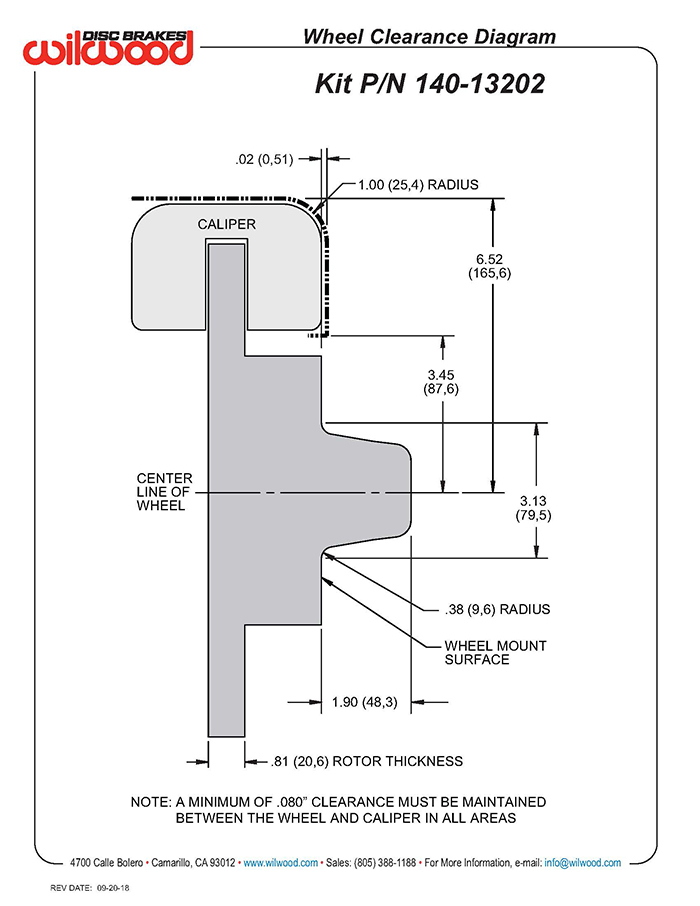

NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance	Assembly Instructions
Wheel Clearance Diagram Click Image to Close	Assembly Instructions

Notes

Kit Components & Specifications

Calipers
Left Hand - Part No:	120-11482-RD
Right Hand - Part No:	120-11482-RD
Type:	Dynapro Dust-Boot
Finish Color:	Red Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.75
Piston 2 Bore (in):	1.75
Piston Area (In²):	4.80
Piston Type:	Aluminum
Mount Type:	Lug
Brake Pad Plate:	7812
Brake Pad Area (In²):	6.36
Brake Pad Volume (In³):	2.1
Pad Compound:	BP-10
Dynapro Dust-Boot Caliper - Red Powder Coat Click Image to Close

Rotors
Left Hand - Part No:	160-5840
Right Hand - Part No:	160-5840
Type:	Ultralite HP 30
Style:	Plain Face
Surface Finish:	Plain
Material:	Iron
Outside Diameter (in):	11.00
Width (in):	0.81
Vane Count:	30 V
Design Type:	ULHP
Bedded:	No
Dynamically Balanced:	No
Ultralite HP 30 - Iron - Plain Click Image to Close

Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Hubs
Hub - Part No:	270-7274
Type:	Hub - Vented Rotor Offset
Material:	Aluminum
Finish Color:	Bare
Mount Style:	Adapter
Bolt Circle 1:	5 x 4.50
Bolt Circle 2:	5 x 4.75
Bolt Circle 3:
Stud Diameter - BC 1:	1/2-20
Stud Diameter - BC 2:	1/2-20
Stud Diameter - BC 3:
Hub - Vented Rotor Offset - Aluminum - Bare Click Image to Close

Parts & Accessories

Caliper Parts
O-ring Kit:	130-2655
Replacement Dustboot:	210-7210
Replacement Piston 1:	200-11484
Replacement Piston 2:	200-11484
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	130-10540
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:	N-A
Wear Plate - Left Hand:	300-5875
Wear Plate - Right Hand:	300-5875
Pad Retainer:	300-9636
Bleed Screw Kit:	220-0627

*Brake Lines Needed
Front Line Kit:	220-7056

Hat
Bolt Kit:

Hub
Bolt Kit:
