AERO6 Front Caliper and Bracket Upgrade Kit for Corvette C5-C6
Prod #: 140-12629
Price: $1,205.38
Available Brake Kit #140-12629 Configurations
Front Brake Kit — 140-12629


Kit Contents

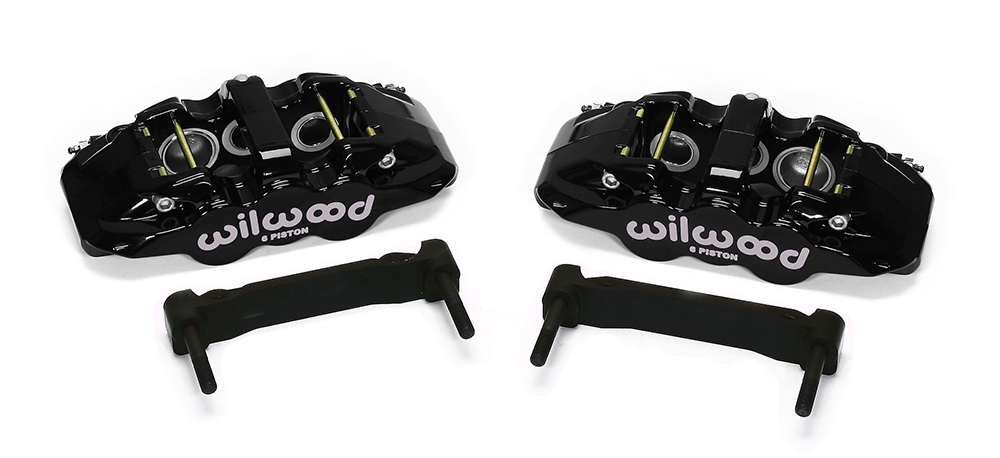

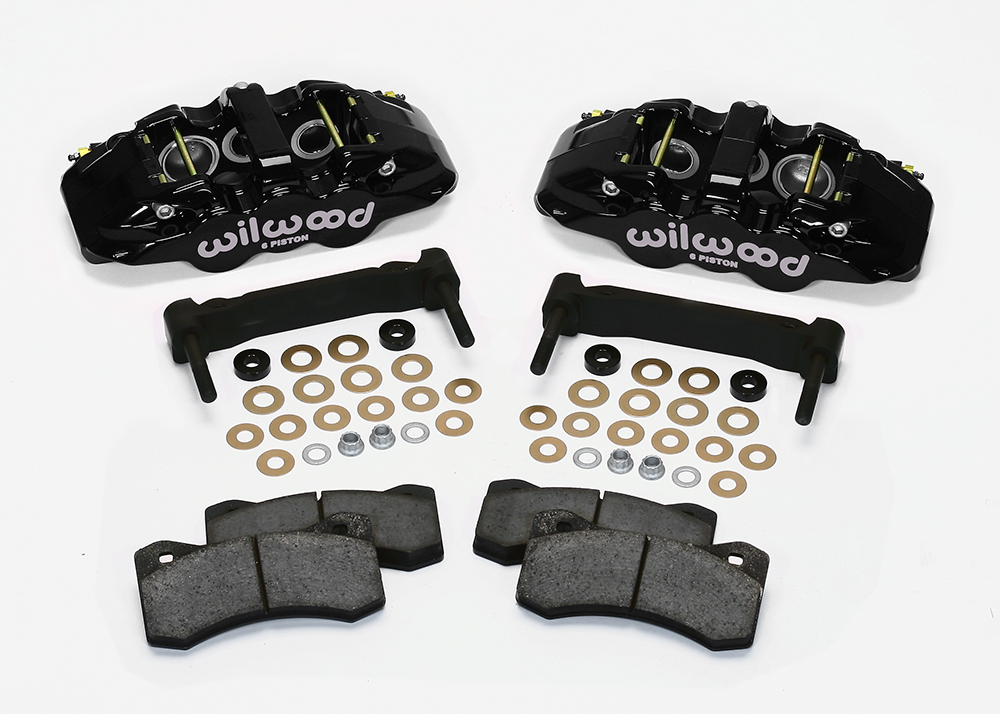

Wilwood AERO6 Front Caliper and Bracket Upgrade Kit for Corvette C5-C6 Parts Laid Out - Black Powder Coat Caliper Wilwood AERO6 Front Caliper and Bracket Upgrade Kit for Corvette C5-C6 Parts Laid Out - Black Powder Coat Caliper Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Drop Spindle Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Black Powder Coat
Rotor Diameter:
Min Wheel Diameter Req'd*: 18
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545017151

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


AERO6 Front Caliper and Bracket Upgrade Kit for Corvette C5-C6

Aerolite 6R six piston radial mount front caliper kits add big brake stopping power and style to any 1997-2013 C5 or C6 Corvette front suspension. These kits replace the OE calipers on all models and mount in the stock caliper location. All the necessary hardware is included for correct mounting height and offset with the very affordable one-piece 13.38” Z51 style rotors. Aerolite 6R calipers incorporate race proven technology in a high strength forged triple bridge body design. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high temperature fade resistance for auto-cross and other sport driving applications.


Fitment & Installation Details


AERO6 Front Caliper and Bracket Upgrade Kit for Corvette C5-C6 Assembly Schematic

AERO6 Front Caliper and Bracket Upgrade Kit for Corvette C5-C6 Assembly Schematic AERO6 Front Caliper and Bracket Upgrade Kit for Corvette C5-C6 Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   AERO6 Front Caliper and Bracket Upgrade Kit for Corvette C5-C6
SPINDLE TYPE:
Drop Spindle; Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Art Morrison ATS / Speedtech Buick Cadillac Chevrolet Detroit Speed Factory Five Racing GMC Oldsmobile Pontiac Ridetech

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. Requires 2005-13 J55 code Z51/J56 code 13.38”diameter rotors or aftermarket equivalent.
2. Use flexline kit 220-8176 for all 1997-04 C5
3. Use flexline kit 220-9100 for all 2005-13 C6


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13290-BK
Right Hand - Part No: 120-13289-BK
Type: AERO6
Finish Color: Black Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.12
Piston 3 Bore (in): 1.12
Piston Area (In²): 4.04
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 6617
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 5.2
Pad Compound: BP-20
AERO6 Caliper - Black Powder Coat AERO6 Caliper - Black Powder Coat Zoom Image
Rotors
Left Hand - Part No:
Right Hand - Part No:
Type: N-A
Style:
Surface Finish:
Material:
Outside Diameter (in):
Width (in):
Vane Count:
Design Type:
Bedded:
Dynamically Balanced:
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-5972
Replacement Dustboot: N-A
Replacement Piston 1: 200-7519
Replacement Piston 2: 200-7513
Replacement Piston 3: 200-7513
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: 180-9874
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Front Line Kit:
Front Line Kit:
220-8176
220-9100
Hat
Bolt Kit:
Hub
Bolt Kit:
