Front Brake Kit – Part No: 140-11811
Call (805) 388-1188

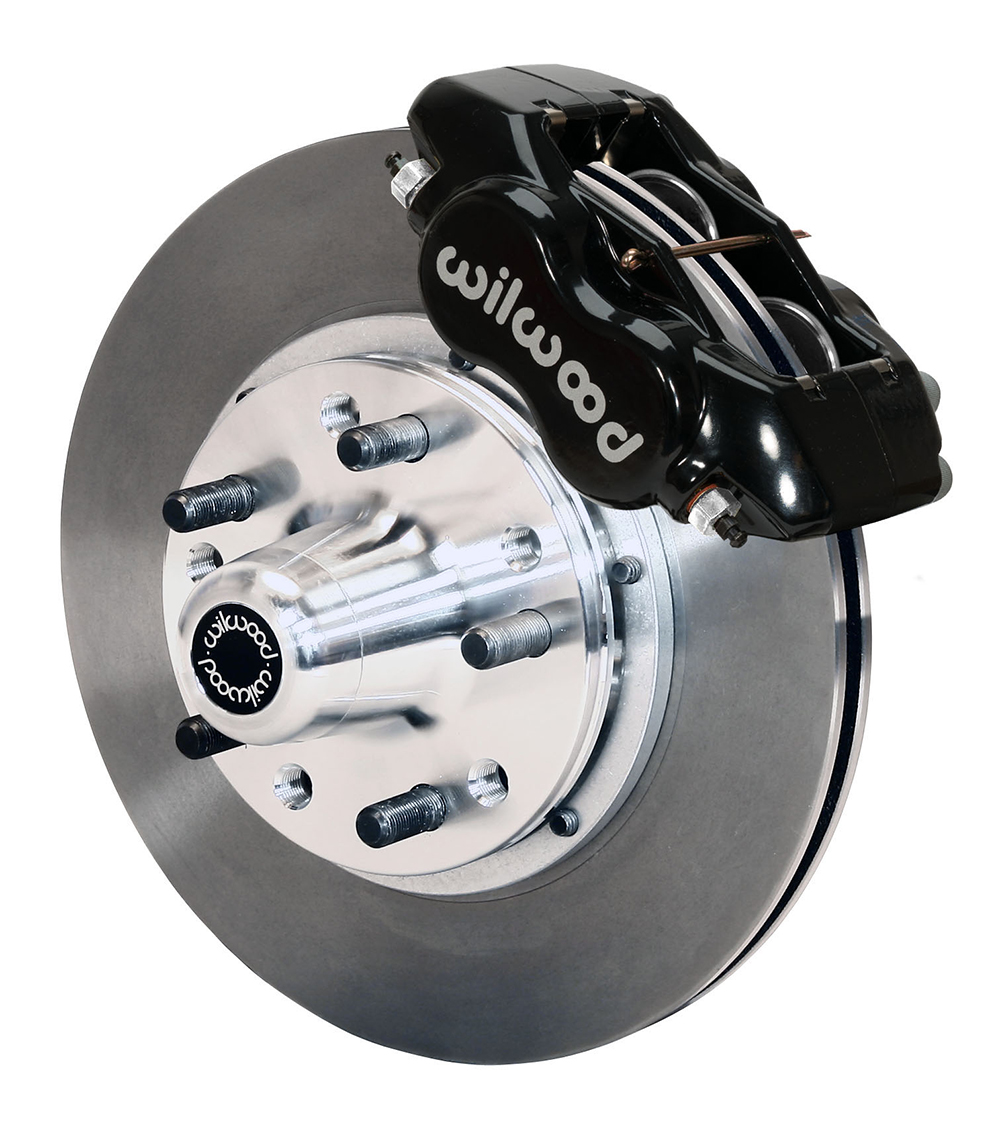

Forged Dynalite Pro Series Front Brake Kit
Prod #: 140-11811
Price: $1,091.21
Front Brake Kit — 140-11811


Kit Contents

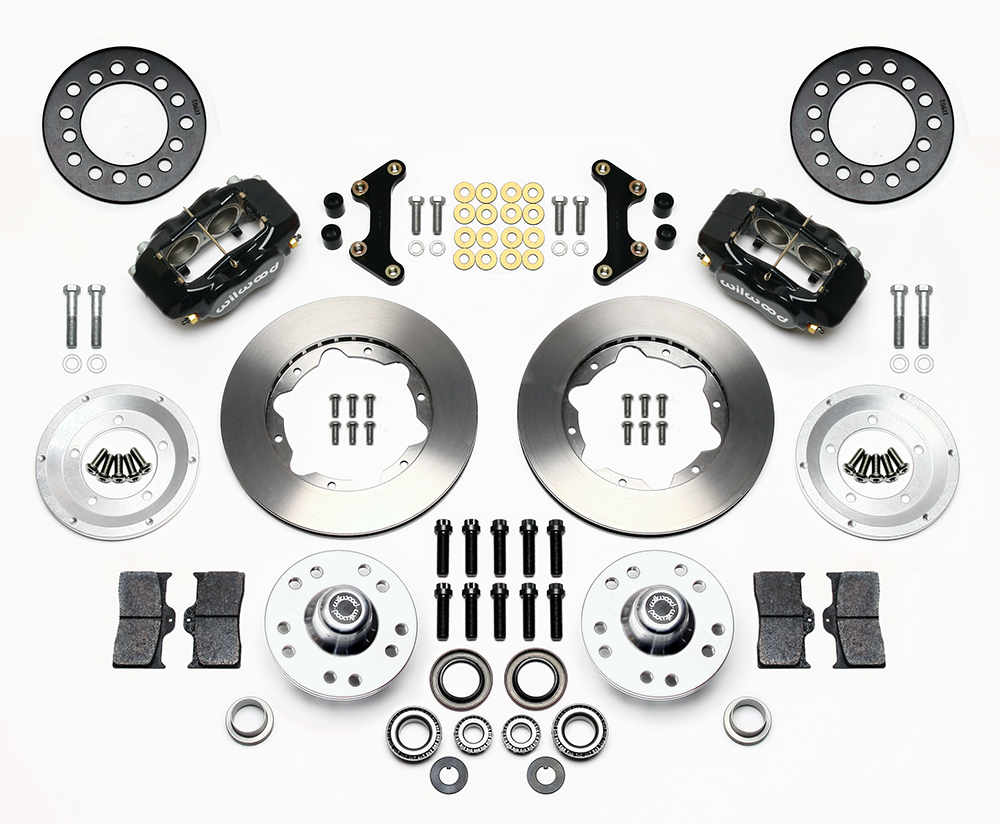

Wilwood Forged Dynalite Pro Series Front Brake Kit Parts Laid Out - Black Powder Coat Caliper - Plain Face Rotor Wilwood Forged Dynalite Pro Series Front Brake Kit Parts Laid Out - Black Powder Coat Caliper - Plain Face Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
OE Hub Offset: +.19
(Increase / Decrease Track Width)
Spindle Type: Factory Drum Spindle
Mount Type: Lug
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 11.00
Min Wheel Diameter Req'd*: 14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545014051

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Dynalite Pro Series Front Brake Kit

FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for OEM drum brake spindle applications for the popular Chevy 1949-1954 Passenger and 1953-1962 Corvette vehicles. Based on the venerable forged billet Dynalite caliper and 11.00” x .81 rotors, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. This kit requires no modifications for installation, and provides plenty of clearance inside most popular 15” wheels. This kit will also work with aftermarket 14” disc brake steel wheels available from other vendors. FDL Pro-Series kits can be used with either manual or power boost master cylinders.


Fitment & Installation Details


Forged Dynalite Pro Series Front Brake Kit Assembly Schematic

Forged Dynalite Pro Series Front Brake Kit Assembly Schematic Forged Dynalite Pro Series Front Brake Kit Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Dynalite Pro Series Front Brake Kit
SPINDLE TYPE:
Factory Drum Spindle ;
This Brake Kit is Compatible with the Following Vehicle Makes: Chevrolet

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF: +.19
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13844-BK
Right Hand - Part No: 120-13844-BK
Type: Forged Dynalite Internal
Finish Color: Black Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.75
Piston Area (In²): 4.80
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Forged Dynalite Internal Caliper - Black Powder Coat Forged Dynalite Internal Caliper - Black Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-5840
Right Hand - Part No: 160-5840
Type: Ultralite HP 30
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 11.00
Width (in): 0.81
Vane Count: 30 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Ultralite HP 30  - Iron - Plain Ultralite HP 30 - Iron - Plain Zoom Image
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No: 270-11813
Type: Hub - Vented Rotor Offset
Material: Aluminum
Finish Color: Bare
Mount Style: Adapter
Bolt Circle 1: 5 x 4.75
Bolt Circle 2: 5 x 5.00
Bolt Circle 3:
Stud Diameter - BC 1: 1/2-20
Stud Diameter - BC 2: 1/2-20
Stud Diameter - BC 3:
Hub - Vented Rotor Offset - Aluminum - Bare Hub - Vented Rotor Offset - Aluminum - Bare Zoom Image

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2655
Replacement Dustboot: N-A
Replacement Piston 1: 200-7528
Replacement Piston 2: 200-7528
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 180-0055
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Front Line Kit:
Front Line Kit:
220-12168
220-8307
Hat
Bolt Kit:
Hub
Bolt Kit:
