Forged Dynalite Big Brake Front Brake Kit (Hat)
Prod #: 140-11704-R
Price: $922.16
Front Brake Kit — 140-11704-R


Kit Contents

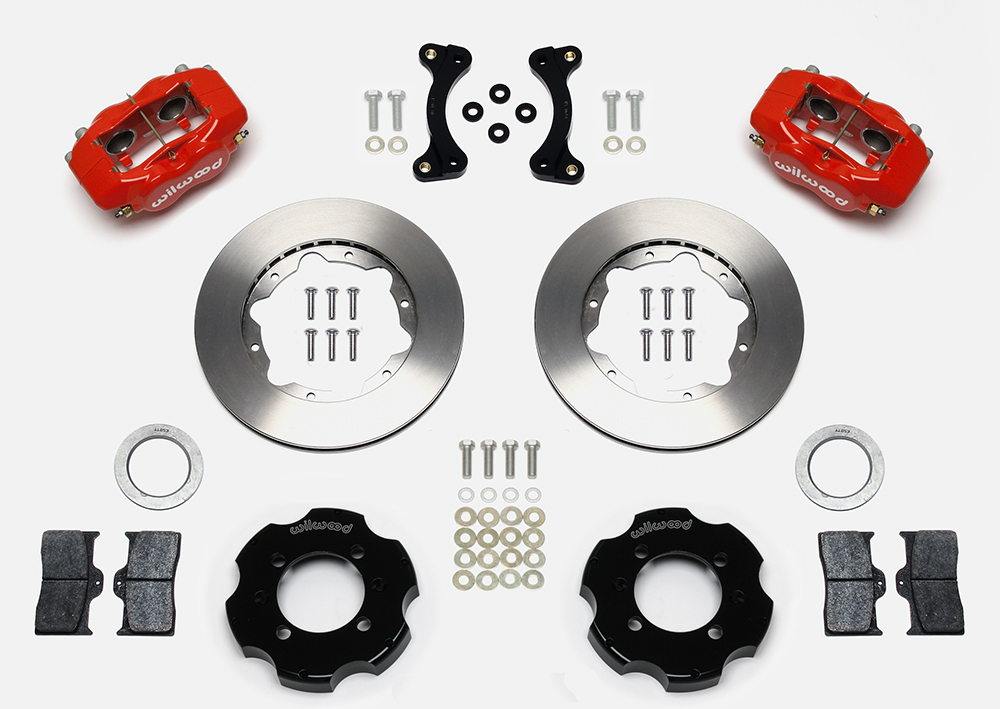

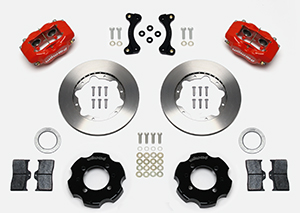

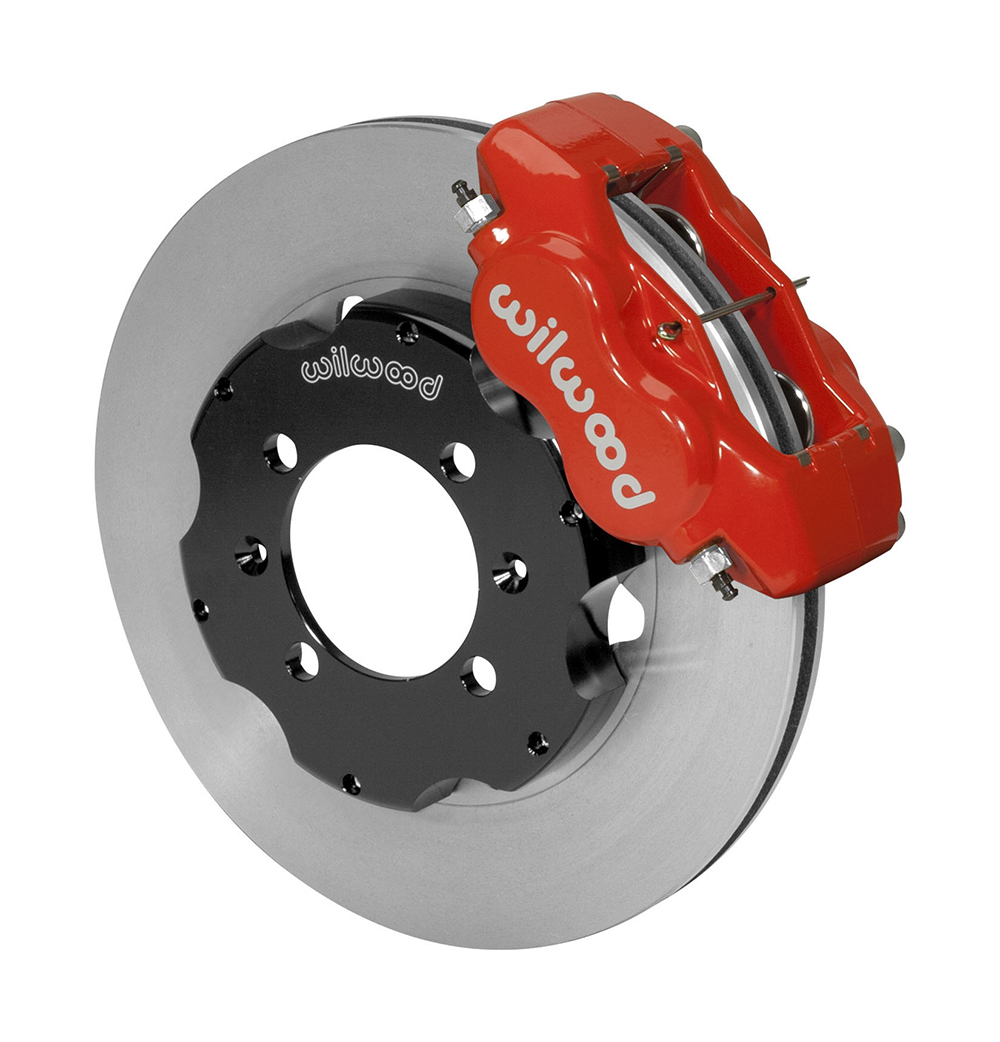

Wilwood Forged Dynalite Big Brake Front Brake Kit (Hat) Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor Wilwood Forged Dynalite Big Brake Front Brake Kit (Hat) Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Lug
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 11.00
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545013863

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Dynalite Big Brake Front Brake Kit (Hat)
