Front Brake Kit – Part No: 140-10920-D

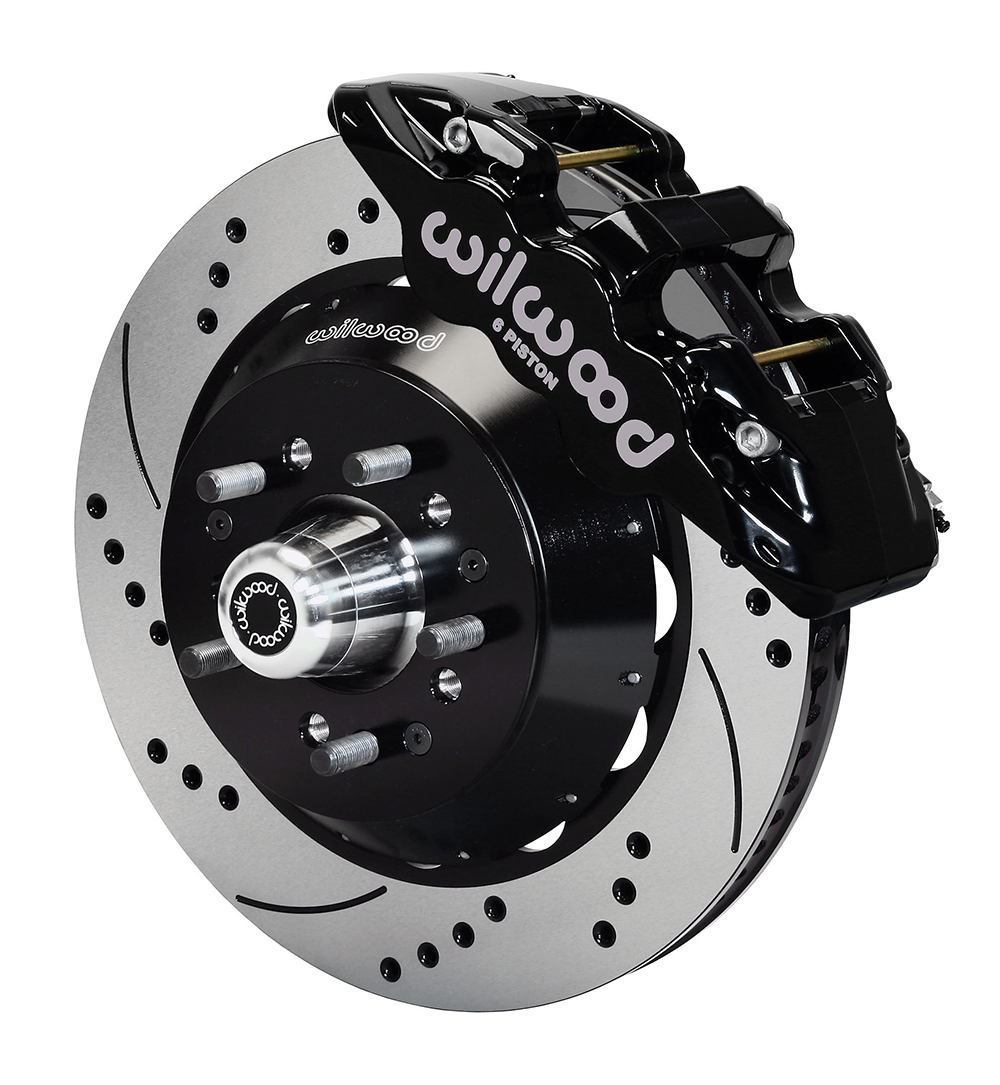

AERO6 Big Brake Front Brake Kit
Prod #:
140-10920-D
Price:
$2,738.73
Available Brake Kit #140-10920 Configurations
Available Brake Kit #140-10920 Configurations
Front Brake Kit — 140-10920-D
|
Kit Contents
|

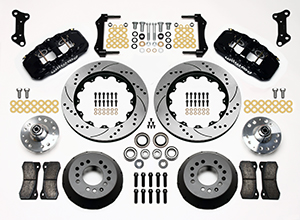

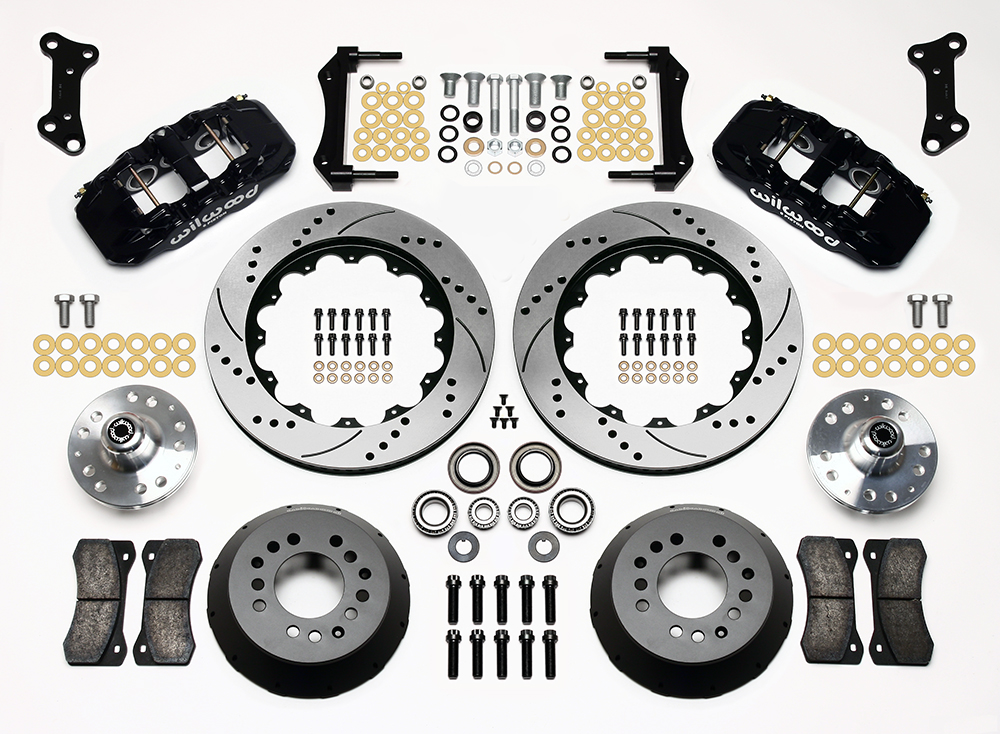

Wilwood AERO6 Big Brake Front Brake Kit Parts Laid Out - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor
Click Image to Close
|
View Custom Caliper Colors
|
|
Kit Summary
|
|
OE Hub Offset:
|
+.38
|
|
(Increase / Decrease Track Width)
|
|
Spindle Type:
|
Drop Spindle
Factory Disc Spindle
Factory Drum Spindle
|
|
Mount Type:
|
Radial
|
|
Caliper Type:
|
6 - Black Powder Coat
|
|
Rotor Diameter:
|
14.00
|
|
Min Wheel Diameter Req'd*:
|
18
|
|
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Wheel Clearance Diagram
|
| UPC Number |
| UPC |
889545010855 |
AERO6 Big Brake Front Brake Kit
AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00” to 14.25”rotors provide maximum cooling for sustained high heat durability.
Fitment & Installation Details
Kit Components & Specifications
|
Calipers
|
|
Left Hand - Part No:
|
120-13290-BK
|
|
Right Hand - Part No:
|
120-13289-BK
|
|
Type:
|
AERO6
|
|
Finish Color:
|
Black Powder Coat
|
|
Piston Count:
|
6
|
|
Piston 1 Bore (in):
|
1.62
|
|
Piston 2 Bore (in):
|
1.12
|
|
Piston 3 Bore (in):
|
1.12
|
|
Piston Area (In²):
|
4.04
|
|
Piston Type:
|
Stainless
|
|
Mount Type:
|
Radial
|
|
Brake Pad Plate:
|
6617
|
|
Brake Pad Area (In²):
|
11.1
|
|
Brake Pad Volume (In³):
|
5.2
|
|
Pad Compound:
|
BP-10
|
AERO6 Caliper - Black Powder Coat
Click Image to Close
|
|
Rotors
|
|
Left Hand - Part No:
|
160-8397-BK
|
|
Right Hand - Part No:
|
160-8396-BK
|
|
Type:
|
SRP Drilled Rotor
|
|
Style:
|
SRP Drilled & Slotted
|
|
Surface Finish:
|
Black Electro Coat
|
|
Material:
|
Spec-37 Iron
|
|
Outside Diameter (in):
|
14.00
|
|
Width (in):
|
1.25
|
|
Vane Count:
|
72 CV
|
|
Design Type:
|
SRP-BLK
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
Yes
|
SRP Drilled Rotor - Spec-37 Iron - Black Electro Coat
Click Image to Close
|
|
Rotor Hats
|
|
Hat - Part No:
|
170-7467
|
|
Type:
|
Big Brake Hat - Flared Bell
|
|
Material:
|
Aluminum
|
|
Finish Color:
|
Black E-Coat
|
|
Hat Offset Dimension (in):
|
1.750
|
|
Bolt Circle 1:
|
5 x 4.50
|
|
Bolt Circle 2:
|
5 x 4.75
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
0.520
|
|
Stud Diameter - BC 2:
|
0.520
|
|
Stud Diameter - BC 3:
|
0.000
|
Big Brake Hat - Flared Bell - Aluminum - Black E-Coat
Click Image to Close
|
|
Hubs
|
|
Hub - Part No:
|
270-7037
|
|
Type:
|
Hub - Hat Mount
|
|
Material:
|
Aluminum
|
|
Finish Color:
|
Bare
|
|
Mount Style:
|
Hat
|
|
Bolt Circle 1:
|
5 x 4.50
|
|
Bolt Circle 2:
|
5 x 4.75
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
1/2-20
|
|
Stud Diameter - BC 2:
|
1/2-20
|
|
Stud Diameter - BC 3:
|
|
Hub - Hat Mount - Aluminum - Bare
Click Image to Close
|
|
*Brake Lines Needed
|
Front Line Kit:
|
220-7056
|
