Front Brake Kit – Part No: 140-10226
W6A Big Brake Front Brake Kit (Race)
Prod #:
140-10226
Price:
$2,794.38
Front Brake Kit — 140-10226
|
Kit Contents
|

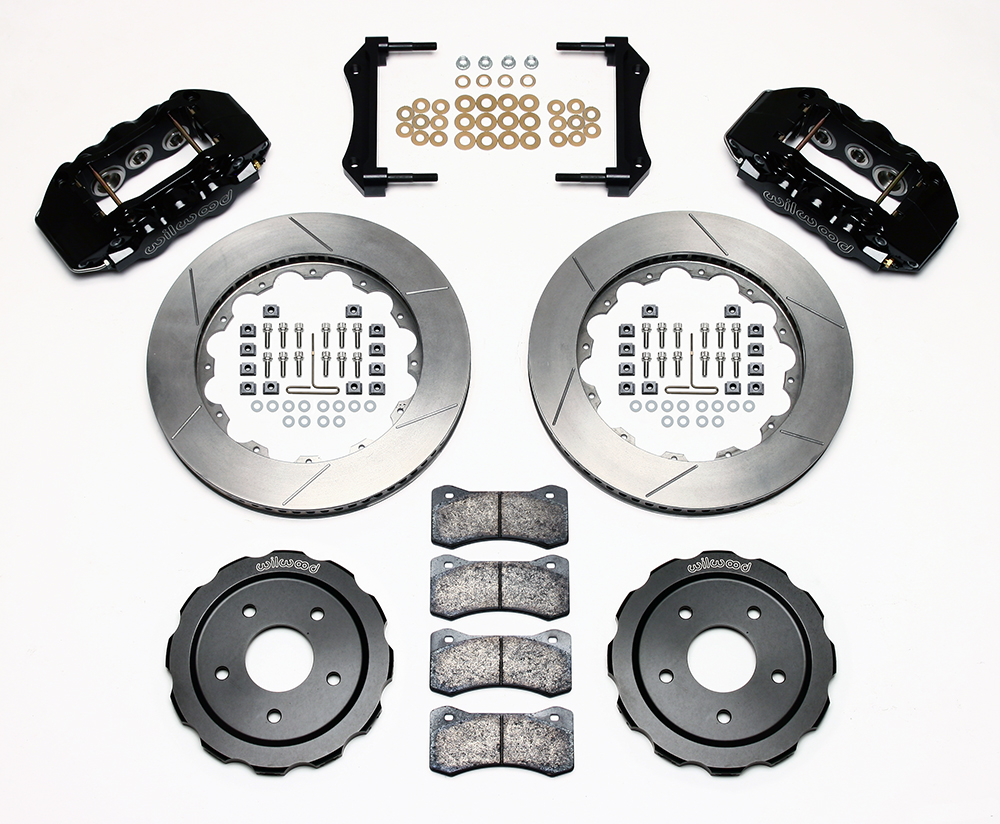

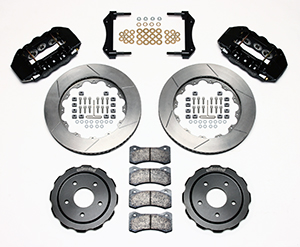

Wilwood W6A Big Brake Front Brake Kit (Race) Parts Laid Out - Black Powder Coat Caliper - GT Slotted Rotor
Click Image to Close
|
|
|
Kit Summary
|
|
|
|
|
|
|
Spindle Type:
|
Drop Spindle
Factory Disc Spindle
|
|
Mount Type:
|
Radial
|
|
Caliper Type:
|
6 - Black Powder Coat
|
|
Rotor Diameter:
|
14.00
|
|
Min Wheel Diameter Req'd*:
|
18
|
|
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Wheel Clearance Diagram
|
| UPC Number |
| UPC |
889545009101 |

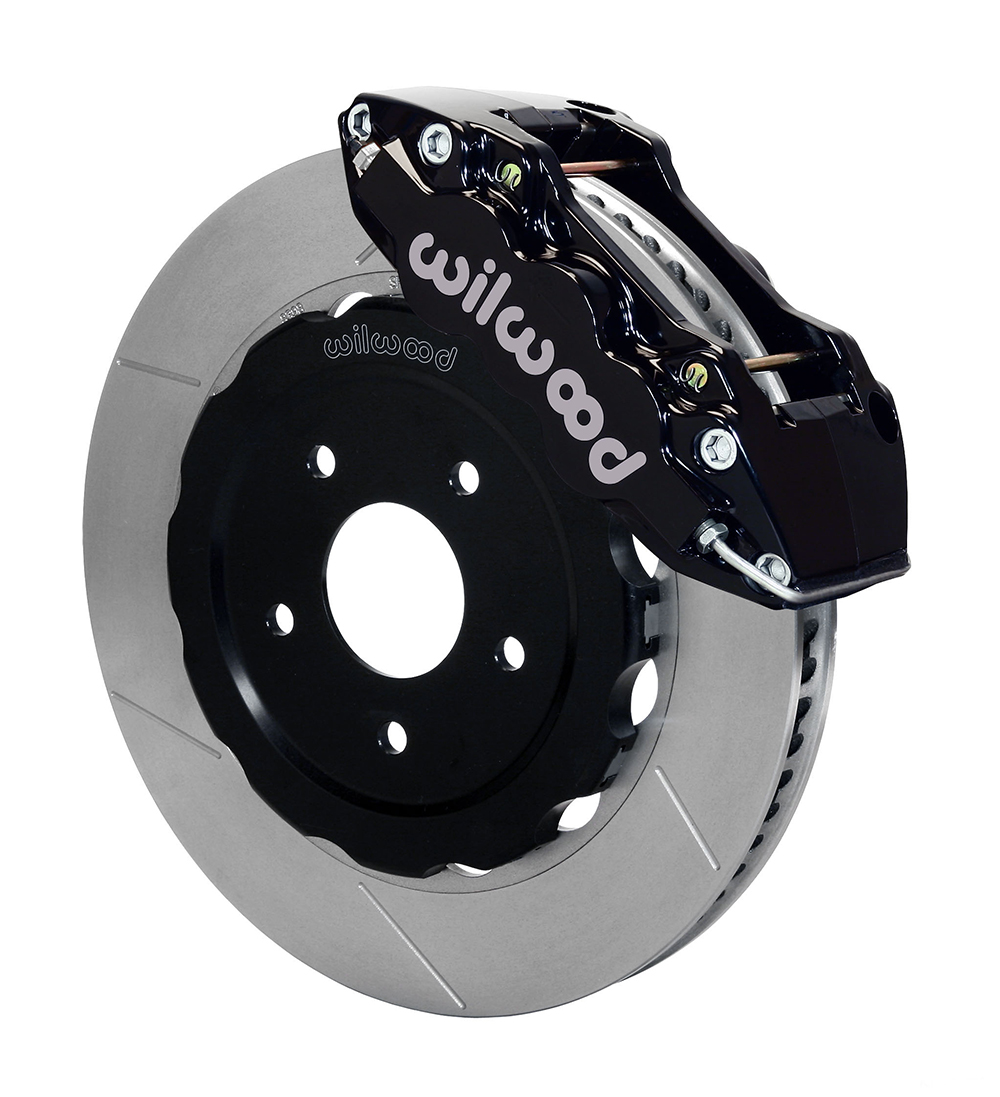

W6A Big Brake Front Brake Kit (Race)
W6AR/ST six piston radial mount calipers are coupled with the high cooling capacity of 14.00” SV-GT staggered directional vane rotors to provide the ultimate brake package for unrestricted road race competition. Thermlock pistons in the calipers resist fade and extend service life by reducing the heat transfer from the pads, caliper body, fluid, and seals. Rotors mount to the hubs with forged aluminum hats and radial mount brackets secure the caliper to the spindle in the OE location without modification. Kits also include high temperature, high friction race compound pads and all premium grade fasteners.
Fitment & Installation Details
Kit Components & Specifications
|
Calipers
|
|
Left Hand - Part No:
|
120-11658-RS
|
|
Right Hand - Part No:
|
120-11657-RS
|
|
Type:
|
W6A
|
|
Finish Color:
|
Black Powder Coat
|
|
Piston Count:
|
6
|
|
Piston 1 Bore (in):
|
1.62
|
|
Piston 2 Bore (in):
|
1.12
|
|
Piston 3 Bore (in):
|
1.12
|
|
Piston Area (In²):
|
4.04
|
|
Piston Type:
|
Thermlock
|
|
Mount Type:
|
Radial
|
|
Brake Pad Plate:
|
6617
|
|
Brake Pad Area (In²):
|
11.1
|
|
Brake Pad Volume (In³):
|
5.2
|
|
Pad Compound:
|
PolyMatrix H
|
W6A Caliper - Black Powder Coat
![]()
Click Image to Close
|
|
Rotors
|
|
Left Hand - Part No:
|
160-8399
|
|
Right Hand - Part No:
|
160-8398
|
|
Type:
|
GT 72 Curved Vane
|
|
Style:
|
GT Slotted
|
|
Surface Finish:
|
Plain
|
|
Material:
|
Spec-37 Iron
|
|
Outside Diameter (in):
|
14.00
|
|
Width (in):
|
1.25
|
|
Vane Count:
|
72 CV
|
|
Design Type:
|
GT
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
Yes
|
GT 72 Curved Vane - Spec-37 Iron - Plain
Click Image to Close
|
|
Rotor Hats
|
|
Hat - Part No:
|
170-11740
|
|
Type:
|
Big Brake Dynamic Hat - Short Offset
|
|
Material:
|
Aluminum
|
|
Finish Color:
|
Black E-Coat
|
|
Hat Offset Dimension (in):
|
0.290
|
|
Bolt Circle 1:
|
5 x 4.75
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
0.520
|
|
Stud Diameter - BC 2:
|
0.000
|
|
Stud Diameter - BC 3:
|
0.000
|
Big Brake Dynamic Hat - Short Offset - Aluminum - Black E-Coat
Click Image to Close
|
|
Hubs
|
|
Hub - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Mount Style:
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
