SRP Rotors – Part No: 160-9812-bk
Call (805) 388-1188

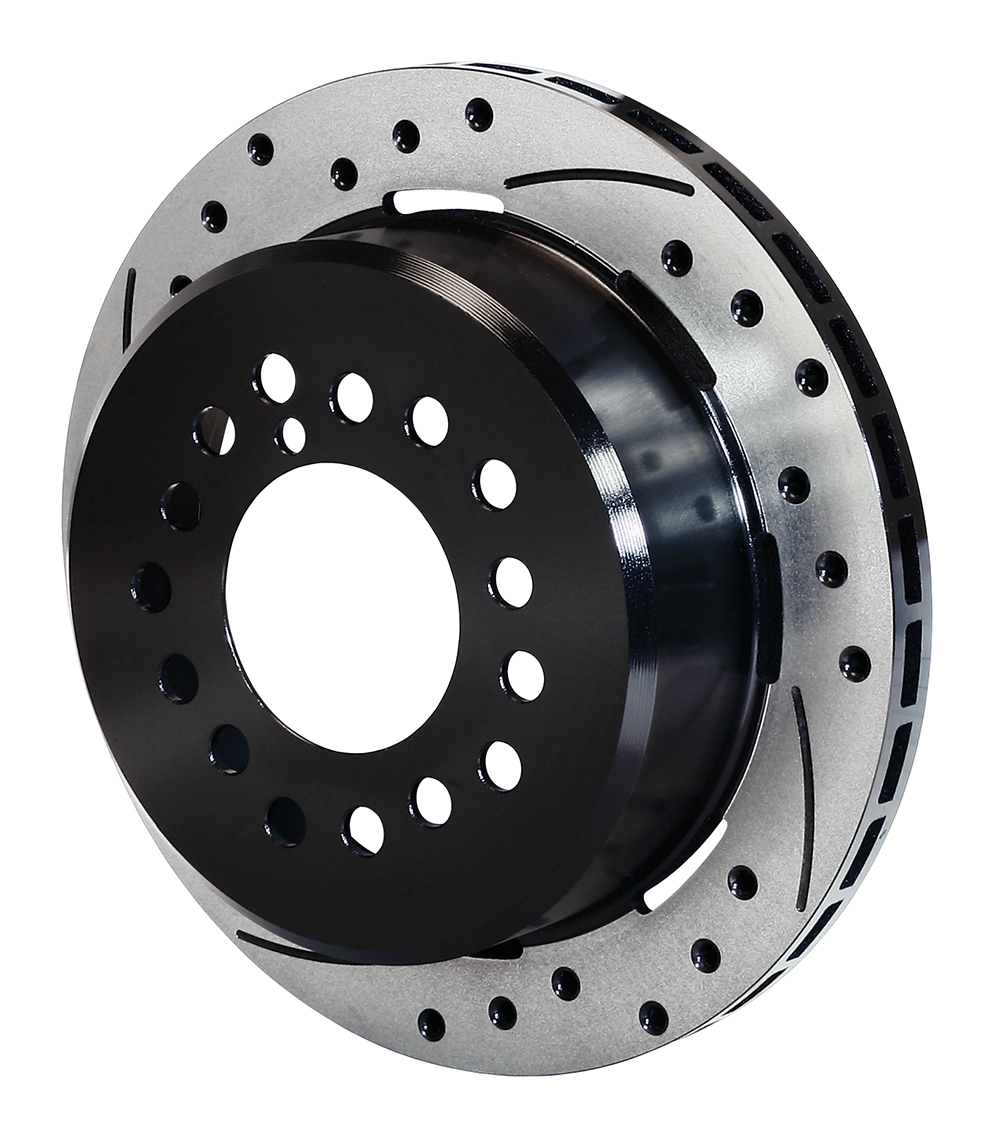

SRP Drilled Performance Rotor & Hat
Prod #: 160-9812-BK
Price: $327.36
SRP Drilled Performance Rotor & Hat – Product Summary
Rotor No: 160-9812-bk

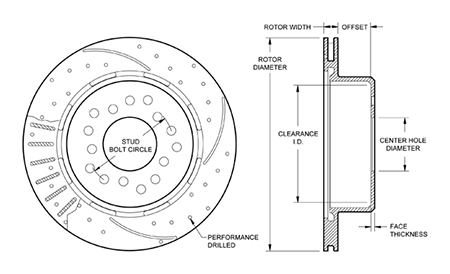

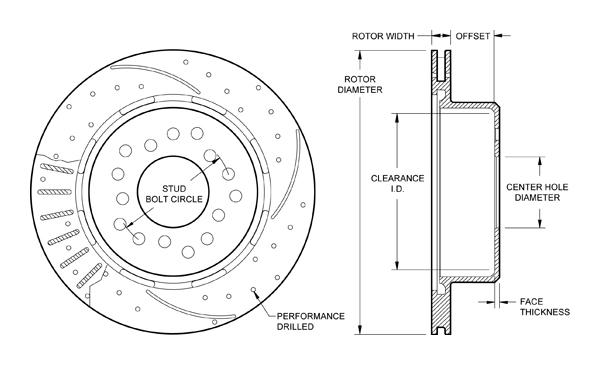

Rotor Dimension Diagram
SRP Drilled Performance Rotor & Hat Dimension Diagram SRP Drilled Performance Rotor & Hat Dimension Diagram Zoom Image

Rotor Dimensions
Width (in) 0.81
Diameter (in) 12.19
Mount Side R/H
Rotor Design
Material Iron
Vane Count 32 V
Weight(Lbs) 14.40
Rotor Style & Finish
Type SRP-BLK
Style SRP Drilled & Slotted
Surface Finish Black Electro Coat
Rotor Upgrades
Bedded No
Balanced No
UPC Number
UPC 889545041026
160-9812-bk – Product Description

SRP Drilled Performance Rotor & Hat

For custom, show and high performance sport driving, SRP rotors offer the high tech look and improved performance of a directional cross-drill and face slot pattern. In addition to the aesthetic appeal, the venting and cleaning action of the hole and slot pattern helps to reduce pad glaze and minimize irregular pad build-up on the rotor faces. The results are a smoother engagement feel at the pedal and consistent response from the pads. Each rotor is precision machined to less than .001 tolerance for overall flatness, parallelism, and radial run-out on long grain carbon iron castings. The rotors are finished with a black electro coat to provide corrosion resistance.


Performance Characteristics
• Rear brake rotor for disc/drum internal parking brake kits.
• New! Rotor has been updated to new 3.06R register and will allow use of register ring adapters.
• Ring adapters are available in sizes from 2.00” to 2.86”. See catalog for part numbers.


Vehicle Applications
Driving Environment Street Rods
Vehicle Sub-Types
Application Duty Heavy Duty
Driving Environment Street Performance
Vehicle Sub-Types Domestic
Application Duty Heavy Duty
Driving Environment Street Performance
Vehicle Sub-Types Import
Application Duty Heavy Duty
Driving Environment Rally
Vehicle Sub-Types
Application Duty Light Duty
Driving Environment Road Race
Vehicle Sub-Types
Application Duty Medium Duty
Driving Environment Off Road
Vehicle Sub-Types
Application Duty Medium Duty
Driving Environment Industrial
Vehicle Sub-Types
Application Duty Medium Duty

Additional Rotor Dimensions

Rotor Bolt Circle (in)
Rotor Mount Hole Size (in)
Lug ID / Registration (in) 3.06
Far Side Inside Diameter (in) 8.38
Offset Dimension (in) 1.910

Shoe Inside Dimension (in) 7.24
Clearance Inside Diameter (in) 7.16
Wheel Bolt Circle (in 5 x 4.50/4.75/5.00
Stud Diameter (in) 0.52
Face Thickness (in) 0.18
