OE Performance SRP Rotors – Part No: 162-18305-GTB
OE Performance Front GTB Rotor & Hat
Prod #:
162-18305-GTB
Price:
$352.46
Available Rotor #162-18305 Configurations
Available Rotor #162-18305 Configurations
OE Performance Front GTB Rotor & Hat – Product Summary
|
Rotor Dimension Diagram
|
OE Performance Front GTB Rotor & Hat Dimension Diagram
![]()
Click Image to Close
|
| Rotor Dimensions |
| Width (in) |
1.26 |
| Diameter (in) |
13.38 |
| Mount Side |
Non_Direct |
| Rotor Design |
| Material |
Iron |
| Vane Count |
Vented |
| Weight(Lbs) |
23.10 |
| Rotor Style & Finish |
| Type |
GT-BLK |
| Style |
SRP Drilled & Slotted |
| Surface Finish |
Black Electro Coat |
| Rotor Upgrades |
| Burnished |
No |
| Balanced |
No |
162-18305-GTB – Product Description

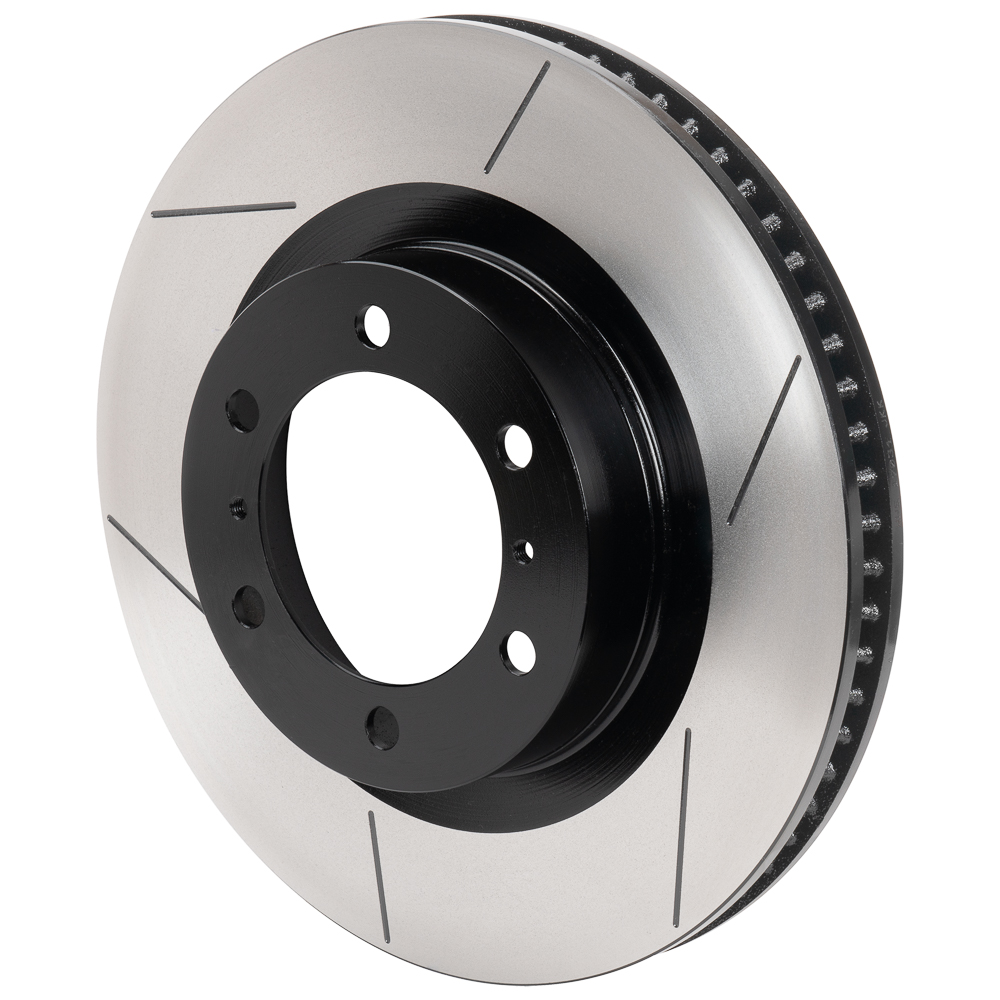

OE Performance Front GTB Rotor & Hat
Wilwood’s OEM Performance Rotor and Hat assemblies. These rotors were designed utilizing the latest developments in iron formulation technology using our proprietary blend ferrous alloy to bring you the strongest, lightweight, most dependable rotor available in the marketplace. The rotors are new castings, not reworked parts and our tolerances are held to the high standards you have come to expect from Wilwood Engineering. Rotors are available as left-hand and right-hand units, drilled & grooved in our directional SRP pattern, the finished in a black e-coat protective coating.
|
Performance Characteristics
|
• TOYOTA TACOMA,2024-2025-Front
|
Additional Rotor Dimensions
| Rotor Bolt Circle (in) |
|
| Rotor Mount Hole Size (in) |
|
| Lug ID / Registration (in) |
3.82 |
| Far Side Inside Diameter (in) |
9.14 |
| Offset Dimension (in) |
1.777 |
| Shoe Inside Dimension (in) |
|
| Clearance Inside Diameter (in) |
7.65 |
| Wheel Bolt Circle (in |
6 x 5.50 |
| Stud Diameter (in) |
0.65 |
| Face Thickness (in) |
0.26 |
