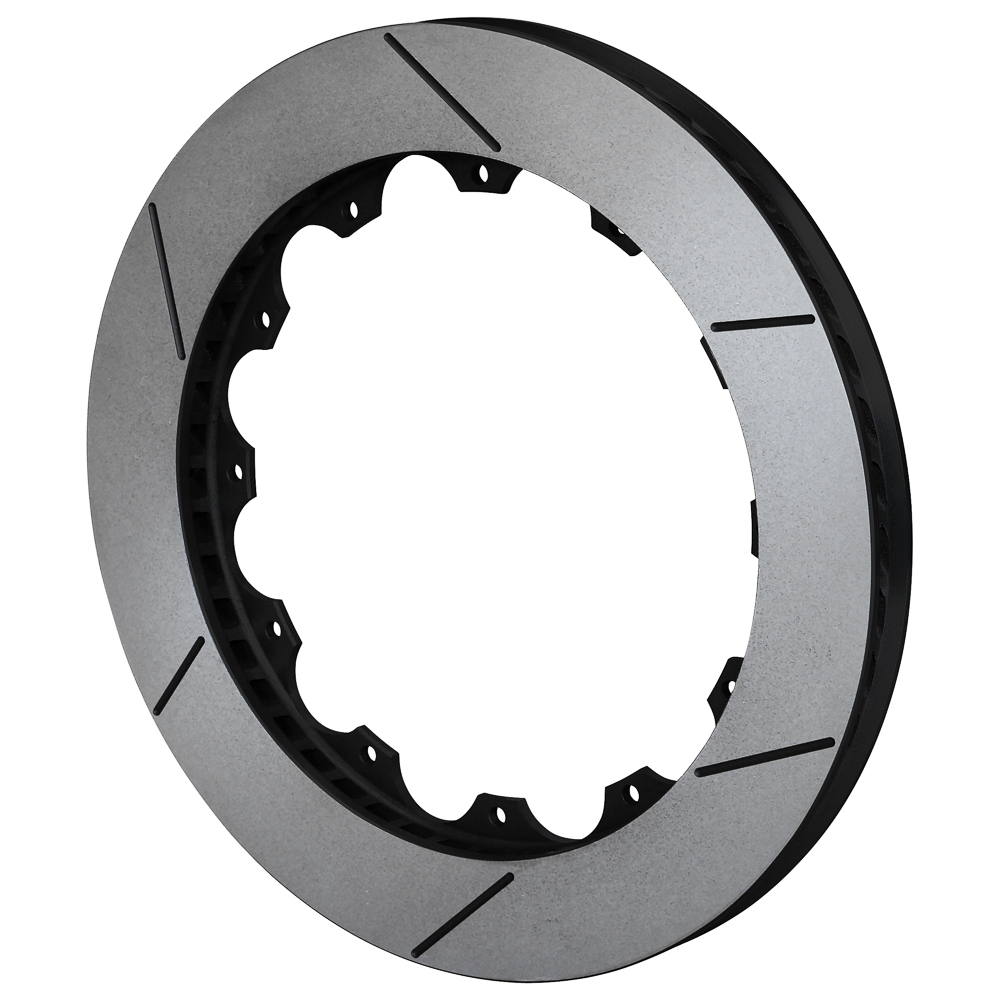

GT 48 Curved Vane Rotor
Prod #: 160-13357-GTB
Price: $389.71
GT 48 Curved Vane Rotor – Product Summary
Rotor No: 160-13357-GTB

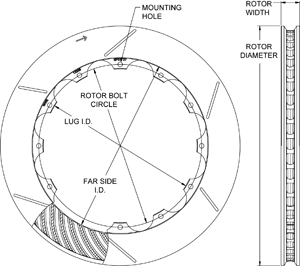

Rotor Dimension Diagram
GT 48 Curved Vane Rotor Dimension Diagram GT 48 Curved Vane Rotor Dimension Diagram Zoom Image

Rotor Dimensions
Width (in) 1.00
Diameter (in) 12.88
Mount Side L/H
Rotor Design
Material Spec-37 Iron
Vane Count 48 CV
Weight(Lbs) 10.50
Rotor Style & Finish
Type GT-BLK
Style GT Slotted
Surface Finish Black Electro Coat
Rotor Upgrades
Bedded No
Balanced Yes
UPC Number
UPC 889545118698
160-13357-GTB – Product Description

GT 48 Curved Vane Rotor

GT-48 curved vane rotors are built for the extreme conditions of professional motorsports. The superior heat absorption and dissipation characteristics of these heavy wall directional vane rotors are the keys to preventing heat fade and realizing long service life from the rotors and pads. All rotors are cast from premium grade, long grain carbon iron for long wear, thermal stability, and resistance to distortion. Every GT rotor is fully detail machined to eliminate stress points and unnecessary weight away from the pad sweep face. The faces and O.D. are precision turned to less than .001" for flatness, parallelism, and run-out. An asymmetrical face slot pattern provides smoother engagement through reduced harmonics and improved thermal balance between the I.D. and O.D. of the rotor. Every rotor is then individually dynamic balanced to provide vibration free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.


Performance Characteristics
• Premium grade, Spec-37 Castings.





Additional Rotor Dimensions

Rotor Bolt Circle (in) 12 x 8.75
Rotor Mount Hole Size (in) 0.251
Lug ID / Registration (in) 8.25
Far Side Inside Diameter (in) 9.46
Offset Dimension (in)

Shoe Inside Dimension (in)
Clearance Inside Diameter (in)
Wheel Bolt Circle (in
Stud Diameter (in)
Face Thickness (in)
