MasterCylinder No: 260-3501

Call (805) 388-1188

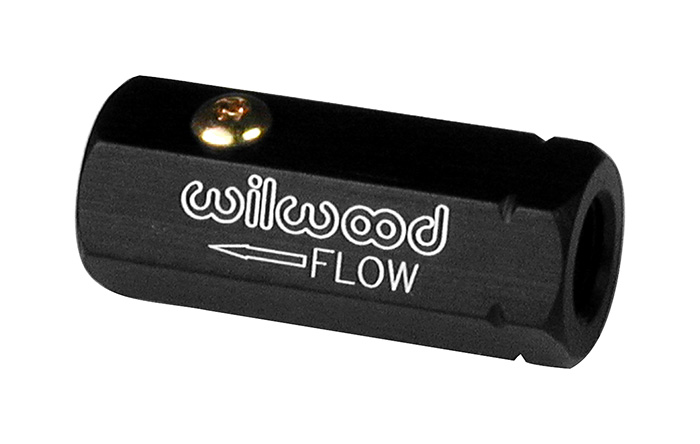

Self Bleed Check Valve
Prod #: 260-3501
Price: $68.94

Master Cylinder Dimensions
Bore Size
Area (in²)
Stroke
Volume (cu in)
Master Cylinder Description
Type
Outlets
Material Aluminum
Finish Black Anodize
Reservoir
Res Type
Res Size (oz)
Res Size(cu in)
Rate
Product Documents
Product Data Sheet


Click To Download

Self Bleed Check Valve - Product Summary

Wilwood Check Valves, or Flow Control Valves are used in conjunction with our caliper Self Bleed Lines. Together they form a closed loop brake fluid system that allows small amounts of brake fluid to circulate every time the brake pedal is depressed, thereby eliminating the possibility of localized fluid boiling and build-up of gases within the brake fluid. Gases end up being vented back into the master cylinder reservoir rather than trapped within the caliper and brake lines. Our Check Valve accepts standard 1/8-27 NPT fittings. For plumbing instructions request Wilwood’s Data Sheet, DS-213.

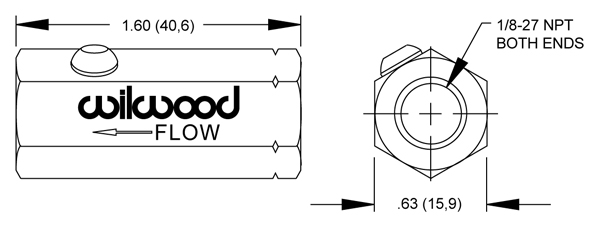

Master Cylinder Dimensions

Additional Dimensions
Overall Length(in)
Flange to End Length (in)
Inlet Size (in) 1/8-27 NPT
Inlet Fit (in)
Outlet Size 1 (in) 1/8-27 NPT
Outlet Fit 1 (in)
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
