MasterCylinder No: 260-13190

Call (805) 388-1188
Proportioning Valve
Prod #: 260-13190
Price: $127.50

Master Cylinder Dimensions
Bore Size
Area (in²)
Stroke
Volume (cu in)
Master Cylinder Description
Type
Outlets
Material Aluminum / Steel
Finish Clear Anodize / Black E-coat
Reservoir
Res Type
Res Size (oz)
Res Size(cu in)
Rate 0 to 57%
Product Documents
Product Data Sheet


Click To Download

Proportioning Valve - Product Summary

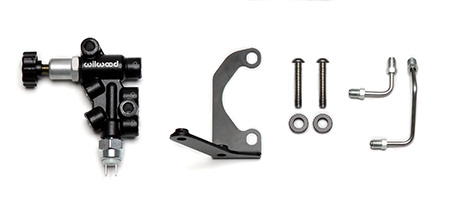

Wilwood finally has an elegant answer to the question, “Where do I mount my Combination Proportioning Valve?” with their new Mounting Bracket Kit. • Specifically designed to work in conjunction with Wilwood Aluminum Tandem Master Cylinders (P/N’s 260-8555, 260-8556, 260-9439, 260-12900 or 260-13375), in manual or boosted system applications. Kit includes: • Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. • Stainless steel button head fasteners thread into the black e-coated L/H bracket for a simple installation and years of durable, rust-free performance. This complete Mounting Bracket Kit includes all the mounting hardware, plus a Combination Proportioning Valve, 260-11179.

Master Cylinder Dimensions

Additional Dimensions
Overall Length(in)
Flange to End Length (in)
Inlet Size (in) 3/8-24 IF
Inlet Fit (in) 3/8-24 IF
Outlet Size 1 (in) 3/8-24 IF
Outlet Fit 1 (in) 3/8-24 IF
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
