Bracket Kit, Disc/Drum - FNSLR
Prod #: 249-17537/38
Price: $173.92

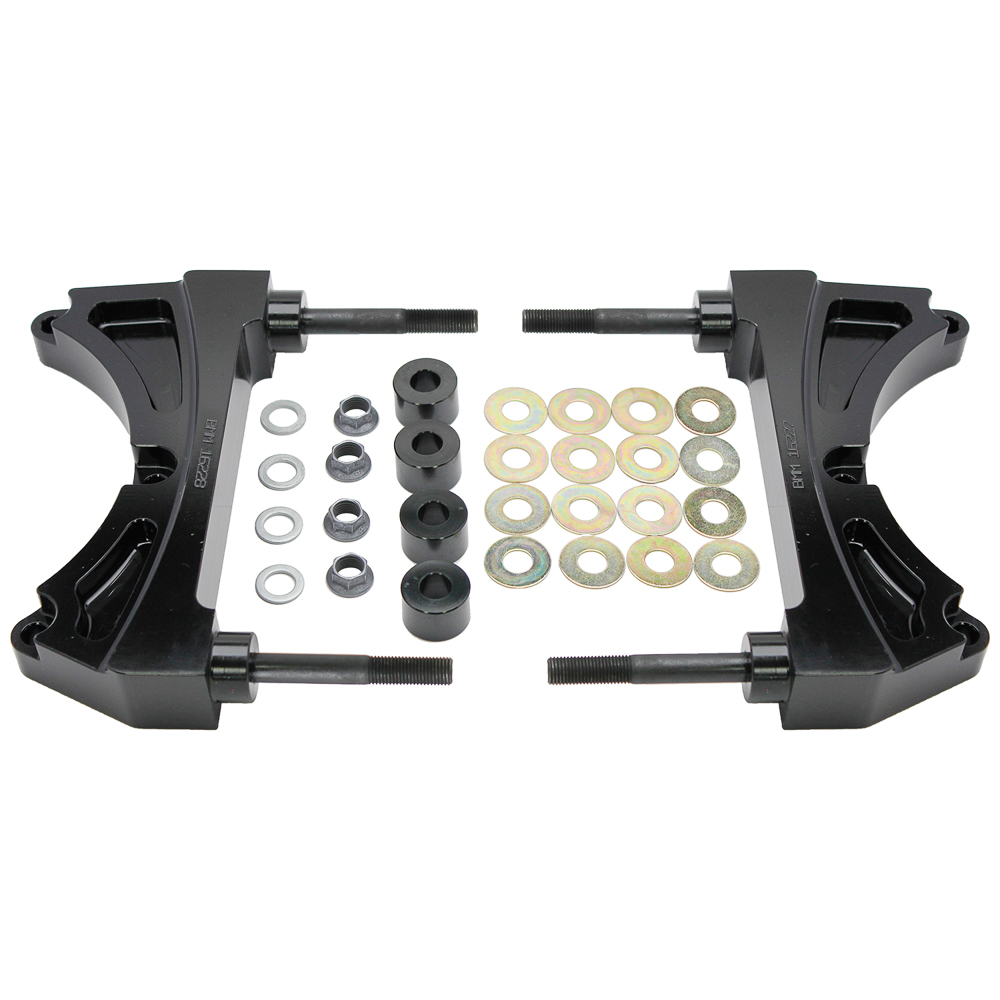

Wilwood Bracket Kit, Disc/Drum - FNSLR Wilwood Bracket Kit, Disc/Drum - FNSLR Zoom Image

Bracket Kit

Bracket kit for Wilwood’s Disc/Drum Parking Brake kits. Bracket assembly includes an additional lug mount caliper bracket with 5.98” mount centers for FNSLR Calipers. Optimized by part number for 12.88 to 14.00” diameter rotors. Contains parking brake shoes and internal hardware



Bracket Kit, Disc/Drum - FNSLR Description
Type Bracket Kit, Disc/Drum - FNSLR
Material Aluminum
Finish
Weight (oz) 3.130
Packet Qty Pair
Mount Info
Mount Side L/H & R/H
Mount Type Radial
UPC Number
UPC 889545114287
Notes
Desc 1 BRACKET KIT,DISC/DRUM,CALIPER MT,FNSLR
Desc 2 14.00 ROTOR
Cautionary Info

Product Data Sheets
Data Sheet

Bracket Kit, Disc/Drum - FNSLR Dimensions

Drawing Drawing
Dimensions
Dim Mount Center 5.98
Thread Size 3/8-24
Stud No 230-9079
Dim Rotor Dia (in) 14.00
Additional Notes


All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
