Bracket Kit, Caliper Mount, Disc/Drum
Prod #: 249-16335/36
Price: $158.92

Wilwood Bracket Kit, Caliper Mount, Disc/Drum Wilwood Bracket Kit, Caliper Mount, Disc/Drum Zoom Image

Bracket Kit

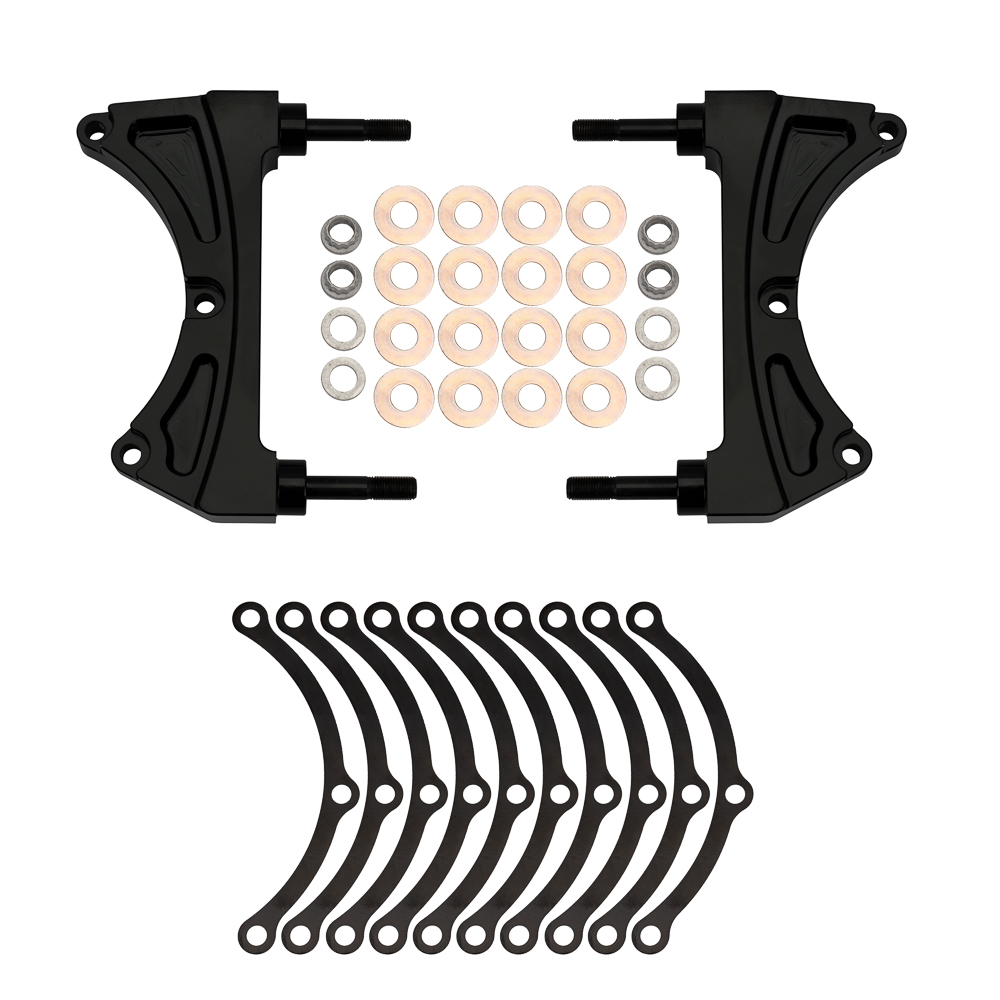

Caliper Bracket Mount kit, Radial mount for FNSL4R series of calipers on 5.98” radial mount centers. Made from high strength aluminum alloy and contains caliper mounting hardware. Designed for use with Wilwood’s Disc/Drum kits and optimized for 13.00” diameter rotor use.



Bracket Kit, Caliper Mount, Disc/Drum Description
Type Bracket Kit, Caliper Mount, Disc/Drum
Material Aluminum
Finish
Weight (oz) 2.950
Packet Qty Pair
Mount Info
Mount Side L/H & R/H
Mount Type Radial
UPC Number
UPC 889545099485
Notes
Desc 1 BRACKET KIT,DISC/DRUM,CALIPER MT,FNSLR
Desc 2 12.88 ROTOR
Cautionary Info

Product Data Sheets
Data Sheet

Bracket Kit, Caliper Mount, Disc/Drum Dimensions

Drawing Drawing
Dimensions
Dim Mount Center 5.98
Thread Size 3/8-24
Stud No 230-9078
Dim Rotor Dia (in) 12.88
Additional Notes
