Washer-Belleville - 240-15032

Call (805) 388-1188
Washer-Belleville
Prod #: 240-15032
Price: $2.23

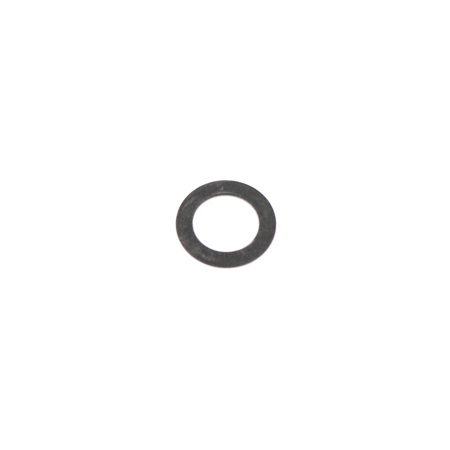

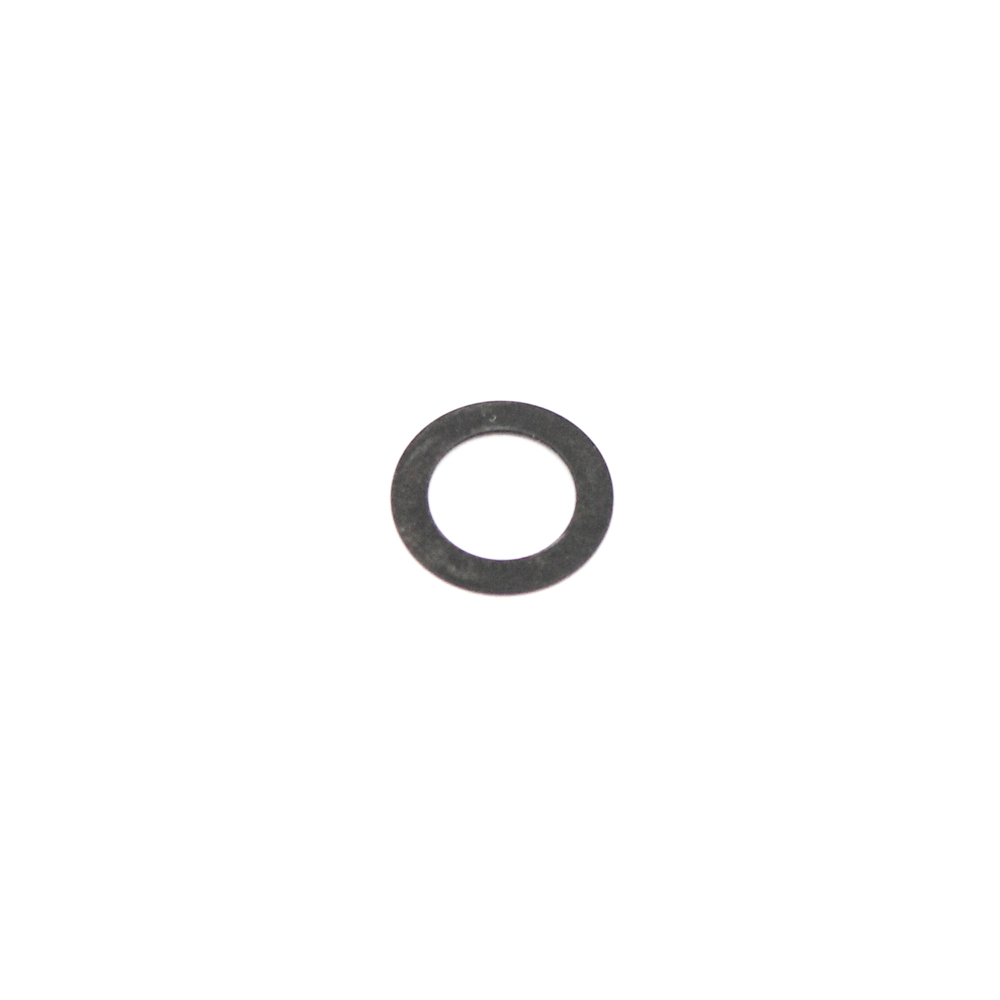

Wilwood Washer-Belleville Wilwood Washer-Belleville Zoom Image

Washers

Wilwood’s Washers are manufactured from high strength alloy steel or stainless steel and plated with an anti-corrosion finish or treatments.



Washer-Belleville Description
Type Washer-Belleville
Material Alloy Steel
Grade
Finish
Weight (oz) 0.001
Bolt Qty 1
Shape
Head Type
Drive Type
Length
Thread
Washer Belleville
UPC Number
UPC 889545073997
Notes
Desc 1 WASHER,BELLEVILLE,.319 IDx.492 ODx.0196
Desc 2 HIGH CARBON STEEL,#3 FOR BALL BEARING
Cautionary Info

Product Data Sheets
Data Sheet

Washer-Belleville Dimensions

Drawing Drawing
Dimensions
Thread Size
Outside Dia (in) 0.492
Inside Dia (in) 0.319
Thickness Dia (in) 0.019
Nut Type
Lock Wire Drilled
Additional Notes
