Stud-Double Ended
Prod #: 230-9621
Price: $6.85

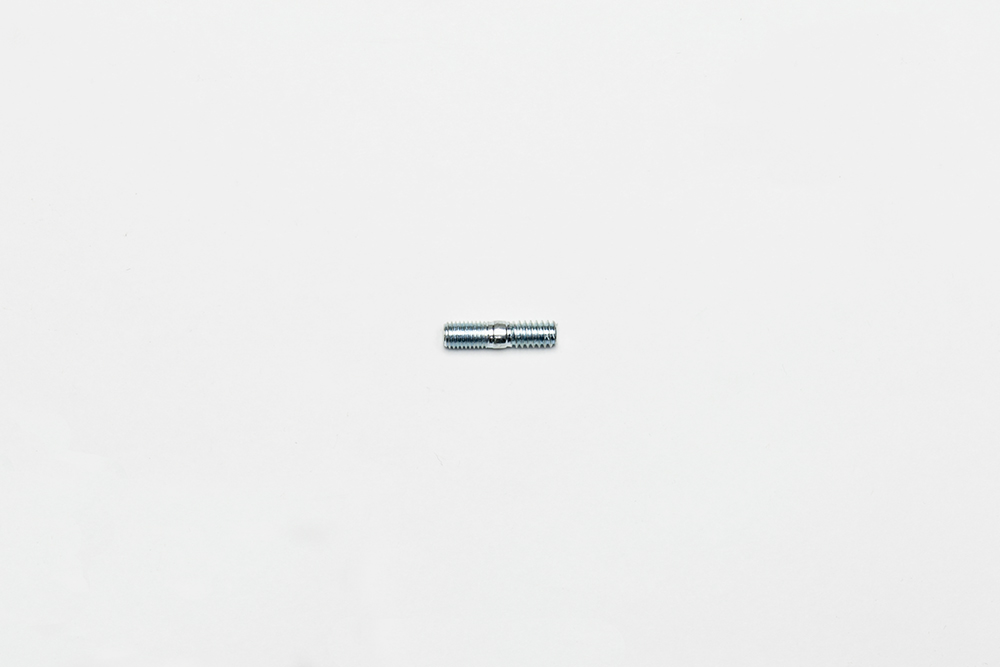

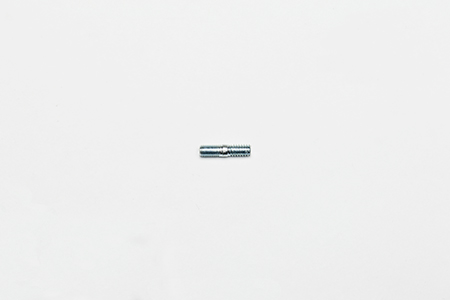

Wilwood Stud-Double Ended Wilwood Stud-Double Ended Zoom Image

Studs

Alloy Steel Double Ended Studs. Plated for corrosion resistance.



Stud-Double Ended Description
Type Stud-Double Ended
Material Alloy Steel
Grade Grade 5
Finish
Weight (oz) 0.008
Bolt Qty 1
Shape
Head Type
Drive Type
Length 1.000
Thread 1/4-20 x 1/4-28
Washer
UPC Number
UPC 889545057898
Notes
Desc 1 STUD,1/4-28.375 THD,1/4-20x.437 THD,1in.
Desc 2 OAL,GR5,ZINC
Cautionary Info

Product Data Sheets
Data Sheet

Stud-Double Ended Dimensions

Drawing Drawing
Dimensions
Thread Size 1/4-20 x 1/4-28
Outside Dia (in)
Inside Dia (in)
Thickness Dia (in)
Nut Type
Lock Wire Drilled
Additional Notes
