Bolt-Low Head - 230-3561

Call (805) 388-1188
Bolt-Low Head
Prod #: 230-3561
Price: $0.85

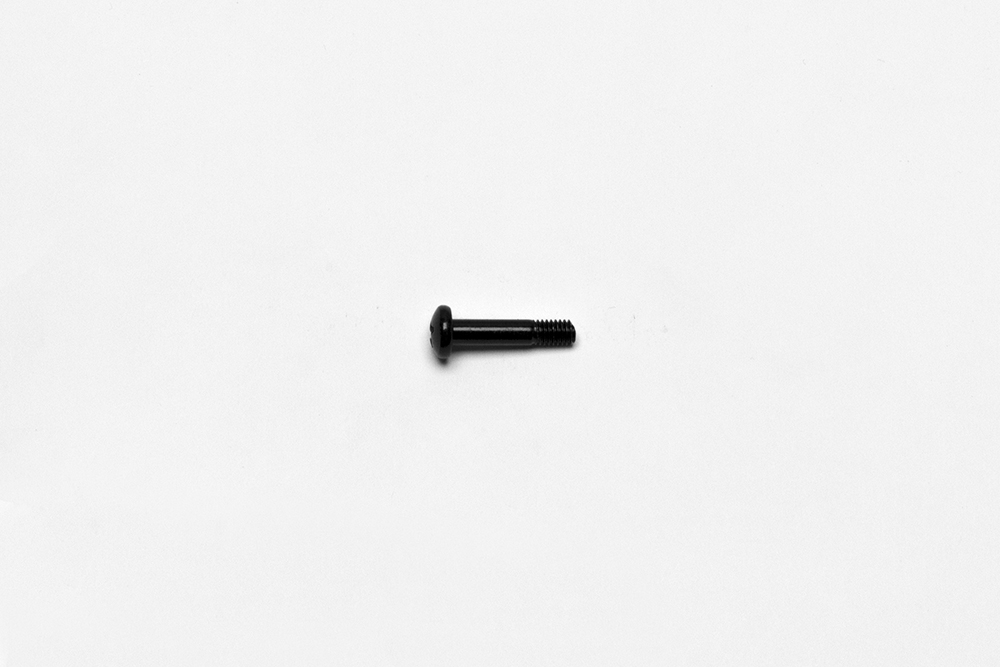

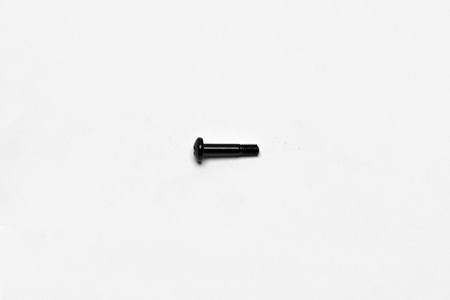

Wilwood Bolt-Low Head Wilwood Bolt-Low Head Zoom Image

Bolts

Wilwood’s Low Head Cap Screws are manufactured from high strength alloy steel. Various plating methods are used depending on application.



Bolt-Low Head Description
Type Bolt-Low Head
Material Alloy Steel
Grade 8.8
Finish
Weight (oz) 0.018
Bolt Qty 1
Shape
Head Type Low Head
Drive Type Phillips
Length 28mm
Thread M6-1.00
Washer
UPC Number
UPC 889545055535
Notes
Desc 1 BOLT,M6-1.0x28mm LG,FIL HD,PHIL,8.8
Desc 2
Cautionary Info

Product Data Sheets
Data Sheet

Bolt-Low Head Dimensions

Drawing Drawing
Dimensions
Thread Size M6-1.00
Outside Dia (in)
Inside Dia (in)
Thickness Dia (in)
Nut Type
Lock Wire Drilled N
Additional Notes
